Created for the ones who dare to win! Be Game!
INTRODUCTION
The RGB series adopted an excellent Gold circuit efficiency scheme that has passed the 80PLUS Gold certification.

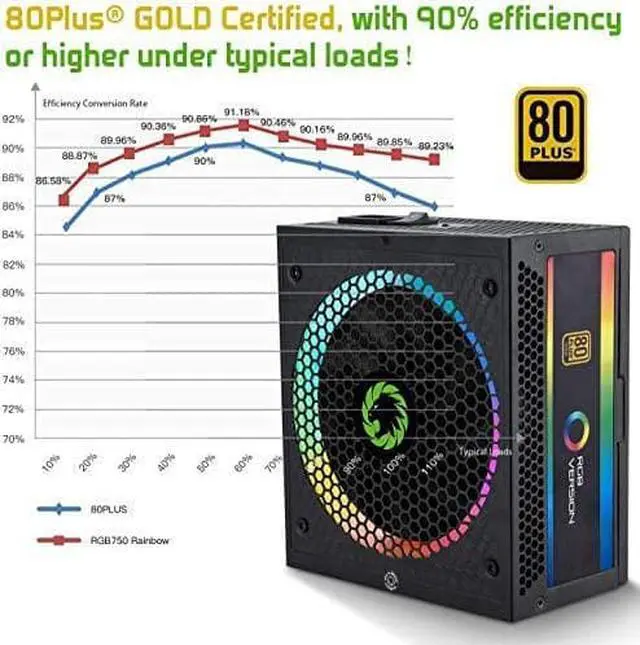

It can effectively reduce power consumption, and the conversion efficiency can reach over 90% under typical load to satisfying gamers with high requirements for gaming performance and multitasking.?

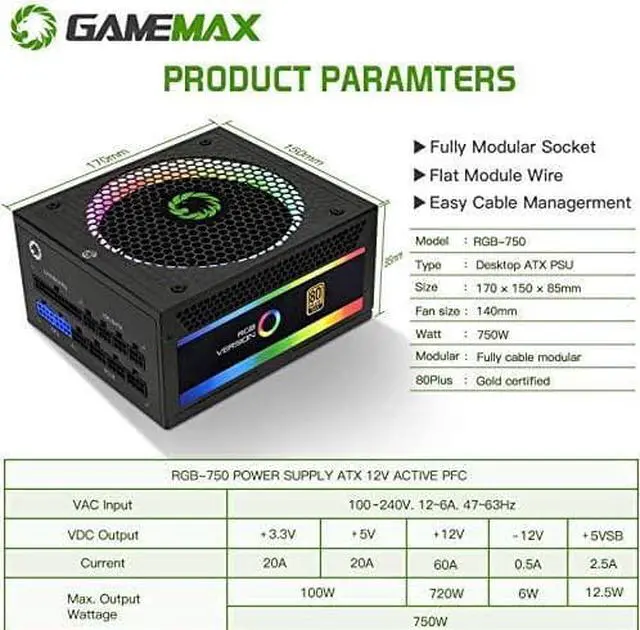

PARAMETERS
Model RGB-0750
Type ATX PSUSize 170 × 150 × 85 mm
Fan size 140mm
Watt 750W

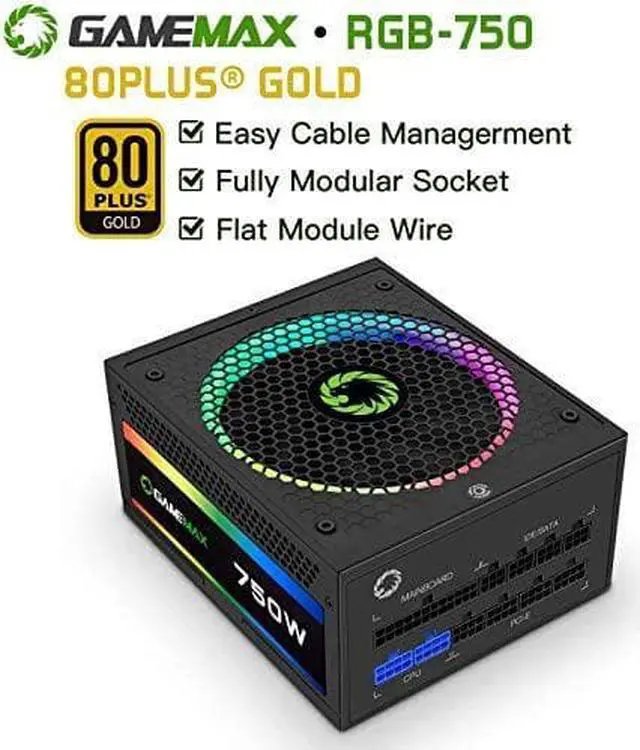

Modular Full Modular
80Plus Gold certified
Strong Compatibility
Compatibility Compatible with ATX 12V 2.3.1, EPS 12V 2.92
2 X 8 (6+2)PIN PCI-E connectors meet the requirements of high-end graphics cards.
Aesthetics
AppearanceHighend SECC black coating casing
Honeycomb ventilation design for optimal heat dissipation.

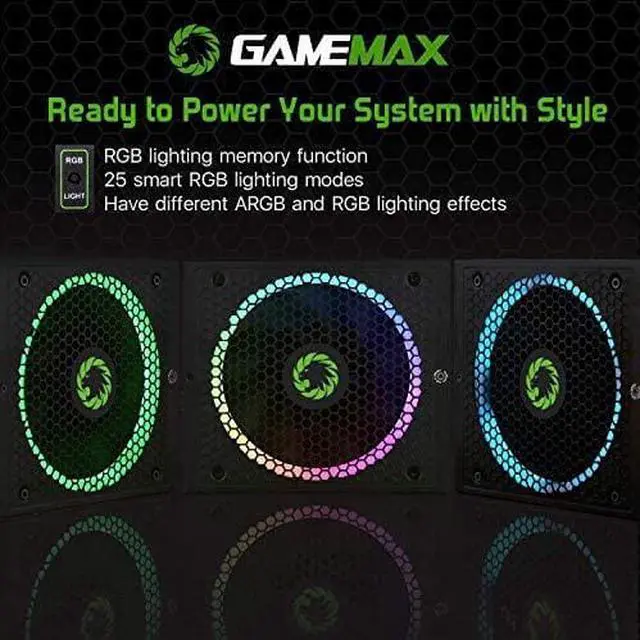

25 smart RGB lighting modes with various colors single color mode, breathing lights mode, color mix mode.
All black cables and connectors make the cable management no longer messy colors.
Performance
PerformancePowerful single + 12V rails offer stable DC output and support highend graphic card and PC system.
Active power factor rate up to 0.9.
Low ripple noise.
80 Plus Gold help you run your system efficiently.
Excellent Components

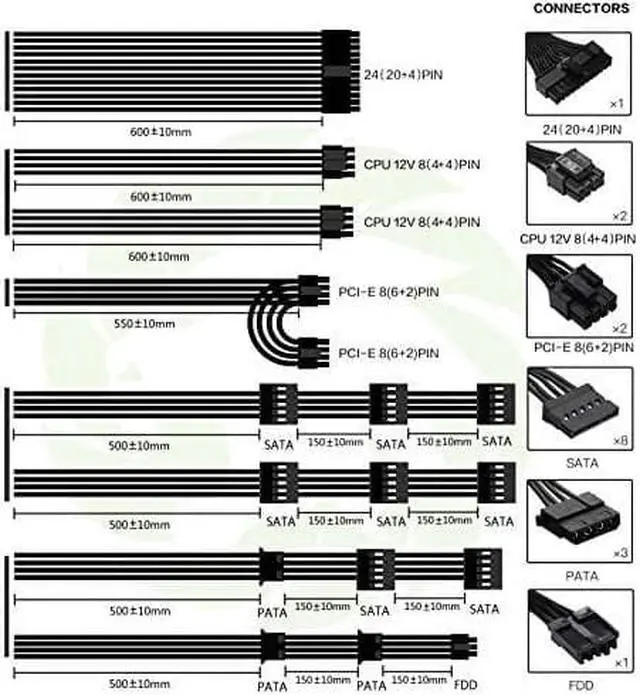

FanLow noise 140mm RGB Fan with intelligent fan speed control.Modular CablesLong cable length at least 500mm supports highend case with "Bottom" PSU position.
Safety
ProtectionOPP/OVP/UVP/SCP/OCP electrical protection included.Safety/EMI ApprovalsCE,FCC,GOST,CB,A26EAC,CCC.
RGB MODES OPRATION INSTUCTION
The RGB fan is on the top of the PSU, the RGB light emitted from the top and sides of the power supply.
Light ModeWith various light mode by build-in firmwareMemory Function: Choose your favorite light mode, it will keep the light mode you selected last time when you turn it on again.Change the Light ModePressing RGB controller switch..
Trun off the LightLong press the RGB controller switch for three seconds,.
The fan spin speed is controlled by smart IC.
