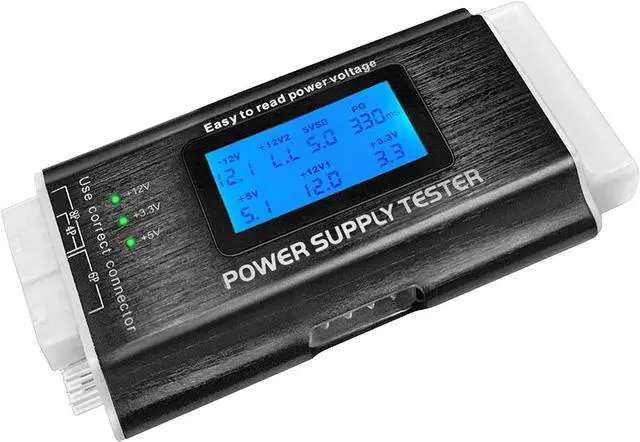

Computer PC Power Supply Tester?20/24 4/6/8 PIN?for ATX, ITX, BTX, PCI-E, SATA, HDD, IDE with Aluminum Alloy Enclosure?1.8" LCD?ATX Power Supply Tester
Limited time offer, ends 01/09 By Nexus3C

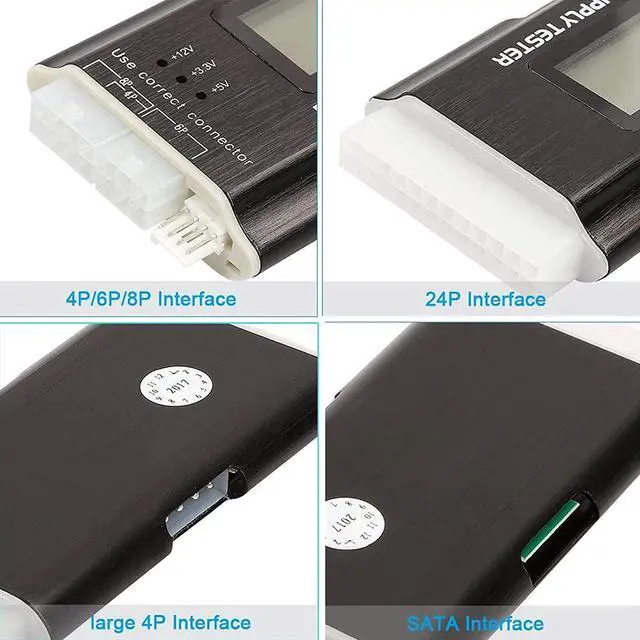

- ATX Power Supply TesterSAMFINTON computer power supply tester support 20-pin / 24-pin / HDD / Floppy 4-pin / PCI-e 6-pin / 4-pin / 8-pin / SATA connectors.
- Aluminum Alloy EnclosureNice thermal conductivity & corrosion Resistance,with a high ?strength housing. The computer power tester is more durable than the plastic case on the market.

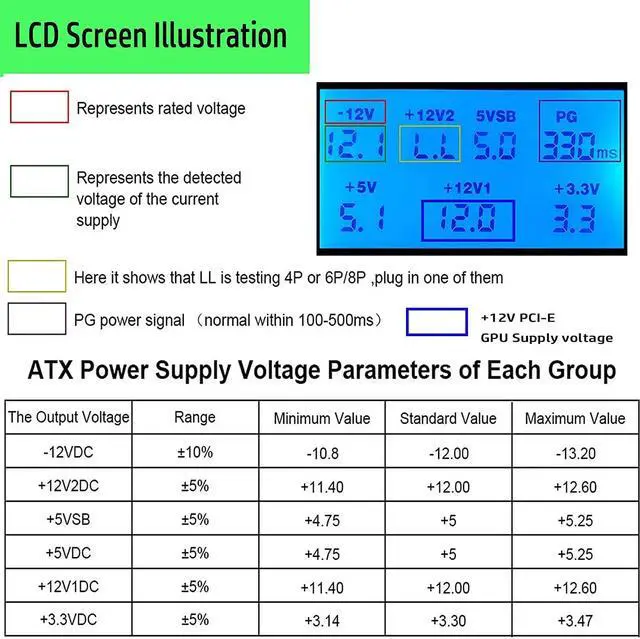

- Practical PC Power TesterThe 1.8inch LCD display intuitive and accurate display outputted Voltages (+/-0.01V), automatic fault alarm.
- NormalTurn on the power supply, will hear "DiDi" ring, If all groups of data are not flashing, the power supply output voltage is normal.
- FaultyIf a certain voltage signal is not detected, or the detected voltage value exceeds the normal value, a long beep buzzer will be emitted; if the corresponding voltage value or PG also flashes, it indicates a fault.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Note: There is a protective film on the screen, not scratches. If you mind these scratches, please tear off the protective film.

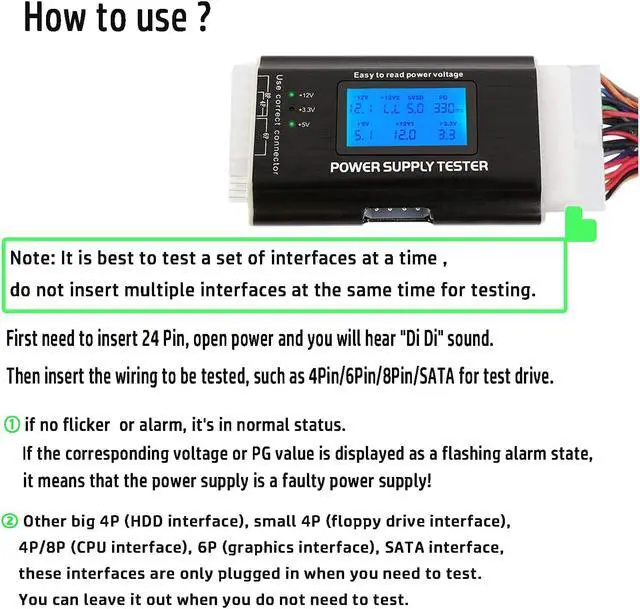

Operation Method:
1.?Plug power supply 24PIN or 20PIN and P4, P6 or P8 into the corresponding jack of the power tester.
(if Insert the 20pin or 24pin connector, tester alarms and displays LL, it means you have not inserted the 4P/6P/8P connector. )
? 2.?Turn on the power supply, you will hear "didi" ring. If all groups of data are not flashing, the power supply output voltage is normal.

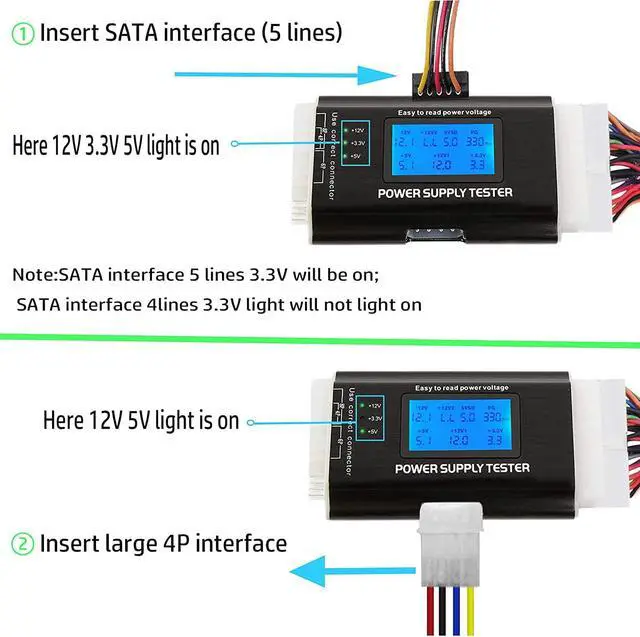

? ? 3.?The voltage of the IDE / SATA / P6 / P8 interface is displayed by the three indicators on the left side of the power tester.
? Normal: (+ 12V, + 3.3, + 5V) ?all light will be on.
Faulty: No light is on.
4.If a certain voltage signal is not detected, or the detected voltage value exceeds the normal value, a long DiDi buzzer will be emitted; if the corresponding voltage value or PG also flashes, it indicates a fault source.
? Note: ?
1.The power supply tester is not supported Hot Plug!
2. The computer power supply tester powered by 20/24 Pin interface,without battery.
3.If there is no power from 20/24 PIN interface, the screen will not light on.
4. There is a protective film on the screen, Not Scratches!
5. Please do not plug the interface in the wrong position or reverse, which may cause the power tester to smoke or damage your power supply.
Operation Method:
1.?Plug power supply 24PIN or 20PIN and P4, P6 or P8 into the corresponding jack of the power tester.
(if Insert the 20pin or 24pin connector, tester alarms and displays LL, it means you have not inserted the 4P/6P/8P connector. )
? 2.?Turn on the power supply, you will hear "didi" ring. If all groups of data are not flashing, the power supply output voltage is normal.
? ? 3.?The voltage of the IDE / SATA / P6 / P8 interface is displayed by the three indicators on the left side of the power tester.
? Normal: (+ 12V, + 3.3, + 5V) ?all light will be on.
Faulty: No light is on.
4.If a certain voltage signal is not detected, or the detected voltage value exceeds the normal value, a long DiDi buzzer will be emitted; if the corresponding voltage value or PG also flashes, it indicates a fault source.
? Note: ?
1.The power supply tester is not supported Hot Plug!
2. The computer power supply tester powered by 20/24 Pin interface,without battery.
3.If there is no power from 20/24 PIN interface, the screen will not light on.
4. There is a protective film on the screen, Not Scratches!
5. Please do not plug the interface in the wrong position or reverse, which may cause the power tester to smoke or damage your power supply.
