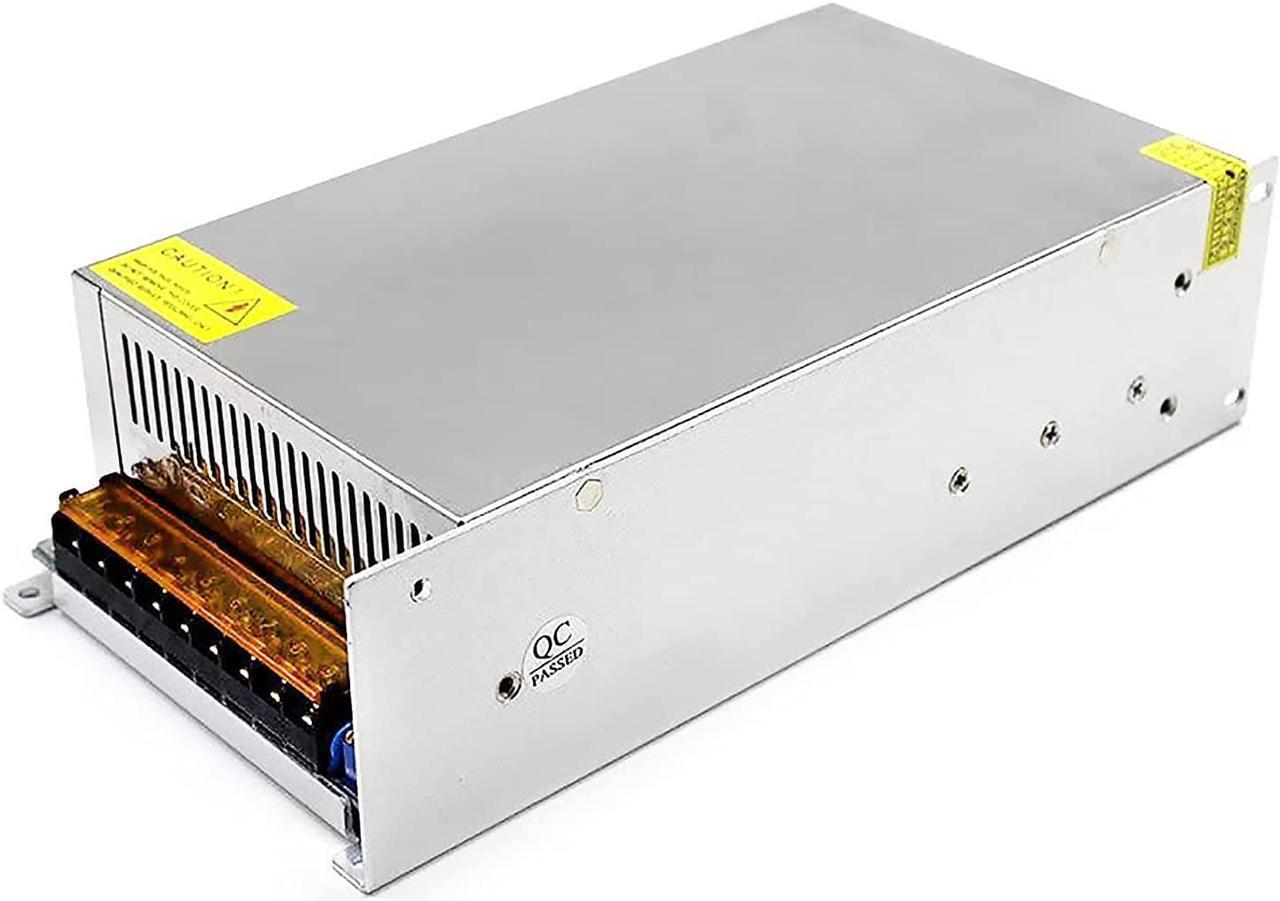

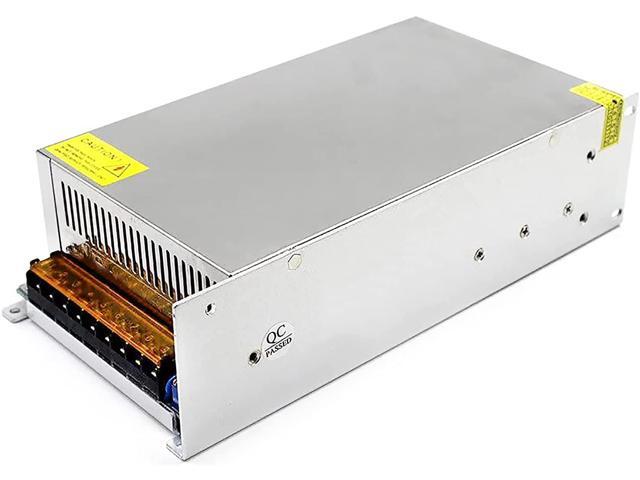

EAGWELL 48V 1200W DC Universal Regulated Switching Power Supply, 25A, 96-130V AC to DC 48 Volt LED Driver, Converter, Transformer for LED Strip Light, CCTV, Computer Project, 3D Printer

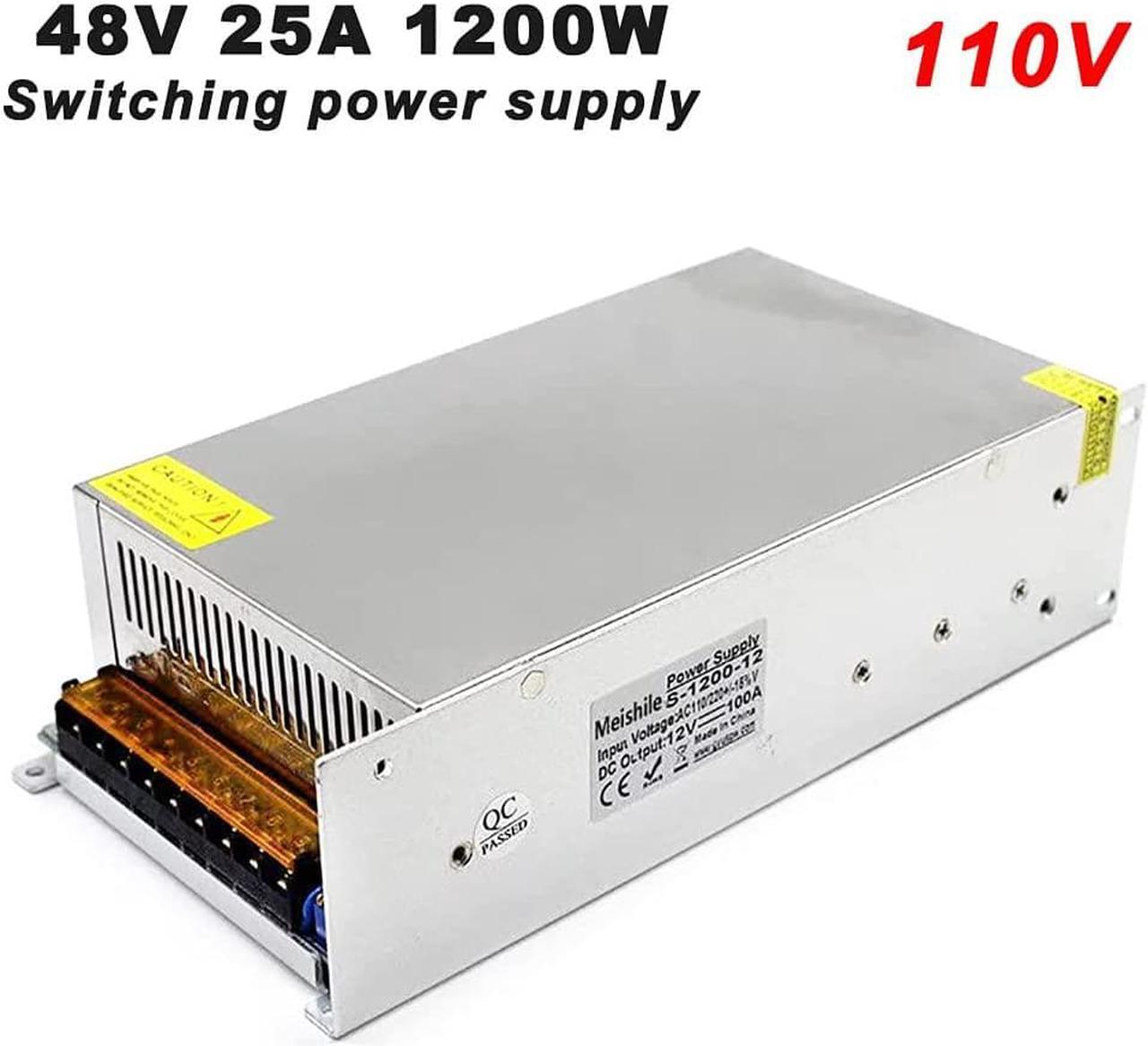

- 48V 25A 1200W Switch Power SupplyAC Input Voltage 110V96V-135VBefore buying, please confirm that you need to enter the voltage.
- 100% Waterproof & Anti-Shock ProtectionSealed aluminium shell with epoxy potting, no worry of using in rainy weather, anti-dust, anti-shock protection and better heat dissipation
- New & High QualityPure Copper Inductors, High-performance Transformers, Dual-capacity Electrolytic Capacitors is The Guarantee of High-quality Power Supply;

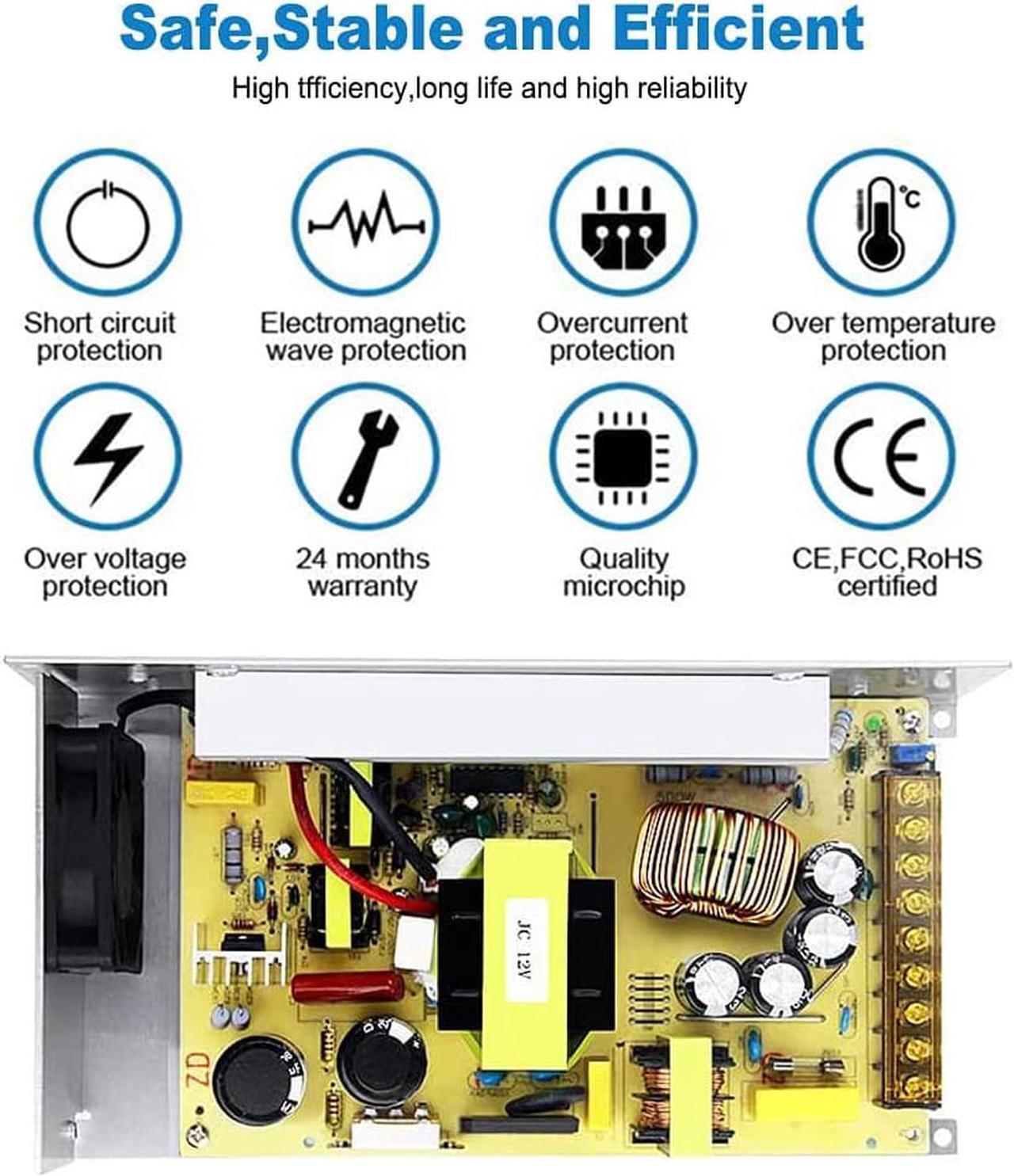

- Intelligent Protectionoffering over/under voltage input, overload, overhead, and short circuit full protection, Action output cut-off Reset:Auto Reset or fuse;
- Widely UsedWide input voltage range, steady and precise output voltage.Great for Industrial automation, Communications , Computer Project ,LED display, CCTV, Radio, LED Strip Lights, 3D Printer etc.
+
+
Overview
Specs
Reviews
Main Feature :
Switching power supply to convert AC 110V to DC48V.
High-power transformers for electronic equipment, LED lighting, household appliances, radios, security cameras, computers, etc.
Widely used in industrial automation, LED display, electronic equipment, communication, etc.
Wide input voltage range and stable and accurate output voltage. Smart device surge protection for short circuit protection, overload protection, over voltage protection.
Special Note:
-Can not be used for motors, starting products whose current exceeds the rated current
-Cannot be used for car power supply
-Cannot be used for battery charger
-Cannot be used for heating wire power supply
-Cannot be used for laboratory chemical electrolysis
More Specification:
Main material: metal
Input voltage: 110V ±1% 85-135V
Output voltage: DC48V
Output current: up to 25A
Difference range: ±5%
Power: 1200W Max (load power cannot exceed 80% of rated power)
Efficiency: >80%
Output adjustable voltage range: ± 5%
Frequency: 50-60Hz
Leakage current: <1mA/130V
Temperature coefficient: ±0.03%/°C (050°C)
Start, rise, hold time: 200ms, 50ms, 20ms
Shock resistance: 10500Hz, 2G 10min, /1 cycle, duration 60 minutes, each axis
Protection: overload overvoltage and overcurrent short circuit protection
Pressure resistance Input and output: 1.5KvAC input and housing; 1.5KvAC output and housing; 0.5KvAC
Working temperature, humidity: -10 ° C ~ +60 ° C, 20% ~ 90% RH
Storage temperature, humidity: -20 ° C ~ +85 ° C, 10% ~ 95% RH
Package List:
1 PCS Switching power supply
Switching power supply to convert AC 110V to DC48V.
High-power transformers for electronic equipment, LED lighting, household appliances, radios, security cameras, computers, etc.
Widely used in industrial automation, LED display, electronic equipment, communication, etc.
Wide input voltage range and stable and accurate output voltage. Smart device surge protection for short circuit protection, overload protection, over voltage protection.
Special Note:
-Can not be used for motors, starting products whose current exceeds the rated current
-Cannot be used for car power supply
-Cannot be used for battery charger
-Cannot be used for heating wire power supply
-Cannot be used for laboratory chemical electrolysis
More Specification:
Main material: metal
Input voltage: 110V ±1% 85-135V
Output voltage: DC48V
Output current: up to 25A
Difference range: ±5%
Power: 1200W Max (load power cannot exceed 80% of rated power)
Efficiency: >80%
Output adjustable voltage range: ± 5%
Frequency: 50-60Hz
Leakage current: <1mA/130V
Temperature coefficient: ±0.03%/°C (050°C)
Start, rise, hold time: 200ms, 50ms, 20ms
Shock resistance: 10500Hz, 2G 10min, /1 cycle, duration 60 minutes, each axis
Protection: overload overvoltage and overcurrent short circuit protection
Pressure resistance Input and output: 1.5KvAC input and housing; 1.5KvAC output and housing; 0.5KvAC
Working temperature, humidity: -10 ° C ~ +60 ° C, 20% ~ 90% RH
Storage temperature, humidity: -20 ° C ~ +85 ° C, 10% ~ 95% RH
Package List:
1 PCS Switching power supply
