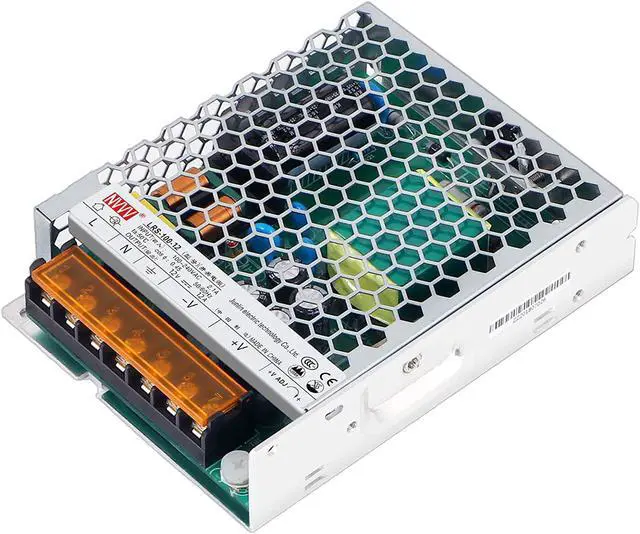

NVVV dc switching power supply LRS-100-12 ultra-thin ac 100-240V to DC12V 8.5A converter switch transformer for CCTV, Computer Project, 3D Printer, LED Strip Light, Router (12V 100W)
- Efficient heat dissipation, honeycomb hole design--hollowed-out heat dissipation fast, protection switch power supply internal components
- Certified by 3C CE. We focus on producing high quality power adapters, stable output. Automatic overload cut-off, over voltage cut-off, automatic thermal cut-off, short circuit protection.

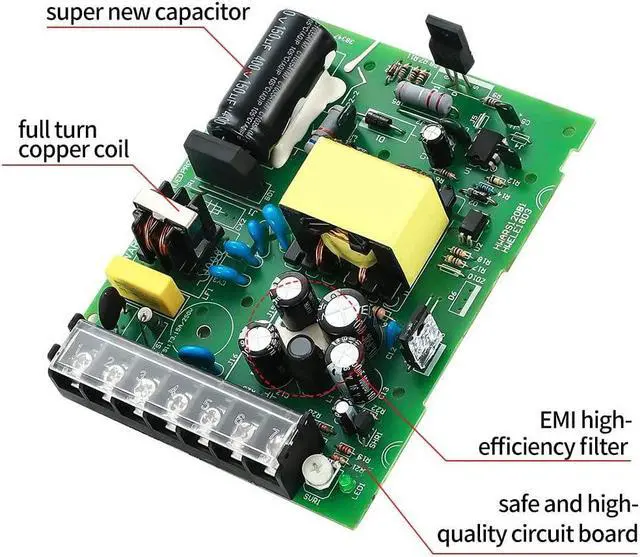

- Input Voltage: 100-240V AC range selectable by switch, air cooling by built-in fan. Filter capacitance; High withstand voltage; Low dissipation; Large capacity
- All copper transformer; Sufficient power; Excellent magnetic core; Enameled wire high temperature resistant
- Widely being used in Industrial automation, LED display, electronic equipments, communications etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

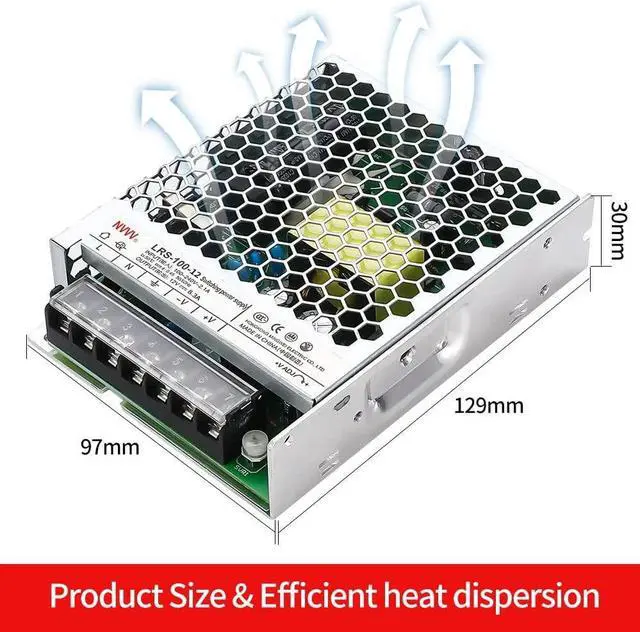

Size(L*W*H):
12V 35W: 98*82*30mm
12V 50W: 98*82*30mm
12V 75W: 99*97*307mm
12V 100W: 129*97*30mm
12V 150W: 159*97*30mm
12V 350W: 215*115*30mm
Product parameters:
Input: AC100-240V
Output: DC12V
Number of Output: +V x 2, -V x 2
Frequency: 50/60Hz
Working temperature:-25~70
Storage Temperature: -40~85
Ambient Humidity:10%~95RH Non-Condensation
Shell Material: Aluminum base Silver Tone
Specification:
Good quality & high performance
AC 100-240V to DC 12V

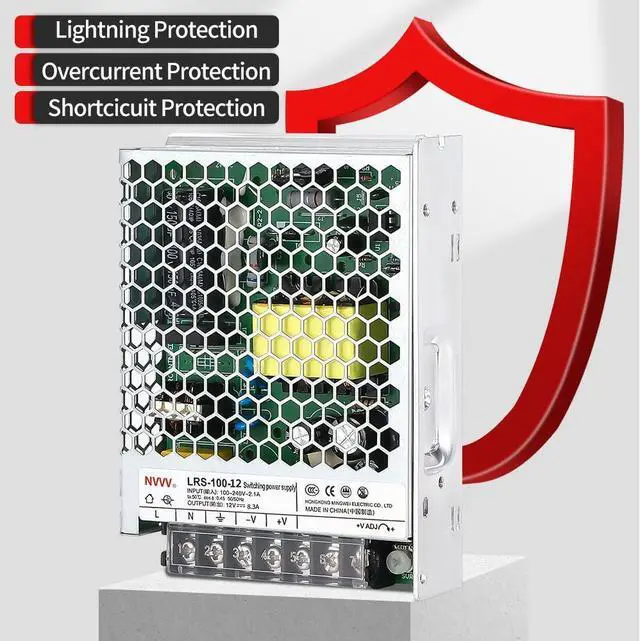

Protections: Short-circuit, Overload, Over Voltage, Over Temperature Protection
Cooling by free air convection(Not suggest for use in bathroom)
The unit can work long hours at rated current and good cooling environment.
The actual output current depends on circuit loads.
Please DO NOT let the unit work long hours over rated current! Normally it is better to work under 80% of rated current.

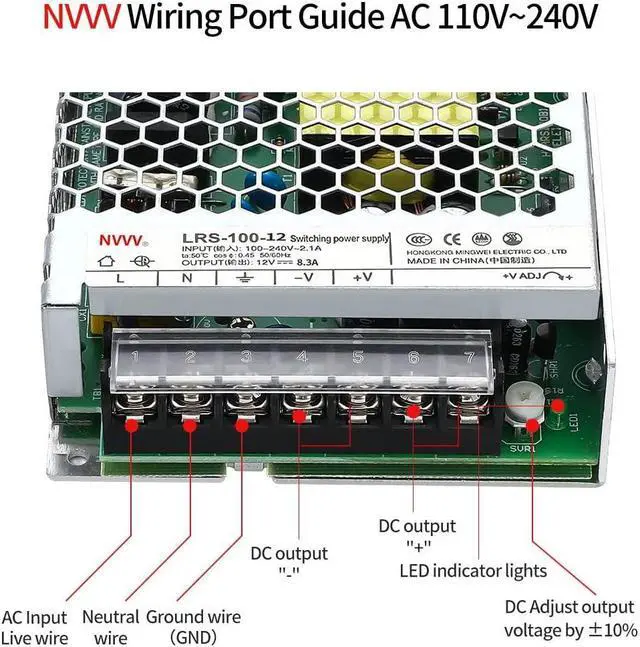

Wiring:
L, N, GND: AC power input
+V: DC power output "+"
-V: DC power output "-"
+V / ADJ: Adjust the output voltage (10%)
Note:
IN-DOOR USE ONLY!
No installation instruction, wiring cable, on/off switch, or screws come with.
Professional installation of qualified electrician is highly recommended.
12V 35W: 98*82*30mm
12V 50W: 98*82*30mm
12V 75W: 99*97*307mm
12V 100W: 129*97*30mm
12V 150W: 159*97*30mm
12V 350W: 215*115*30mm
Product parameters:
Input: AC100-240V
Output: DC12V
Number of Output: +V x 2, -V x 2
Frequency: 50/60Hz
Working temperature:-25~70
Storage Temperature: -40~85
Ambient Humidity:10%~95RH Non-Condensation
Shell Material: Aluminum base Silver Tone
Specification:
Good quality & high performance
AC 100-240V to DC 12V
Protections: Short-circuit, Overload, Over Voltage, Over Temperature Protection
Cooling by free air convection(Not suggest for use in bathroom)
The unit can work long hours at rated current and good cooling environment.
The actual output current depends on circuit loads.
Please DO NOT let the unit work long hours over rated current! Normally it is better to work under 80% of rated current.
Wiring:
L, N, GND: AC power input
+V: DC power output "+"
-V: DC power output "-"
+V / ADJ: Adjust the output voltage (10%)
Note:
IN-DOOR USE ONLY!
No installation instruction, wiring cable, on/off switch, or screws come with.
Professional installation of qualified electrician is highly recommended.
