MEISHILE DC 12V 600W 50A Switch Power Supply 110V AC to DC SMPS/PSU Converter Power Supply Adapter Transformer, ButtonV21 (Upgraded Version(DC 12V 50A))
- Universal input voltage: AC 110V / 220V (85-145V / 185-265V); Output current depends on the decive, e.g.DC 12V 10A 120W, 20A 240W, 35A 420W, and the peak current is 50A, peak power 600W. Recommended for equipment below 40A 480W.
- How to choose: Peak power is 50A, 600W. That doesn't mean it's for devices rated at 600W. For resistive device, SMPS peak power device power × 1.25 times. For Motor device, the peak power of the SMPS needs to be more than 2 times the power of the Motor.
- High?EFC,?Low-loss, Long Service Life: More than 6,000 hours of service life; Proprietary?Circuit?Solutions;??Aluminum?shell,?Long?Life;?Low?standby?power?consumption,?High?efficiency.?EFC?much?higher?than?linear?supply. Safe and Stable: Power Supply has over / under voltage, over heat protection ,and continuous fan heat dissipation protection. Strictly tested before leaving the factory.
- Portable, Small and Compact: 9×4.5×2 inch, net weight 0.8 kg. Easy to operate: portable Alligator Clips & sturdy
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now

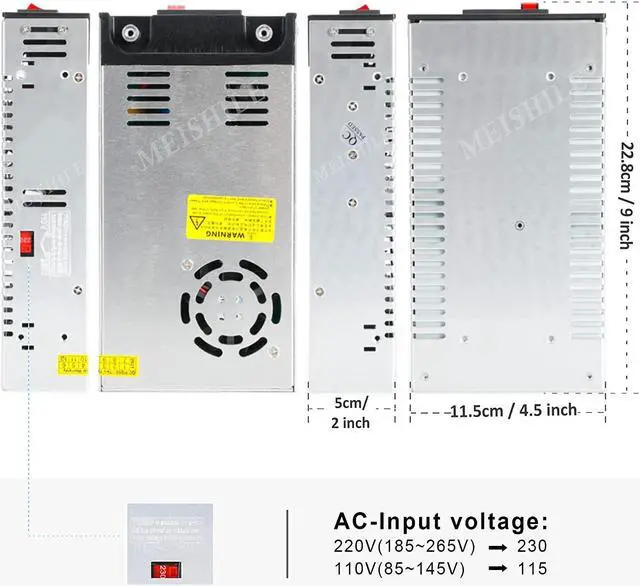

Note:?This?product?has?the?cooling?fans?to?perform?a?sound?(the?sound?of?a?fan?rotates)? Not?applicable?to: Programming / Speed?Control?Motor / dimming?Light / plant?Light / power?Controller / constant?Current?Module. Constant?Voltage?Power?Supply,?Non-Constant?Current?PSU, Suitable for powering single DC voltage devices.? Main?Parameter Output?voltage:?DC?12V Range?Of?Difference:±1% Rated?Power:?600W Peak?current:50A?max (Please?calculate?the?power?and?current?accurately,?and?add?at?least?a?20%?dummy?load.? If?it?is?a?motor,?add?a?dummy?load?of?more?than?50%.) Efficiency:?>83%? Leakage current: ?<1mA / 230V Input?voltage:AC?110V (85-145V?) / 220V(185-265V) When AC 85-145V, Frequency 60Hz, Efficiency?>80% When AC 185-265V, Frequency 50Hz, Efficiency?>70% Working Temperature: -10 ~ + 60 (Refer to the output load derating curve) Working Humidity: 20 ~ 90% RH Storage Temperature: -20 ~ + 85 Storage Humidity: 10 ~ 95% RH? Product?Size:?228*115*50 mm?/ 9*4.5*2 inch Net weight:?0.8 kg / 1.75 lb Package?weight: 1.1 kg / 2.5 lb Package?contains: 1*POWER SUPPLY 1*OPERATING MANUAL Please download the multilingual OPERATING MANUAL from the Sales URL, or contact Seller's Customer Service.
