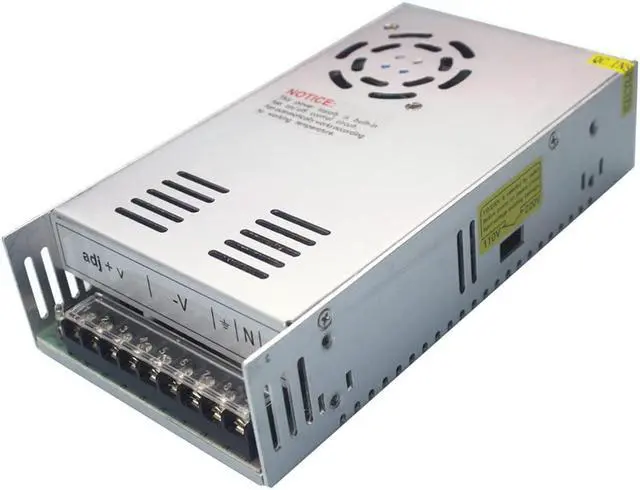

JoyNano 300W Switching Power Supply 5V 60A AC-DC Converter Transformer for CCTV Surveillance LED Display Industrial Automation Stepper Motor and More [Upgraded Version]

The JoyNano 5V 40A Switching power supply is great electronic devices that operate on 5VDC and require less than 200W of power.JoyNano - Enjoy Electronics and GadgetsDescription:
Constant voltage output to ensure the stability of the power supply. Efficient work and low temperature.

Input voltage 110V/230V is selected by switch. Before power on please check input voltage avoiding damage.

Safety Protection: Overvoltage protection, short circuit protection and overload protection. Hiccup mode, recovers automatically after faulty condition is removed.

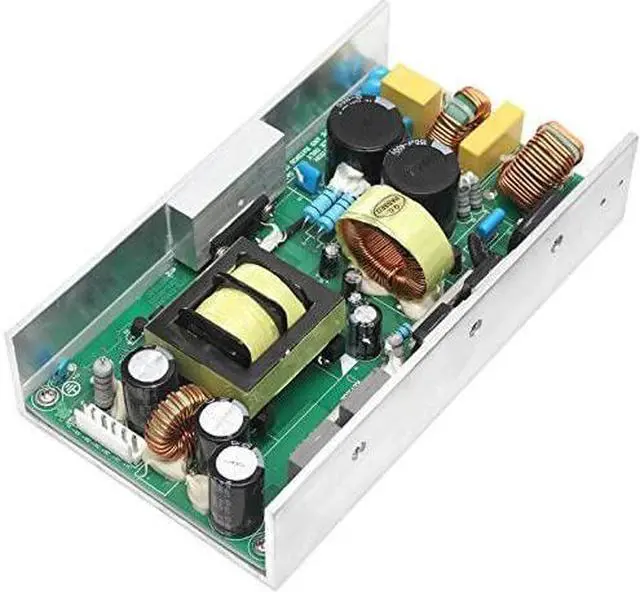

Upgraded Glass-Fiber Board offers high performance of electrical insulation. Premium Transformer converts incoming line voltage to desired output load easily.


Specifications:
Input Voltage: AC110V/ 220V

Output Voltage: 5V DC

Output Current: 40A

Power: 200W Max

Screw Terminal Number: 9

Cooling: By Built-in DC Fan.

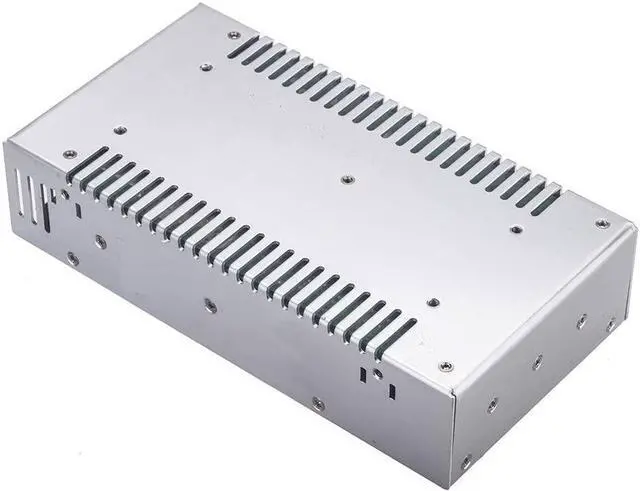

Shell material: Aluminum case

Dimension: 200 x 110 x 50 mm (L x W x H) 7.8 x 4.3 x 1.9 inch

Net Weight: 690g 1.5lb

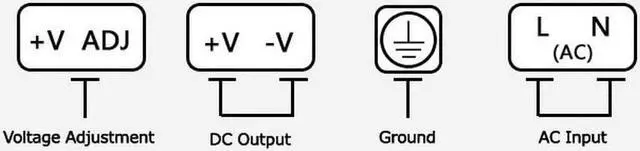

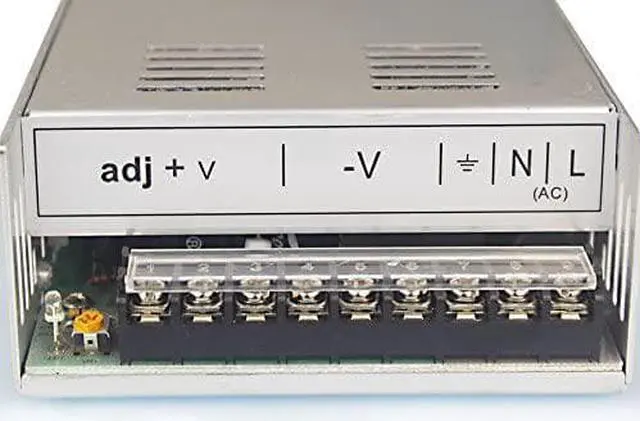

Wiring:
L, N, GND: AC power input

+V: DC power output "+"

-V: DC power output "-"

+V / ADJ: fine adjustment of output voltage


Environmental Requirement:
Working temperature: -10 to 50 degree Celsius

Storage temperature: -20 to 60 degree Celsius

Environmental humidity: 10-95%


Usage:Switching Power Supply Driver for LED Strip Light, CCTV Surveillance, Industrial Automation, CNC Stepper/Servo System, LED Decorative Lighting, LED Display, Stage Lighting, Communications, Network, etc.Notice:
In-door use only.

Professional Installation of qualified electrician is highly recommended.


Package Included:1 x JoyNano 200W Switch Power Supply 5VDC 40A
