Plyisty Aluminum Alloy PC Power Supply Tester, Mini Portable ATX SATA Power Supply Tester, LCD Display Digital for ATX, BTX, ITX, TFX Supports Automatically Alarm
Limited time offer, ends 01/09 By Nexus3C
- External DIE / SATA / P6 / P8 is light display, no LCD display voltage

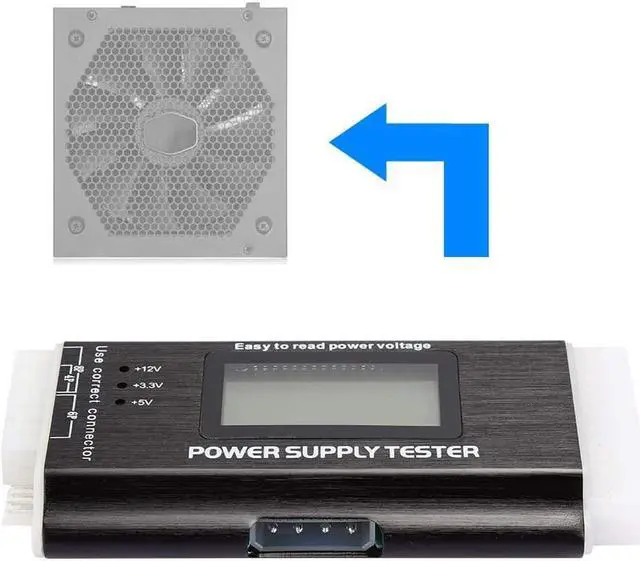

- This power tester only needs to be connected to the ATX connector of the power supply to easily and intuitively know whether the output of each power supply is normal.

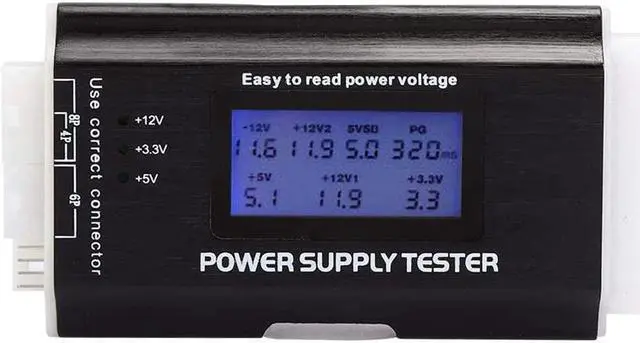

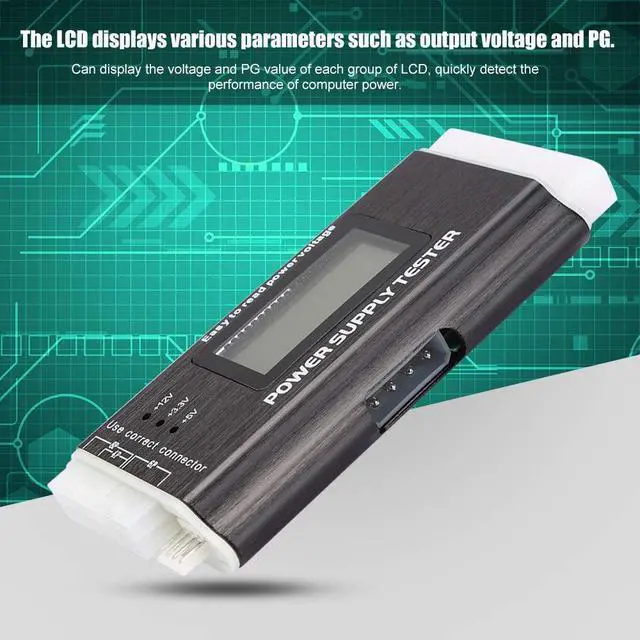

- The LCD displays various parameters such as output voltage and PG.When each parameter exceeds the normal value, the buzzer will sound a warning sound, and the corresponding value will flash
- It can measure the voltage of each group of the power supply 3.3V / + 5V / + 12V / -12V / SB + 5V / PG. If there is a fault, the buzzer will automatically alarm and the output wire P4 / P6 / P8 / SATA / IDE
- Can detect ATX, BTX, ITX, TFX computer power, and can display the voltage and PG value of each group of LCD, quickly detect the performance of computer power.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Feature:
2. This power tester only needs to be connected to the ATX connector of the power supply to easily and intuitively know whether the output of each power supply is normal.
3. Can detect ATX, BTX, ITX, TFX computer power, and can display the voltage and PG value of each group of LCD, quickly detect the performance of computer power.
4. It can measure the voltage of each group of the power supply 3.3V / + 5V / + 12V / -12V / SB + 5V / PG. If there is a fault, the buzzer will automatically alarm and the output wire P4 / P6 / P8 / SATA / IDE
5. External DIE / SATA / P6 / P8 is light display, no LCD display voltage
6. Only 24pin or 20pin can be connected to the LCD display voltage.
Spec:Item Type: Power Supply Tester
Material: Aluminum alloy

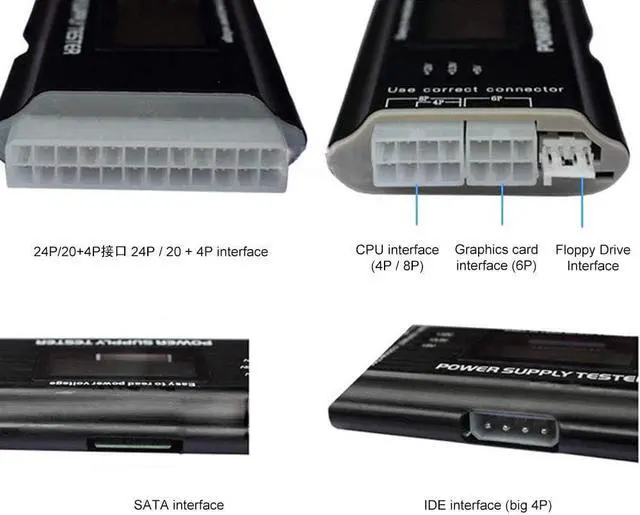

Support 20Pin, 24Pin ATX power supply
Supports SATA power
Support 4Pin, 8Pin interface of P4
Support PCI-E graphics card 6Pin power connector
Support Xeco power interface
Support floppy drive power interface
Support standard 4Pin power interface SATA interface
Test voltages are + 3.3V, -12V, + 5VSB, + 12V1, + 12V2, + 5V
Features: PG automatic alarm, LCD shows the situation of each voltage
Operation Method:
A. Insert the power supply 20PIN or 24PIN and P4, P6 or P8 plug into the corresponding position of the power tester. (If you plug in the 20PIN or 24PIN interface tester to alarm and display LL, you need to plug in 4P! Please be sure that 4P must be inserted in the 4P position!)
B. Turn on the power, and there will be two beep sounds at the same time
2. This power tester only needs to be connected to the ATX connector of the power supply to easily and intuitively know whether the output of each power supply is normal.
3. Can detect ATX, BTX, ITX, TFX computer power, and can display the voltage and PG value of each group of LCD, quickly detect the performance of computer power.
4. It can measure the voltage of each group of the power supply 3.3V / + 5V / + 12V / -12V / SB + 5V / PG. If there is a fault, the buzzer will automatically alarm and the output wire P4 / P6 / P8 / SATA / IDE
5. External DIE / SATA / P6 / P8 is light display, no LCD display voltage
6. Only 24pin or 20pin can be connected to the LCD display voltage.
Spec:Item Type: Power Supply Tester
Material: Aluminum alloy
Support 20Pin, 24Pin ATX power supply
Supports SATA power
Support 4Pin, 8Pin interface of P4
Support PCI-E graphics card 6Pin power connector
Support Xeco power interface
Support floppy drive power interface
Support standard 4Pin power interface SATA interface
Test voltages are + 3.3V, -12V, + 5VSB, + 12V1, + 12V2, + 5V
Features: PG automatic alarm, LCD shows the situation of each voltage
Operation Method:
A. Insert the power supply 20PIN or 24PIN and P4, P6 or P8 plug into the corresponding position of the power tester. (If you plug in the 20PIN or 24PIN interface tester to alarm and display LL, you need to plug in 4P! Please be sure that 4P must be inserted in the 4P position!)
B. Turn on the power, and there will be two beep sounds at the same time
