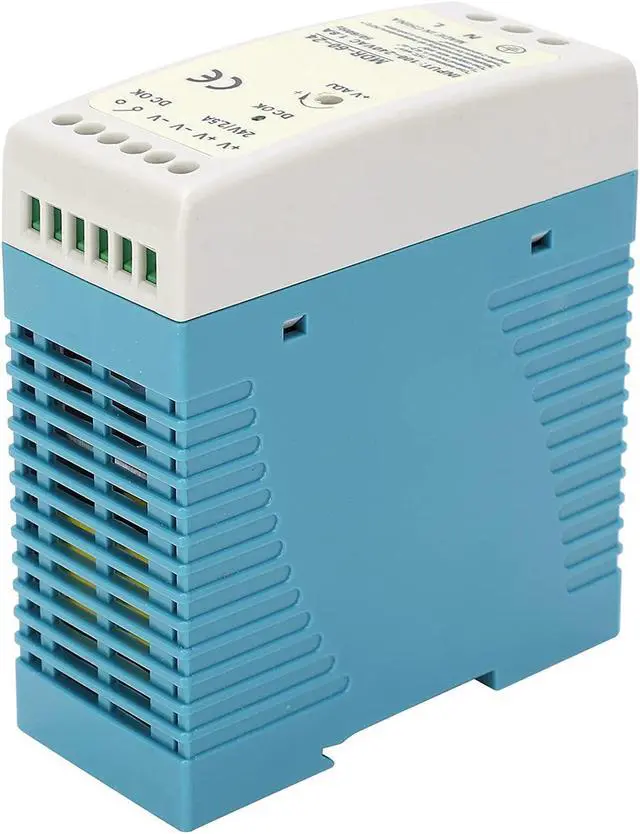

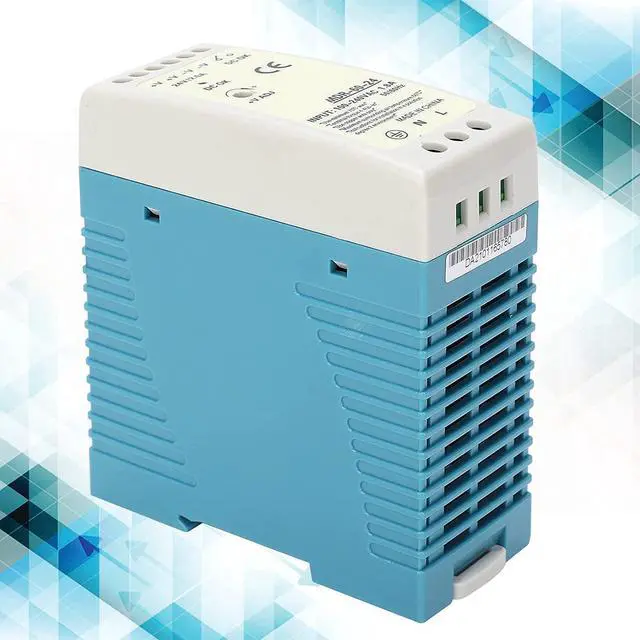

MDR-60-24 BERM Switching Power Supply DIN-Rail Power Supply for Industrial PLC MDR-60-24 60W 2.5A 100-240VAC Input

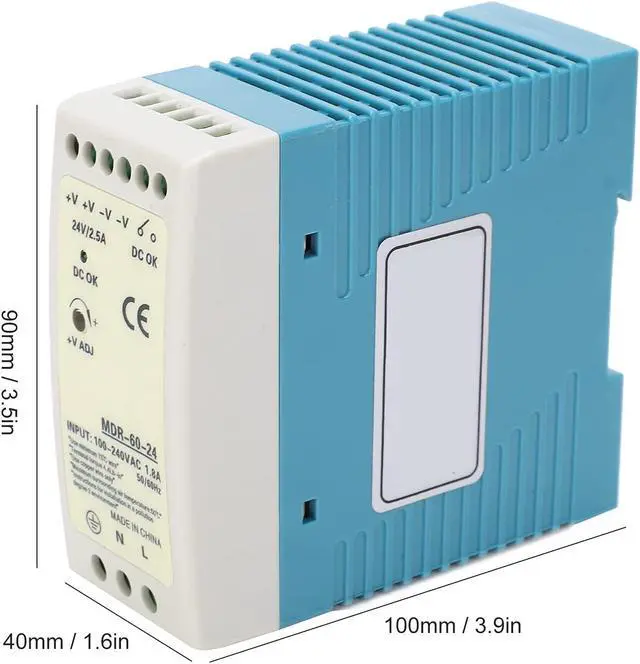

- Premium Quality: High quality ABS material can make sure the durability and stability of the product, with short circuit protection, overload protection, overvoltage protection, overheat protection function. DC Output Range: 24V, 2.50A. Output Voltage Accuracy: ±1%. Ripple: 150mV. Efficiency: 88%. Input Voltage: 100-240VAC Chassis Number: 962A. Size: Approx. 100 x 40 x 90mm / 3.9 x 1.6 x 3.5in.

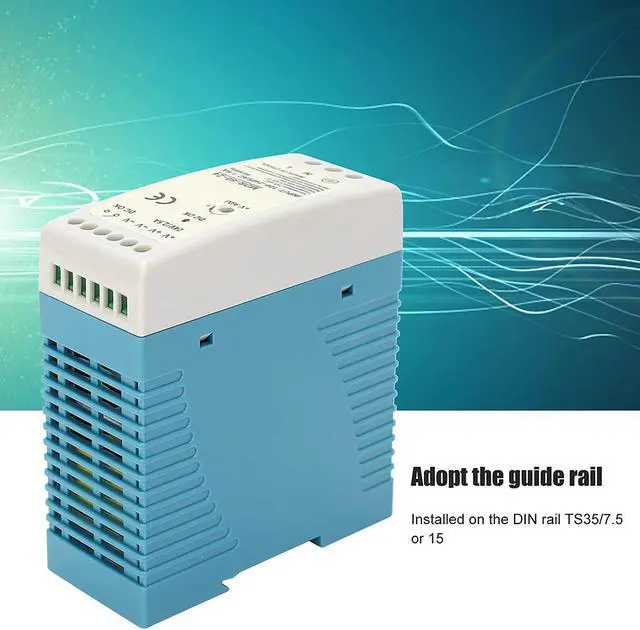

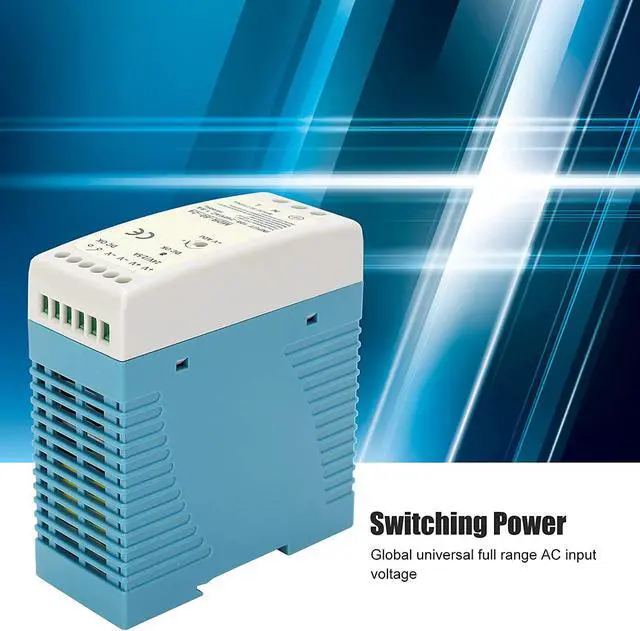

- Practical Tool: Global universal full range AC input voltage 100?240VAC for power supply with stable performance, great workmanship and standard design, good part for industrial PLC, simple to operate. Using the din rail mode, installed on the DIN rail TS35/7.5 or 15, the installation is simple and convenient.
- Overload Protection: When the overcurrent point is 105%150%, the constant current limit will automatically restore. Overvoltage Protection: Shut down when 125%150% of rated output voltage, restart and recover. Voltage Adjustment Range: 0+20% of rated output voltage. Start-up and Hold
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Switching Power
Product Material: ABS
How to Use:
1. The AC voltage specifications that the rail power supply can use are 110VAC, 220VAC and 380VAC. Therefore, before turning on the power supply, carefully check whether the connected voltage and the input voltage of the power supply are correct and consistent.
2. Do not load before powering on for the first time. First check whether the output voltage of the power supply is the same as the power supply of the connected equipment to avoid damage to the connected equipment.
3. Before using the power supply, please confirm whether the ground wire is properly connected, and mark the position of the specific power ground wire in the figure.
4. The power supply must be placed in a well-ventilated place with fast heat dissipation before and after use.
5. The determination of the output current of the rail power supply is closely related to the environment. It is determined based on the rated standard current of the rail power supply provided by the equipment or the average current value measured by a multimeter. And in the case of high ambient temperature, poor air flow conditions, and excessive inductive load, 20-30% more current margin must be prepared.
6. The input power of the rail power supply is generally determined by the input power of the rail power supply, which determines the rated power of the equipment supplied. However, in the case of not knowing the specific rated power of the equipment supplied, there are also certain modifications, and the power can be obtained based on the product of the rated current and voltage of the equipment supplied, that is, current x voltage. It should be noted that when the user selects the power supply, it should be greater than 15-30% of the actual power and peak power.
Package List:
1 x Switching Power
Item Type: Switching Power
Product Material: ABS
How to Use:
1. The AC voltage specifications that the rail power supply can use are 110VAC, 220VAC and 380VAC. Therefore, before turning on the power supply, carefully check whether the connected voltage and the input voltage of the power supply are correct and consistent.
2. Do not load before powering on for the first time. First check whether the output voltage of the power supply is the same as the power supply of the connected equipment to avoid damage to the connected equipment.
3. Before using the power supply, please confirm whether the ground wire is properly connected, and mark the position of the specific power ground wire in the figure.
4. The power supply must be placed in a well-ventilated place with fast heat dissipation before and after use.
5. The determination of the output current of the rail power supply is closely related to the environment. It is determined based on the rated standard current of the rail power supply provided by the equipment or the average current value measured by a multimeter. And in the case of high ambient temperature, poor air flow conditions, and excessive inductive load, 20-30% more current margin must be prepared.
6. The input power of the rail power supply is generally determined by the input power of the rail power supply, which determines the rated power of the equipment supplied. However, in the case of not knowing the specific rated power of the equipment supplied, there are also certain modifications, and the power can be obtained based on the product of the rated current and voltage of the equipment supplied, that is, current x voltage. It should be noted that when the user selects the power supply, it should be greater than 15-30% of the actual power and peak power.
Package List:
1 x Switching Power
