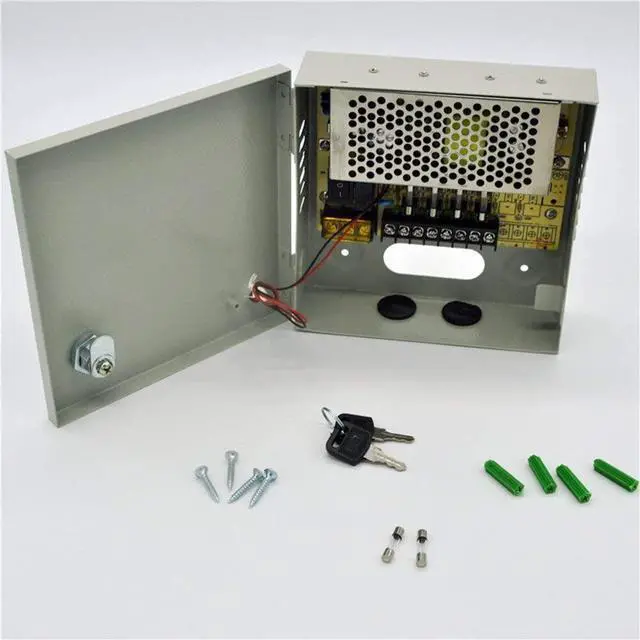

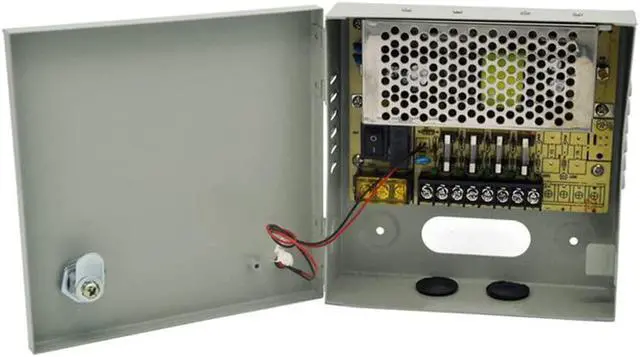

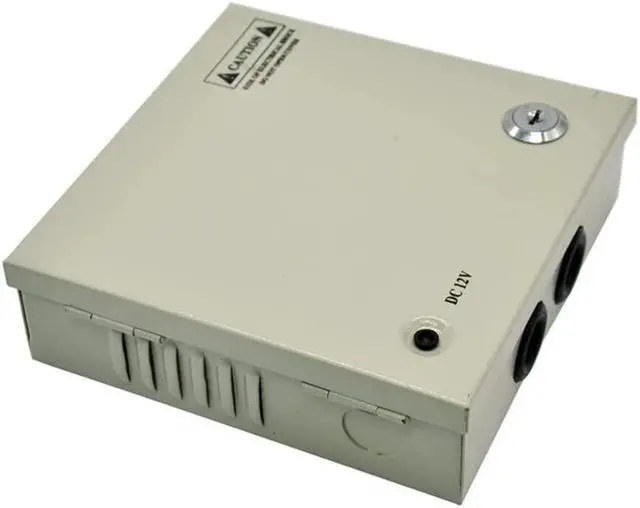

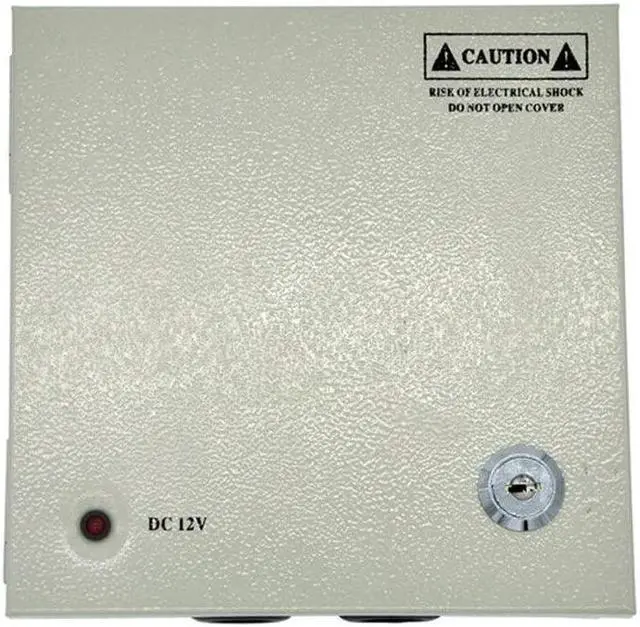

kdajhag AC 100~240V to DC 12V 3A 36W Output 4 Channels CCTV Power Supply Box for Cameras
- 1.High efficiency, long life and high reliabili
- 2.Low dc ripple, high efficiency
- 3.low operation temperature &longperformancelife
- 4.input voltage suitable for most of the countries
- 5.Excellent insulation property, high dielectric strength
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model
4CH-12V-36W
Input
AC input voltage range(V)
AC 100-240V
AC Input current(max)
6A /115V,3A /230V
Frequency (Hz)
47~63Hz
Efficiency
83% Typ(230VACFull Load)
Inrush current(A)
Cold-start 20A/230V
Leakage current(mA)
<;3mA/240VAC
Output
Output Voltage(V)
12V DC
Output amount
4 Channels
Output Current(A)
3A
Current Range (A)
0-3A
Rated Power(W)
36W
Start time,hold-up time(ms)
Ton1000ms,Td20ms @230Vac Full Load
Rise time(ms)
Typ:20ms @230Vac Full Load
Ripple/Noise(mVp-p)
120mVp-p
Environment
working Temperature (°C)
-40°C - +65°C(refer derating curve)
Storage Temperature(°C)
-20°C - +60°C
Humidity
20% - 90% RH non condensing
Protection
Over voltage Protection
>115%-135% Rated output voltage
Over load Protection
>105%-150% Auto recovery
Short circuit Protection
Latched
Others
Size L*W*H(cm)
16.4*16.4*4.7
Weight
805g
4CH-12V-36W
Input
AC input voltage range(V)
AC 100-240V
AC Input current(max)
6A /115V,3A /230V
Frequency (Hz)
47~63Hz
Efficiency
83% Typ(230VACFull Load)
Inrush current(A)
Cold-start 20A/230V
Leakage current(mA)
<;3mA/240VAC
Output
Output Voltage(V)
12V DC
Output amount
4 Channels
Output Current(A)
3A
Current Range (A)
0-3A
Rated Power(W)
36W
Start time,hold-up time(ms)
Ton1000ms,Td20ms @230Vac Full Load
Rise time(ms)
Typ:20ms @230Vac Full Load
Ripple/Noise(mVp-p)
120mVp-p
Environment
working Temperature (°C)
-40°C - +65°C(refer derating curve)
Storage Temperature(°C)
-20°C - +60°C
Humidity
20% - 90% RH non condensing
Protection
Over voltage Protection
>115%-135% Rated output voltage
Over load Protection
>105%-150% Auto recovery
Short circuit Protection
Latched
Others
Size L*W*H(cm)
16.4*16.4*4.7
Weight
805g
