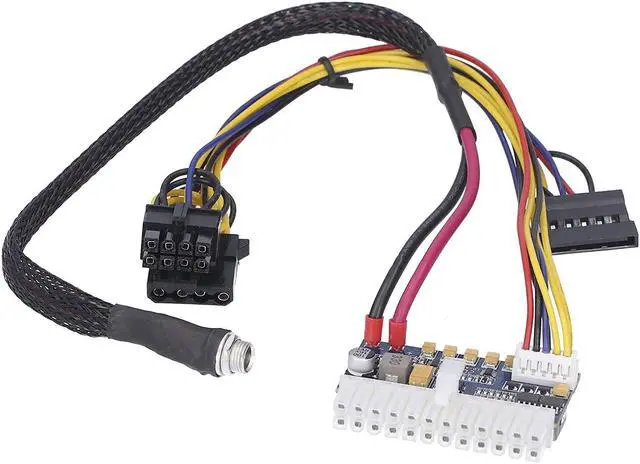

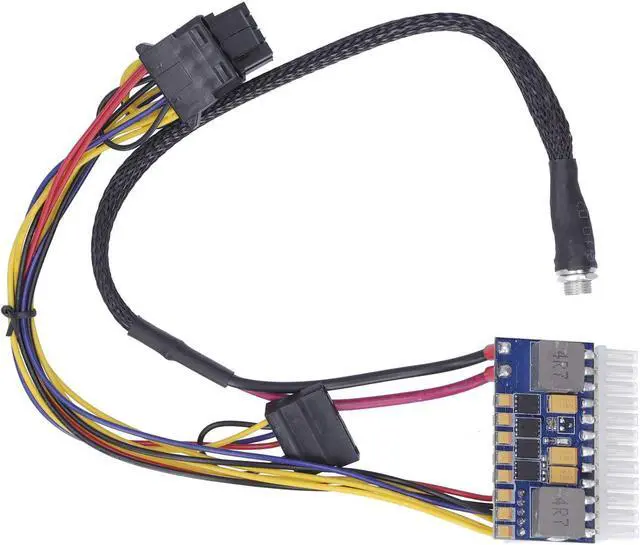

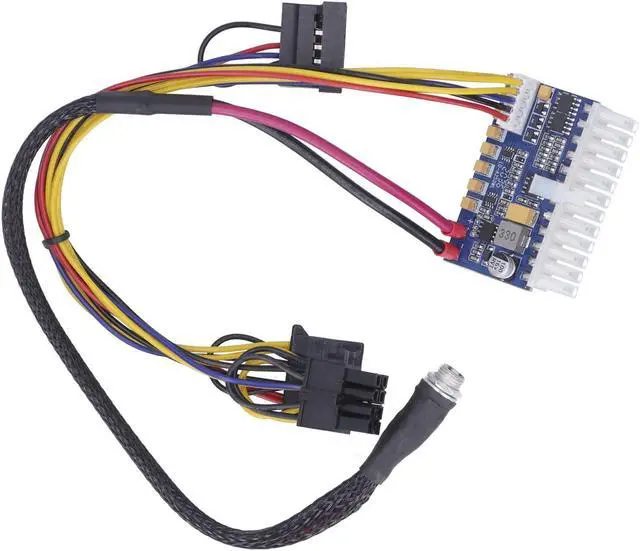

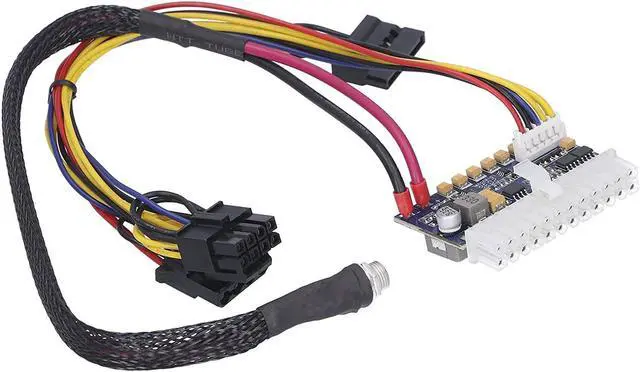

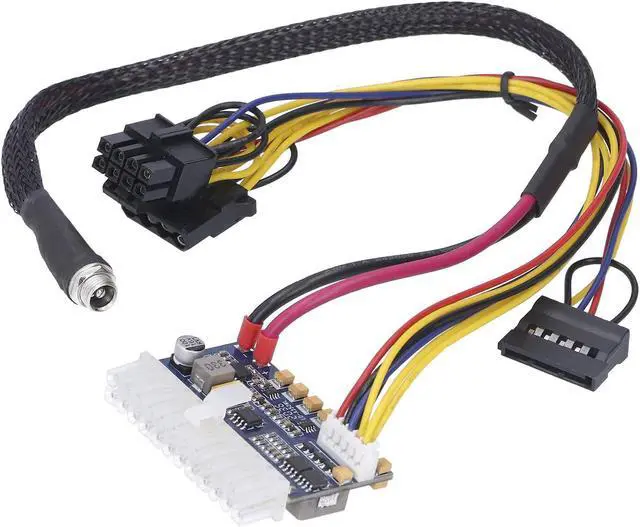

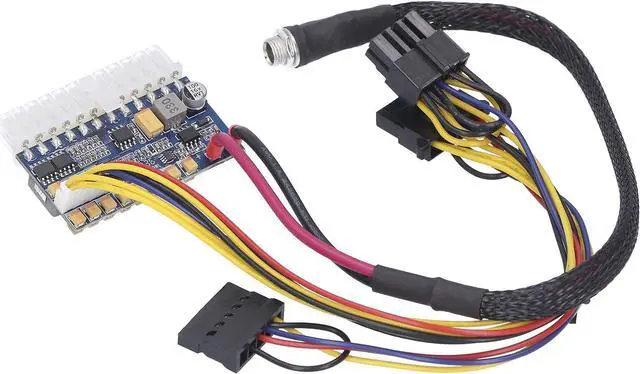

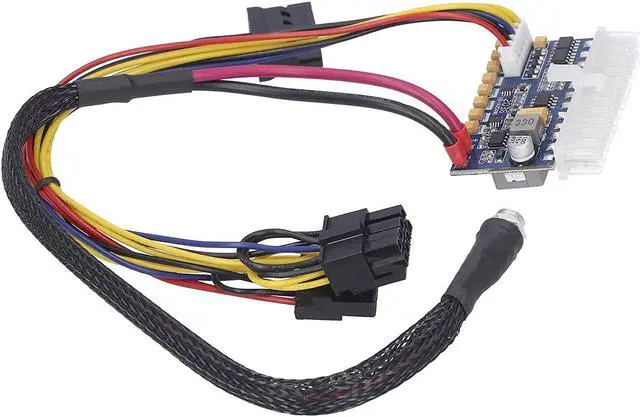

Power Adapter Board,Power Supply Adapter Board for Desktop Computer Transfer Module LD-A250WL 12V/250W
- The adapter plate has high performance, high heat resistance and more reliability.
- By directly inserting the motherboard ATX connector to eliminate 24 unnecessary wires, suitable for small ATX boards, saving space in the case.
- With over?current protection: when the output current reaches the peak current, the output is turned off.
- With short-circuit protection: when the output is short-circuited, the output is turned off.
- Output voltage/maximum load is +5VSB/2A, +5VDC/6A, +3.3VDC/6A, +12VDC/16A, -12VDC/0.05A.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Power Supply Adapter Board
Model: LD-A250WL
Material: PCB
Power: 250W
Input Voltage: 12V
Output Voltage/maximum Load: +5VSB/2A, +5VDC/6A, +3.3VDC/6A, +12VDC/16A, -12VDC/0.05A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x SATA, 1 x IDE, 1 x DC5525
Cable Length: DC Cable Length: Approx. 320mm / 12.6in
CPU Cable Length: Approx. 210mm / 8.3in
IDE Cable Length: Approx. 200mm / 7.9in
SATA Cable Length: Approx. 150mm / 5.9in
Protection Function: (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/humidity: -5 ~ 55/45%~75%
Storage Temperature/humidity: -40 ~ 70/10%~90%
Applications: MINI computers, HTPC computers, POS machines, ITX cases, web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
Package List:
Item Type: Power Supply Adapter Board
Model: LD-A250WL
Material: PCB
Power: 250W
Input Voltage: 12V
Output Voltage/maximum Load: +5VSB/2A, +5VDC/6A, +3.3VDC/6A, +12VDC/16A, -12VDC/0.05A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x SATA, 1 x IDE, 1 x DC5525
Cable Length: DC Cable Length: Approx. 320mm / 12.6in
CPU Cable Length: Approx. 210mm / 8.3in
IDE Cable Length: Approx. 200mm / 7.9in
SATA Cable Length: Approx. 150mm / 5.9in
Protection Function: (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/humidity: -5 ~ 55/45%~75%
Storage Temperature/humidity: -40 ~ 70/10%~90%
Applications: MINI computers, HTPC computers, POS machines, ITX cases, web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
Package List:
