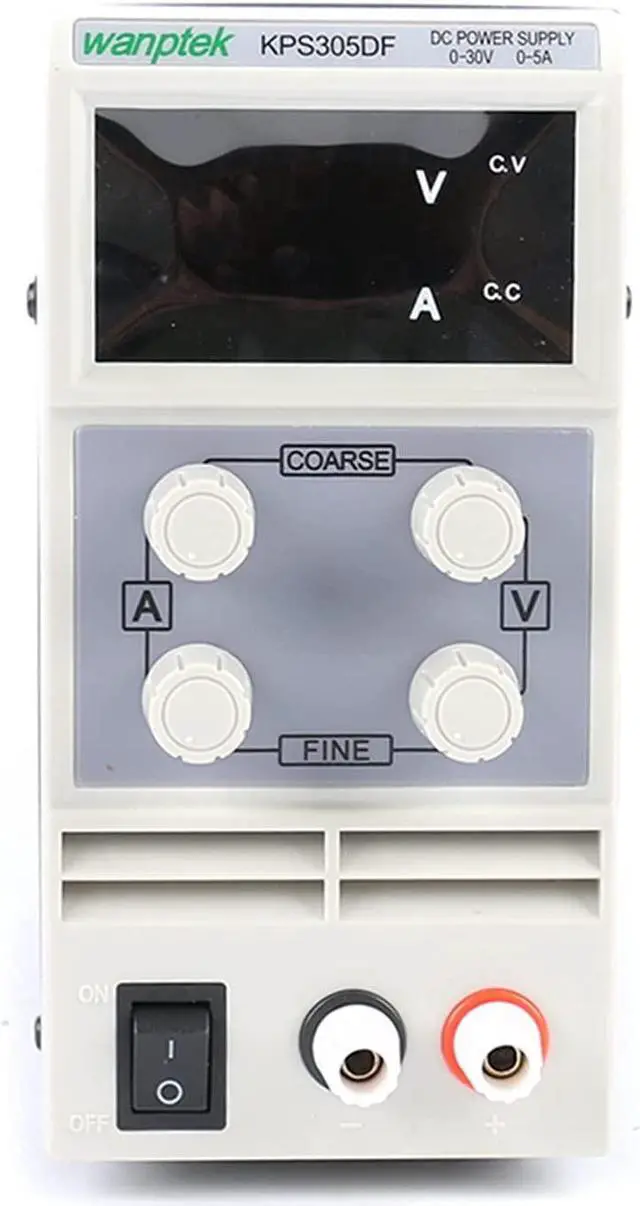

YKQJS-YQ benchtop Power Supply KPS-305D KPS-305DF Mini Adjustable 30V 5A 110V 220V Digital LED DC Power Supply 0.01V 0.001A Laboratory Switching Power Supply DC Voltage Regulator

305D Current display accuracy 0.01A/0.1V
305DF Current display accuracy 0.01A/0.001V
Description
KPS series is a single set of output, high precision double display switch dc power supply.Machines have complete operating protection function, with high performance,low ripple, high stability , light weight and small volume etc. Current limiting protection,can make KPS power supply and load against accidental damage.KPS series power supply with low temperature control circuit, a cooling fan noise is low.( turn on the switch , the fan can not work .the fan needs to work until the temperature )
Special point
1, have complete operating protection function
2, highly efficient, low ripple, small volume, light weight
3, double display voltage, current, and high precision
4, voltage stabilization, current limiting, simple operation
5, dual voltage input and convenient choice
6, temperature control fan heat dissipation, low noise
7, Double potentiometer more precise adjustment
Technical indicators
Input voltage:AC 110V/220V/50/60Hz
Output voltage:0 - 30V
Output current:0 - 5A
Voltage resolution:0.1V/0.01V
Current resolution:0.01A/0.001A
Power effect:CV1%+10mV
Effect of load:CV1%+10mV
Ripple and noise:Vp-p1%
Voltage display precision:±1%+1digits
Current display precision:±1%+2digits
Net/gross Weight (KG):2.0
Volume (mm):81WX165HX220L
Operating environment:(-10-45) Rh<;90%
Working time:a long time

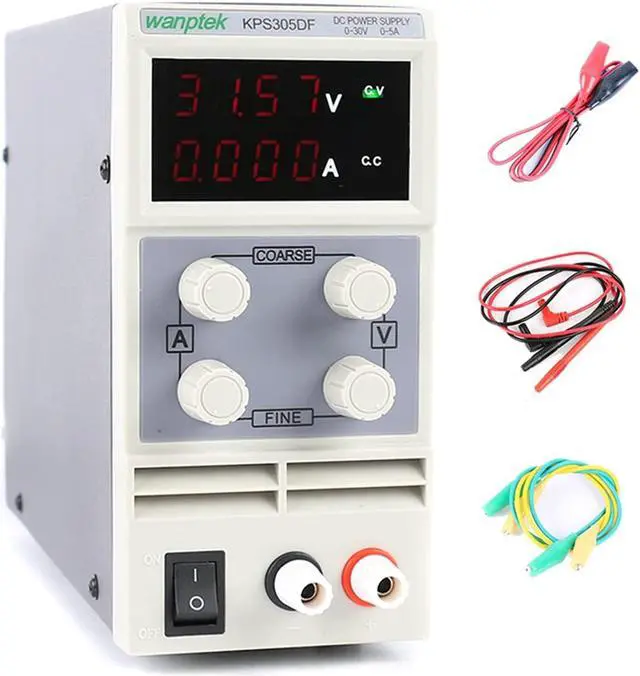

Packing list:
1 x DC Power Supply(305D or 305DF)
1 x User Manual
1 x Test line
2 x Test line clamp
2 x Probe
1 x Power line(EU/AU/US)
