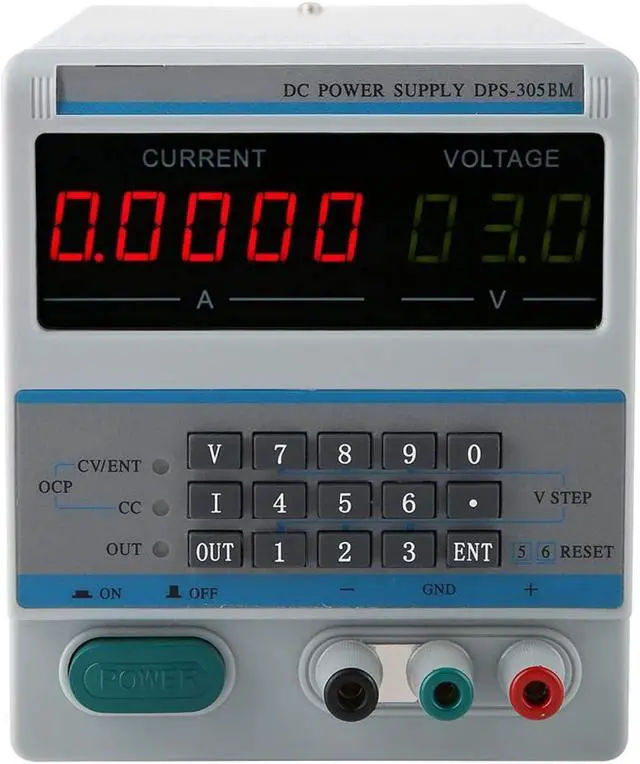

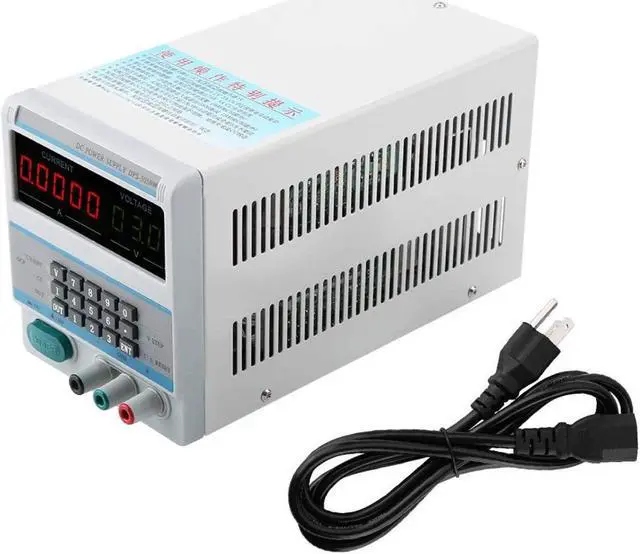

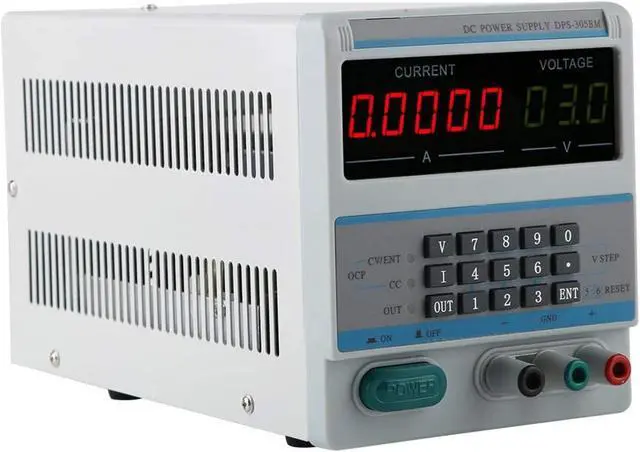

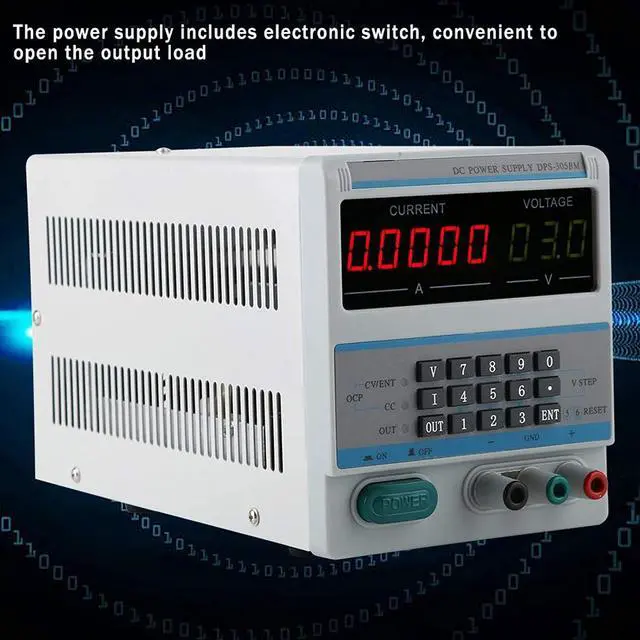

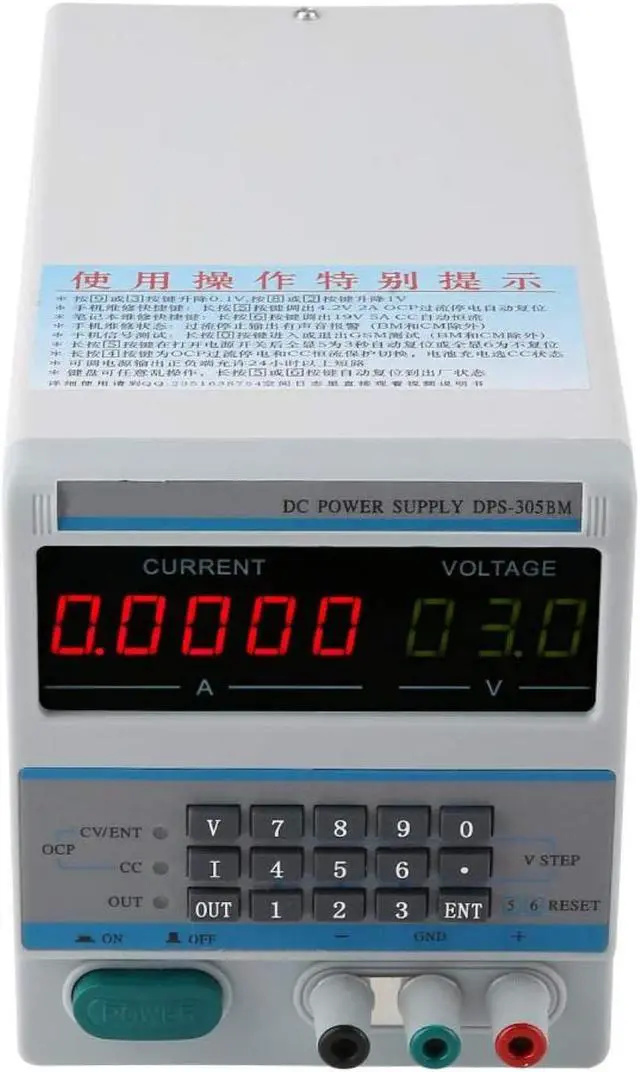

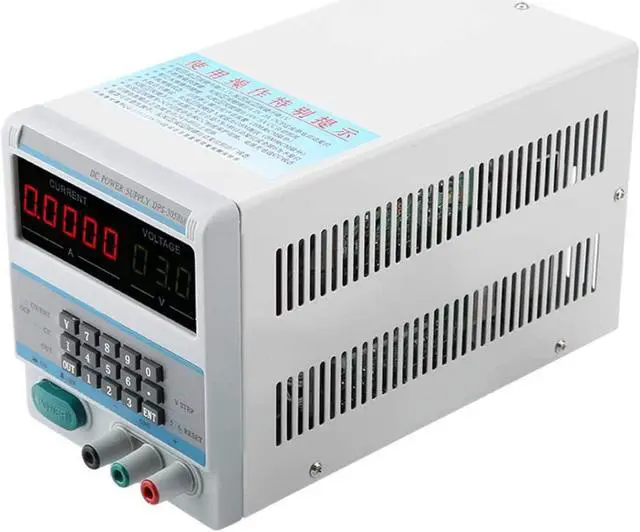

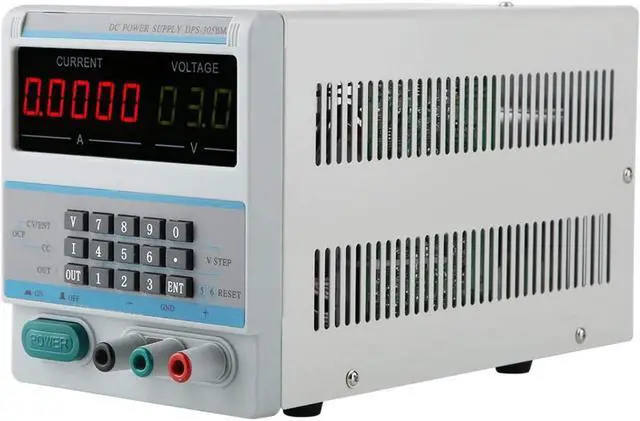

Miskall DC Regulated Switching Power Supply Designed for Communication Equipment Power Supply Digital Stabilized Power Supply(US Plug)
- Desktop Bench Power Supply Power Converter, Volts fixed ouput, providing up to maximum currentwork with cellular phones, scanner, radio and so on.
- Noise Offset Design& Cigarette Lighter Socket There is a Noise Off-Set control that can be adjusted to eliminate pulse noise from the power supply. It designed socket adapter to supply power to portable device.
- Safety Protection It has short-circuit protection, over-current protection to ensure the safety of the operator and any connected electrical devices. It's built-in cooling fan to prevent the device from overheating.
- Accurate, Compact &Lightweight Design Solid and well built, weight about 1.5kgs, with robust metal casing , rubber feet stand. Accurate Readout and quick response,one-key switching of voltage and current display
- Manufacturer's Warranty product guarantee, customer service provided. Please contact Team for any other questions.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Condition: 100% Brand New
Model: DPS-305BM
Power Supply Voltage: 220V ± 10%50/60Hz (110V order)
Working Conditions:
Relative Humidity: 80%
Temperature: 0-40
Storage Conditions:
Temperature: -10-70
Relative Humidity: 70%
Output Voltage: 0-30V continuously adjustable (resolution 0.1V)
Precision of Output Voltage: 0.5%+2
Voltage Stability: <0.01%+3mv
Load Stability: <0.01%+3mv
Recovery Time: 100us
Ripple and Noise Voltage: < 1% VP-P
Temperature Coefficient: <300PPM/C
Constant Current Value: 0-5A
Constant Current Output Current: 0-Nominal Value of Continuous Adjustable (Resolution 0.01A)
Constant Current Output Precision: ±(1%+2)
The Current Stability: <0.1%+3mA
Load Stability: <0.1%+3mA
Ripple and Noise Current: < 1% VP-P
OCP Current Values: 0-5A, accuracy: ±(1%+2)
Voltage Display Precision: ±(0.5%+2) (constant current state)
Optional Style: EU Plug, US Plug
Weight: Approx. 2039g / 71.9oz
Size: Approx. 265 * 128 * 150mm / 10.4 * 5.0 * 5.9in
Package List:
1 * DC Stabilized Power Supply
1 * Power Plug
Note:
New-style and old-style are shipped randomly
Condition: 100% Brand New
Model: DPS-305BM
Power Supply Voltage: 220V ± 10%50/60Hz (110V order)
Working Conditions:
Relative Humidity: 80%
Temperature: 0-40
Storage Conditions:
Temperature: -10-70
Relative Humidity: 70%
Output Voltage: 0-30V continuously adjustable (resolution 0.1V)
Precision of Output Voltage: 0.5%+2
Voltage Stability: <0.01%+3mv
Load Stability: <0.01%+3mv
Recovery Time: 100us
Ripple and Noise Voltage: < 1% VP-P
Temperature Coefficient: <300PPM/C
Constant Current Value: 0-5A
Constant Current Output Current: 0-Nominal Value of Continuous Adjustable (Resolution 0.01A)
Constant Current Output Precision: ±(1%+2)
The Current Stability: <0.1%+3mA
Load Stability: <0.1%+3mA
Ripple and Noise Current: < 1% VP-P
OCP Current Values: 0-5A, accuracy: ±(1%+2)
Voltage Display Precision: ±(0.5%+2) (constant current state)
Optional Style: EU Plug, US Plug
Weight: Approx. 2039g / 71.9oz
Size: Approx. 265 * 128 * 150mm / 10.4 * 5.0 * 5.9in
Package List:
1 * DC Stabilized Power Supply
1 * Power Plug
Note:
New-style and old-style are shipped randomly
