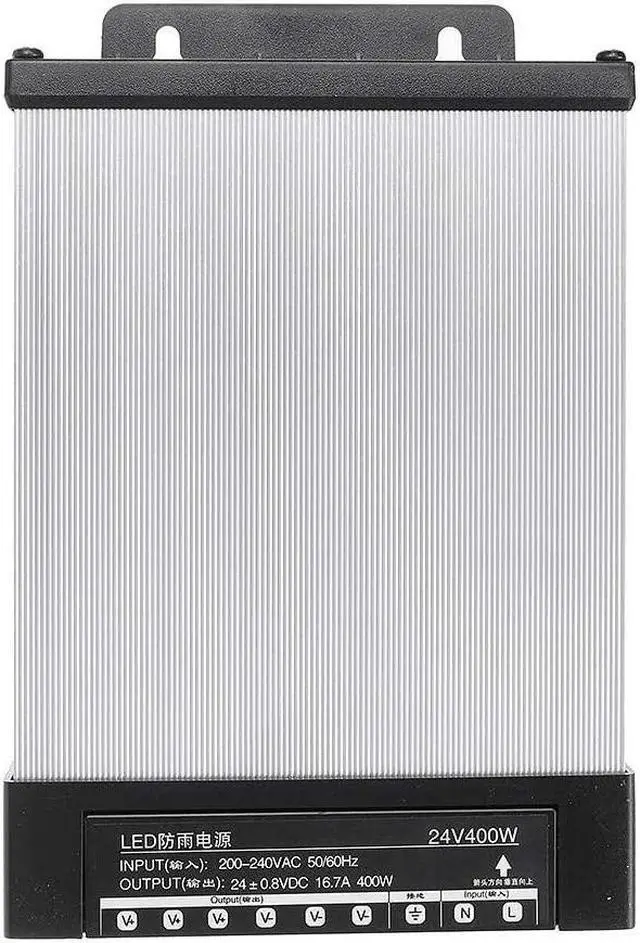

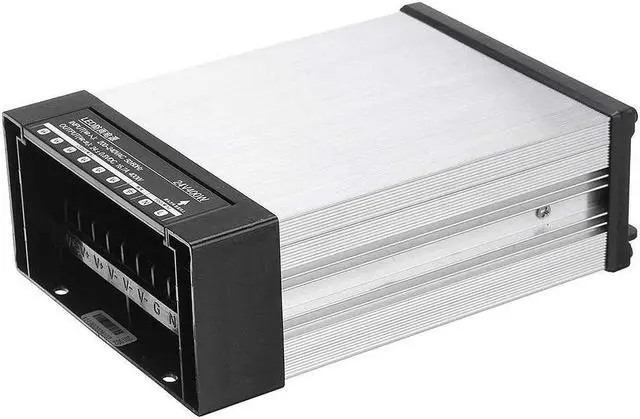

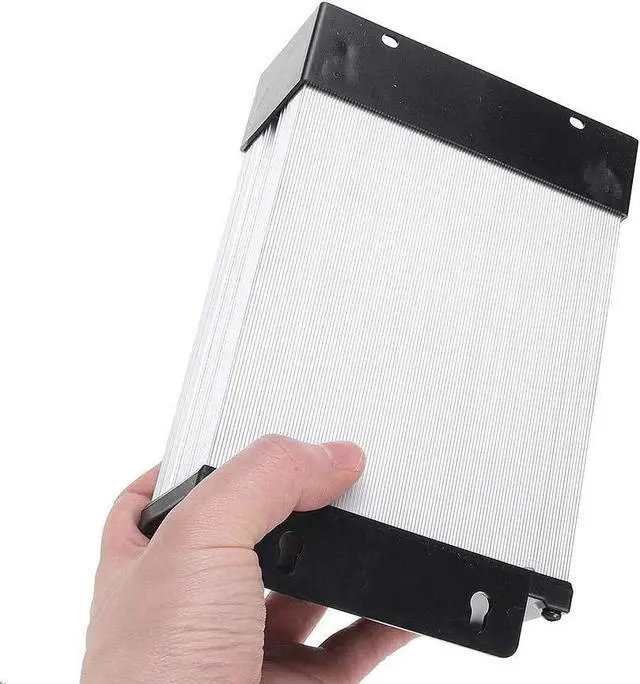

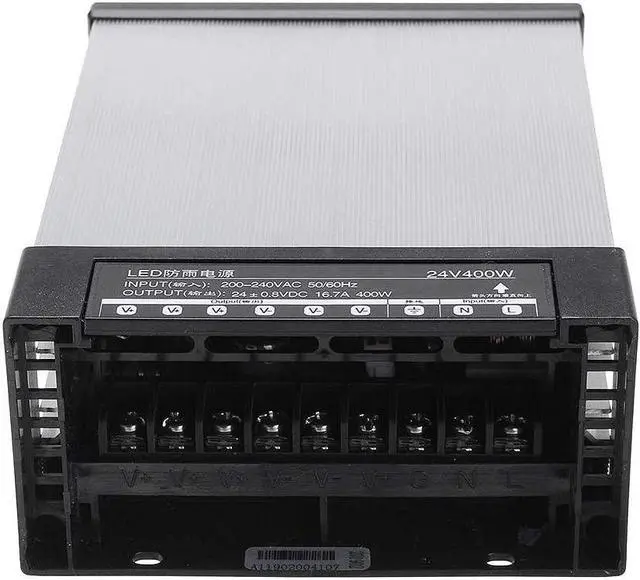

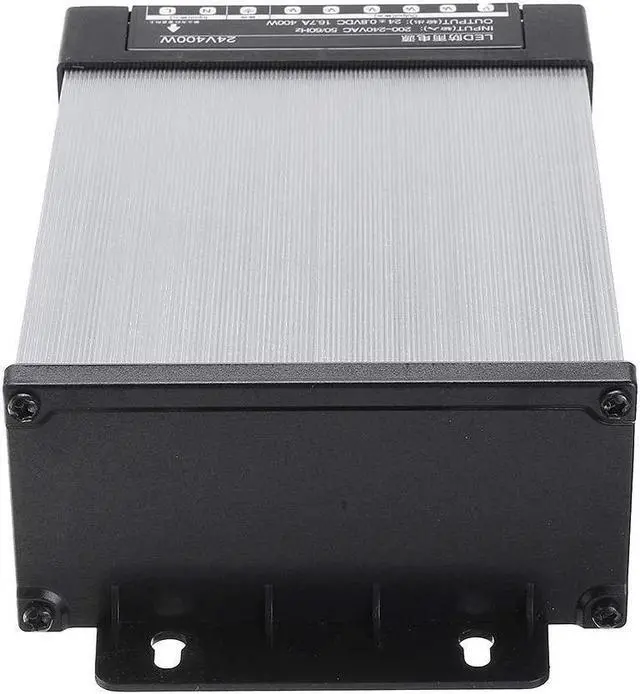

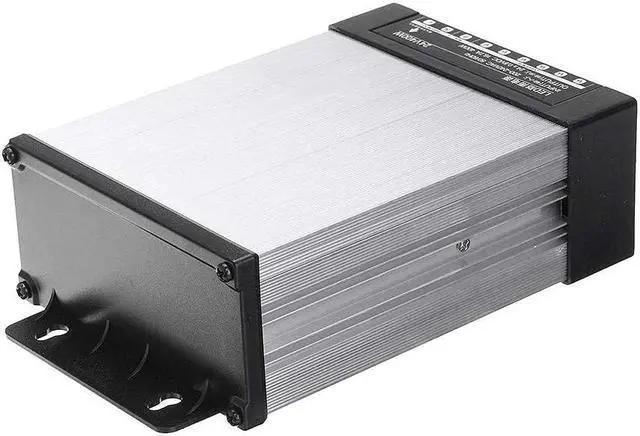

SHELLSK Power Module Parts AC200-240V to DC24V 17A 400W LED Rainproof Switching Power Supply 165 * 120 * 58mm for Maintenance

Technical Parameters:
Project Technical indicators Remarks
Basic requirements 24V 16.7A 400W Outdoor rainproof
Dimensions : 165*120*58mm
Operating temperature : -10°C to +50°C, 20% to 95% RH (no condensation)
Storage temperature : -20°C to +85°C, 20% to 95% RH (no condensation)
Temperature Coefficient : 0.02~0.05%/°C
Heat dissipation method : Fan assisted cooling
Rated voltage range 220VAC AC
Input voltage range 200/240V AC
Input frequency range 50~60Hz Except DC input
Input undervoltage protection : 115 to 150% intermittent mode
Input undervoltage recovery : Automatic recovery
Input overvoltage protection : 115 to 150% intermittent mode
Input overvoltage recovery : Automatic recovery
Electric shock 1% Maximum input voltage full load
Machine efficiency 0.5% Rated input full load
Output voltage range 24V ± 0.5% Three channel output
Output current 16.7A Three channel output
Ripple and noise : 150 mVp-p
Rise Time : 50 ms
Output delay : 5 S
Voltage regulation : 0.5%
Load Regulation : 1%
Output overcurrent protection : Current drooping
Output short circuit protection : IGBT
Output overvoltage protection : Soft start protection
Input to output : >30M
Input to the earth : >30M
Output to the earth : >30M
Insulation resistance : >50M
MTBF : 100,000H
Description:
1. LED switching power supply using pulse width modulation (PWM) switching technology designed to ensure power supply stability and high efficiency.
2. Product interference, through the EMC testing, ripple 50MV.
3. Efficiency above 80%, temperature 25 °C.
4. LED switching power supply with overvoltage protection, short circuit protection, overload protection.
5. Constant current output to ensure the stability of the power, so that LED lighting effects better and live longer.
6. Products have the anti-interference ensures long-life LED strips
