HXY2020 Power Supply Module Positive Negative Dual Power Supply Module with Switching 12V Output Single Power Supply to Dual Power Supply Voltage Conversion Module
- Low ripple
- Low power consumption
- Ultra small volume
- Fixed output voltage
- Dual voltage output
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter:

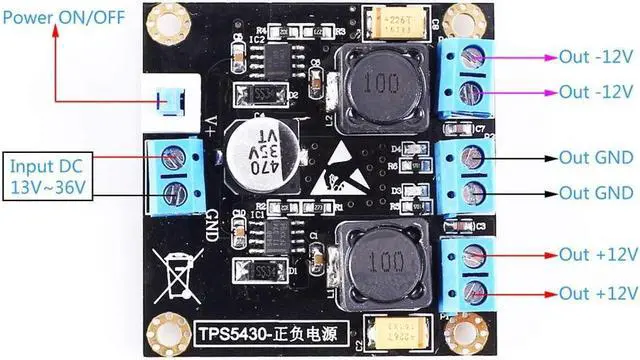

Input voltage:DC 13V~36V
Output voltage:DC -12V and +12V
Output power:30W(Need heat sink when more than 10W)
Conversion efficiency:>88%
Output ripple:<;80mV
Work frequency:500KHz
Stand-by current:10mA
Operating Temperature:-20~85
Operating Humidity:5%~95%RH

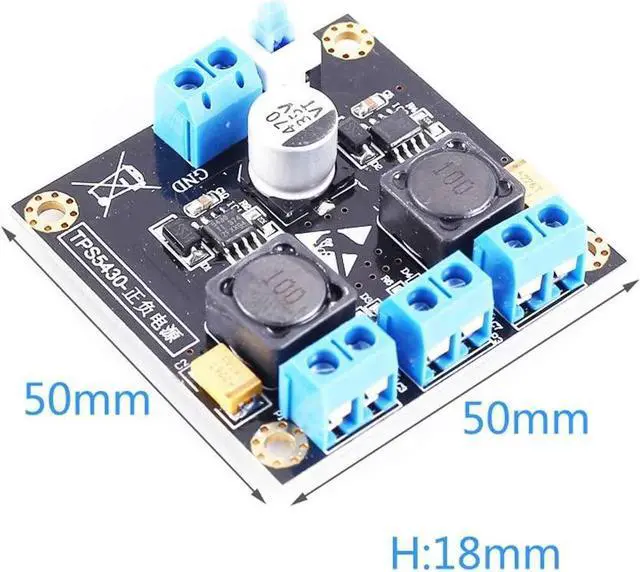

PCB Size:50*50*18mm
Input voltage:DC 13V~36V
Output voltage:DC -12V and +12V
Output power:30W(Need heat sink when more than 10W)
Conversion efficiency:>88%
Output ripple:<;80mV
Work frequency:500KHz
Stand-by current:10mA
Operating Temperature:-20~85
Operating Humidity:5%~95%RH
PCB Size:50*50*18mm
