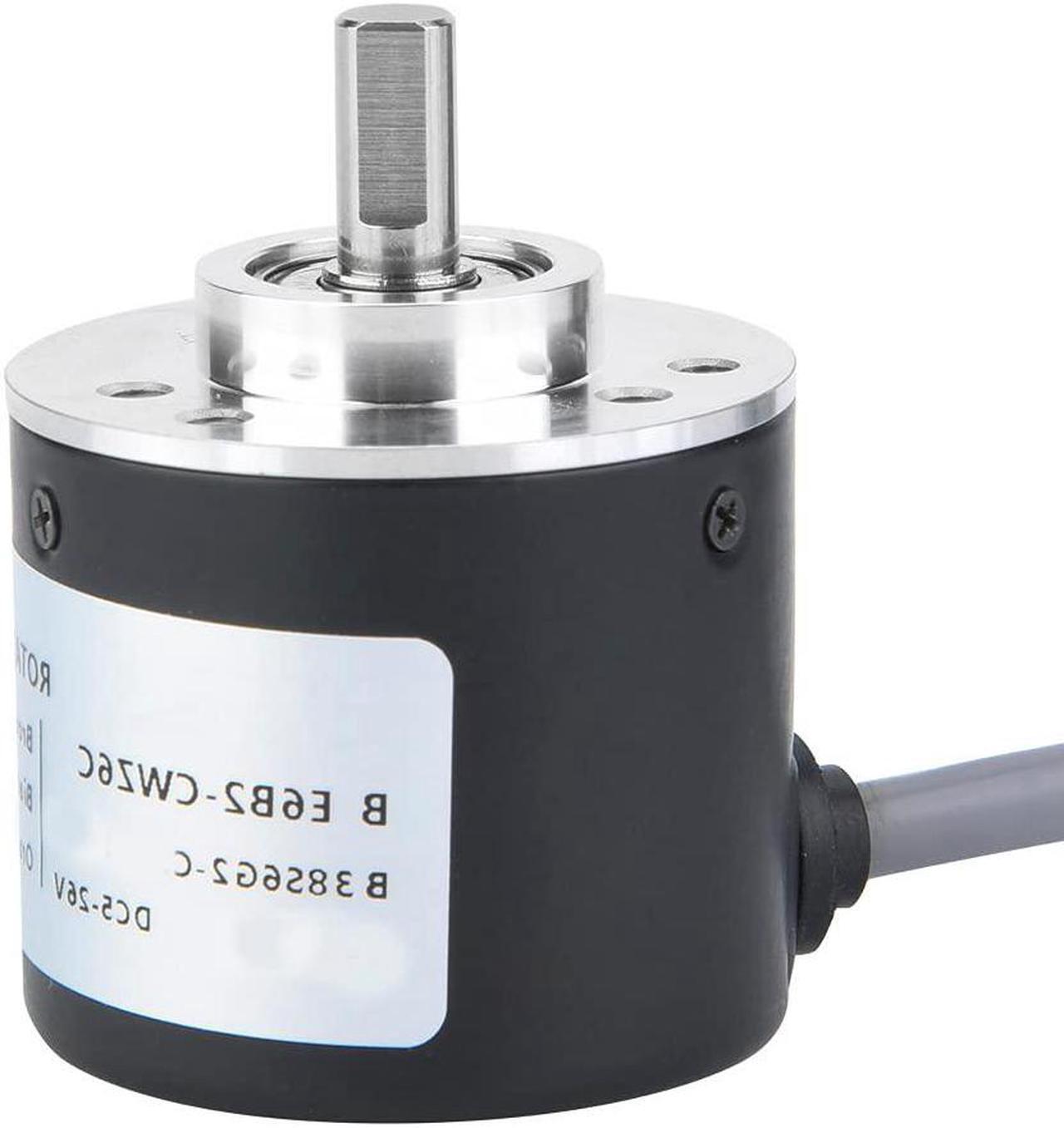

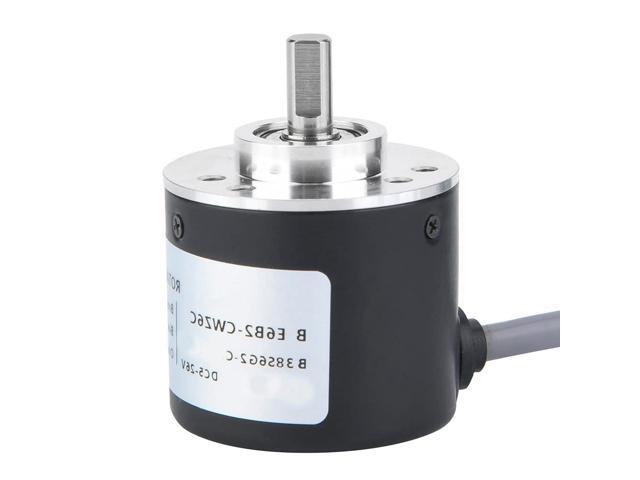

Encoder, General-Purpose Encoder Cable Length 2m 38mm Diameter ASIC Devices for Power Supply Reverse Wiring Protection Conversion(600P/R)

Features:

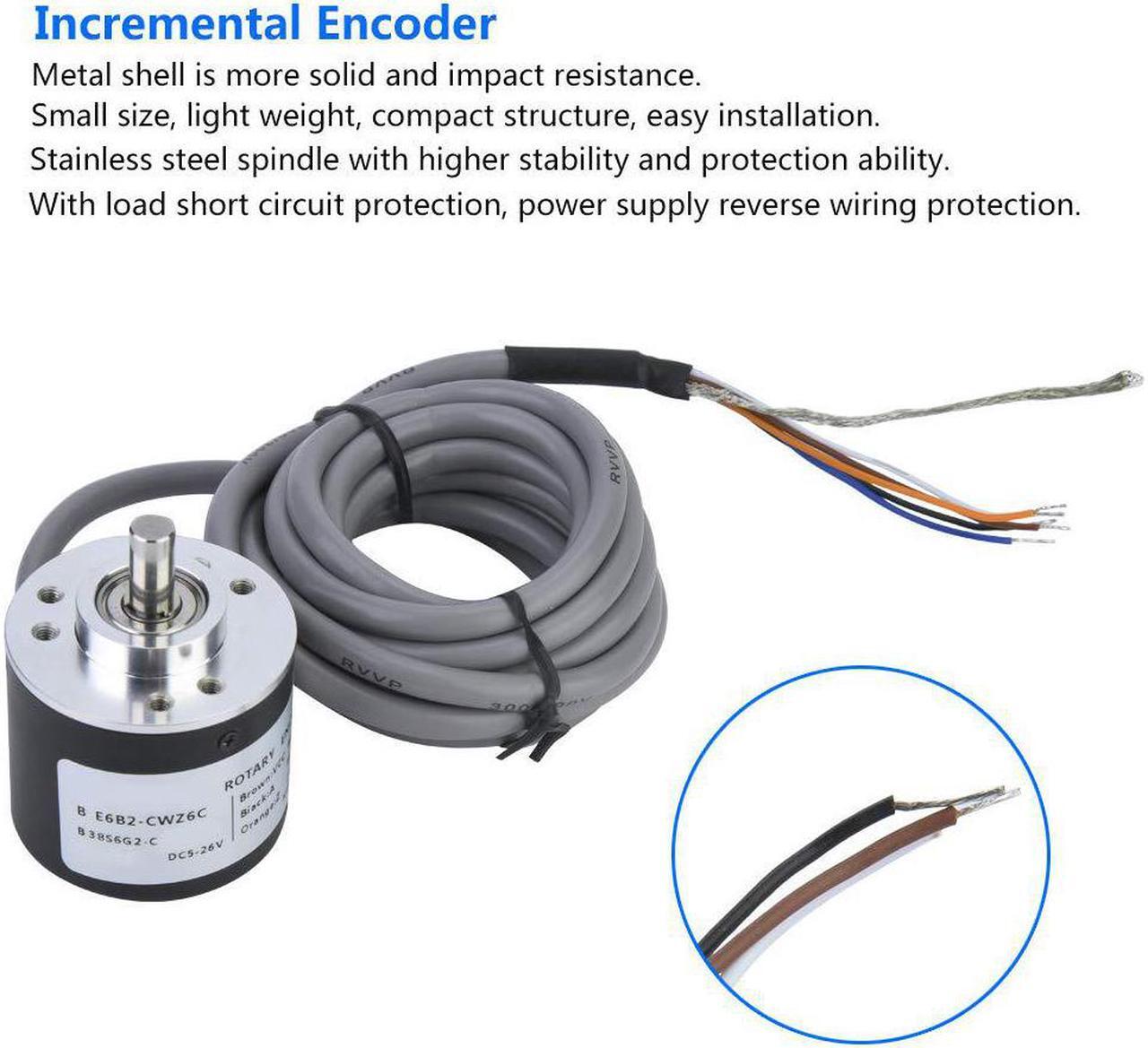

High quality incremental encoder with diameter of 38mm.
Internal ASIC devices, high reliability, long life, strong anti - interference performance.

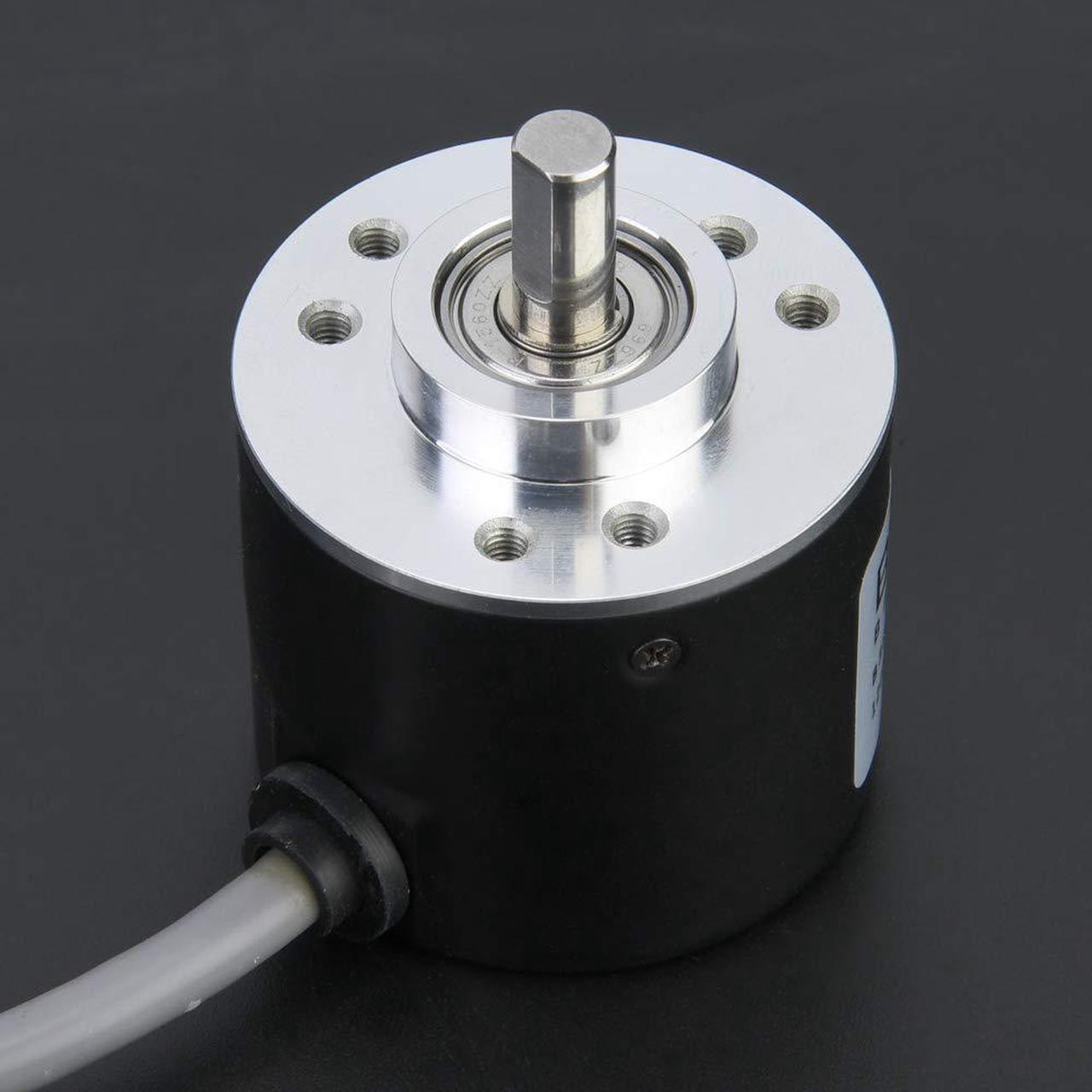

Stainless steel spindle with higher stability and protection ability, metal shell is more solid and impact resistance.
Small size, light weight, compact structure, easy installation.
It uses corresponding power supply voltage DC5 ~ 26V (open collector output type).
It can realize axial load, radial shaft loading 30N, thrust shaft loading 20N.
With load short circuit protection, power supply reverse wiring protection.

Specification:
Item Name: Incremental encoder
Model: E6B2-CWZ6C
Material: alloy (shell), aluminum (body)
Input voltage: DC5 ~ 26V(open-collector output type)
Output mode: voltage output, collector output, complementary output, push pull output, long line drive output, differential output, fork output
Output phase: A, B, Z phase
Outer diameter: 38 mm
Thrust shaft diameter: 6mm

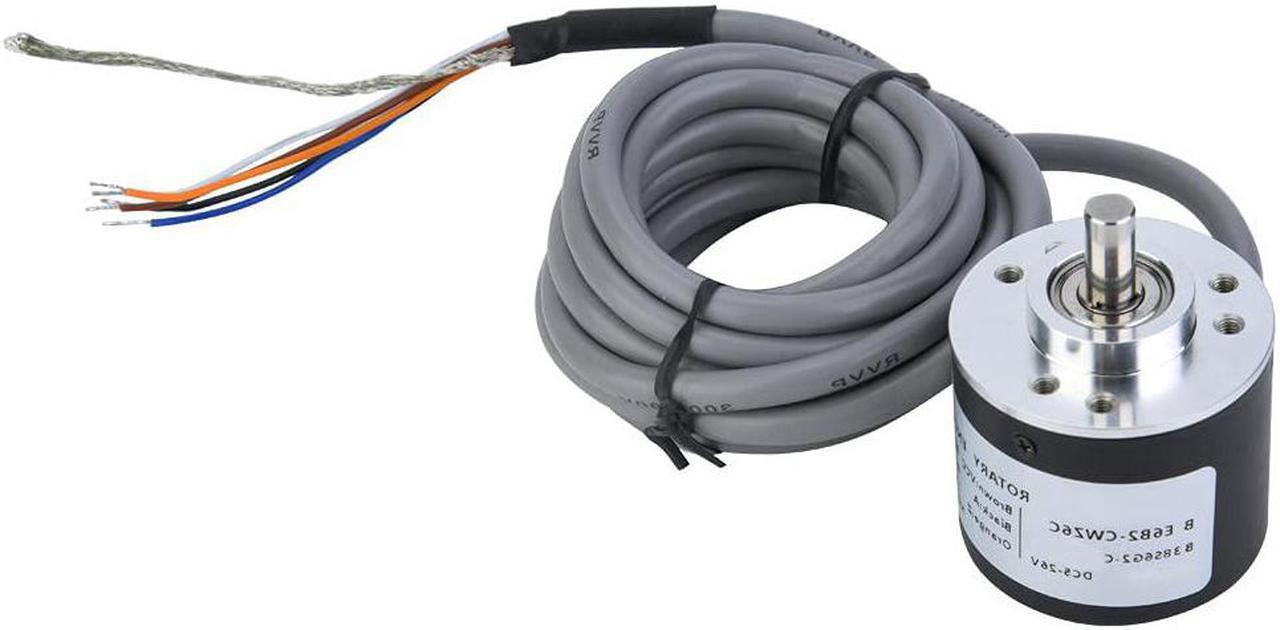

Standard length of wiring wire: 2m
Resolution (pulse/rotation) : 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600, 5000 (optional)

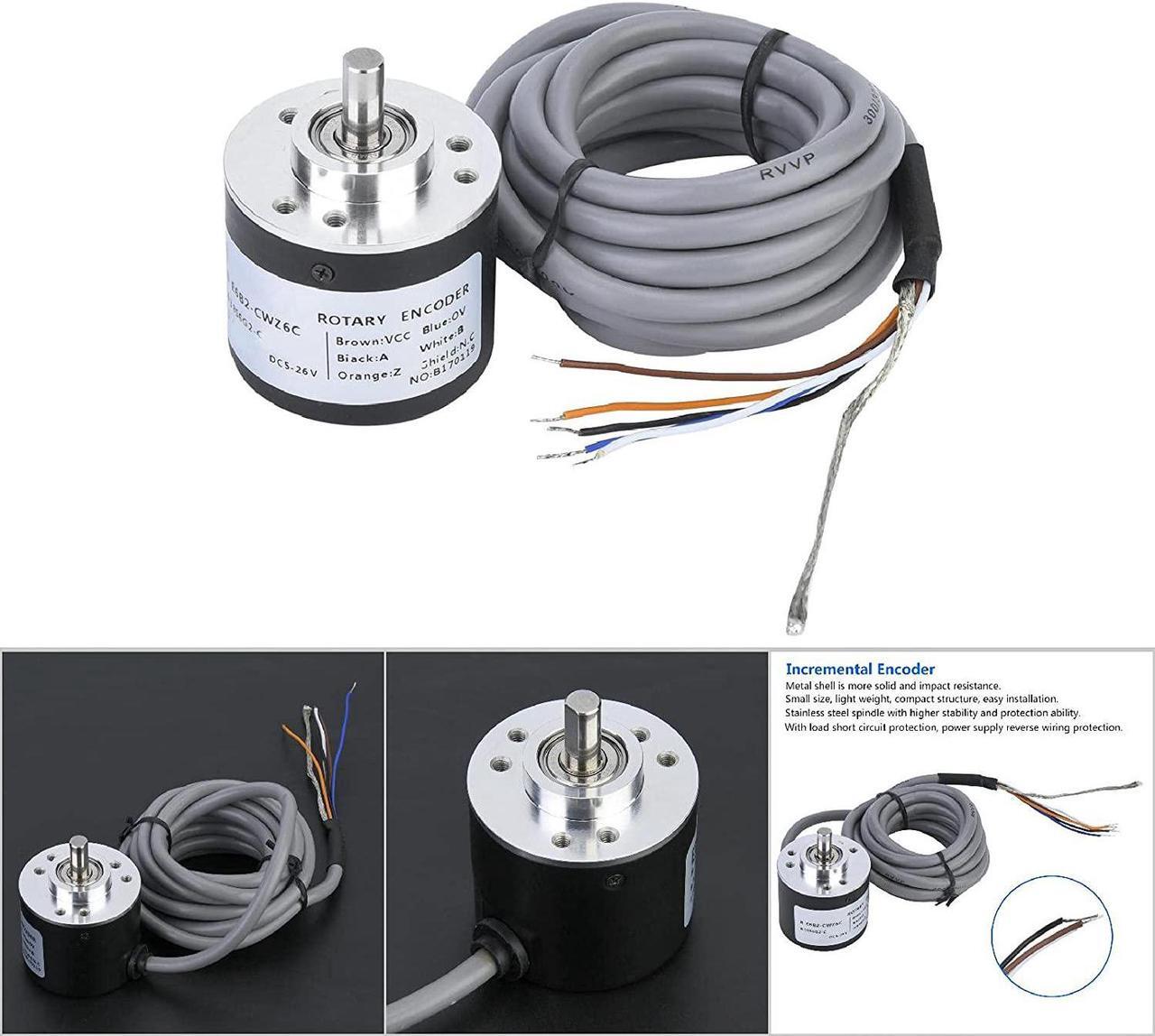

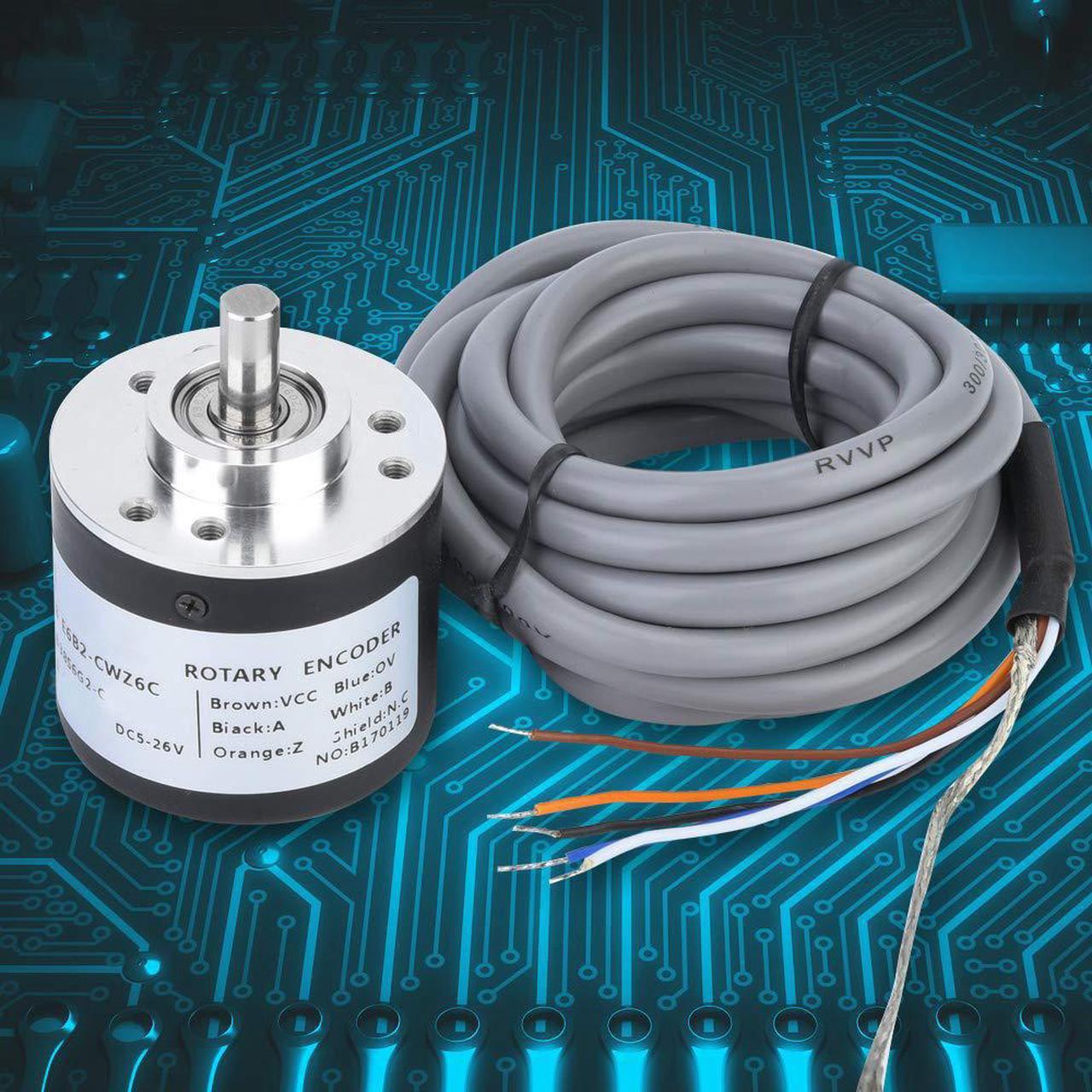

Wiring method:
Brown line: DC5-26V (positive pole)
Blue line: 0V (negative pole)
Black line: A(phase)
White line: B(phase)
Orange line: Z(phase)
Shielding network cable: N.C (ground)
Phase Difference Between Outputs: 90°±45° between A and B (1/4 T ± 1/8 T)
Output Configuration: NPN open-collector output
Output Capacity: applied voltage: 30 VDC max.; synchronous current: 35 mA max.; residual voltage: 0.4 V max.(at synchronous current of 35 mA)
Maximum Response Frequency(*3): 100kHz
Rise and Fall Times of Output: 1 s max. (Control
