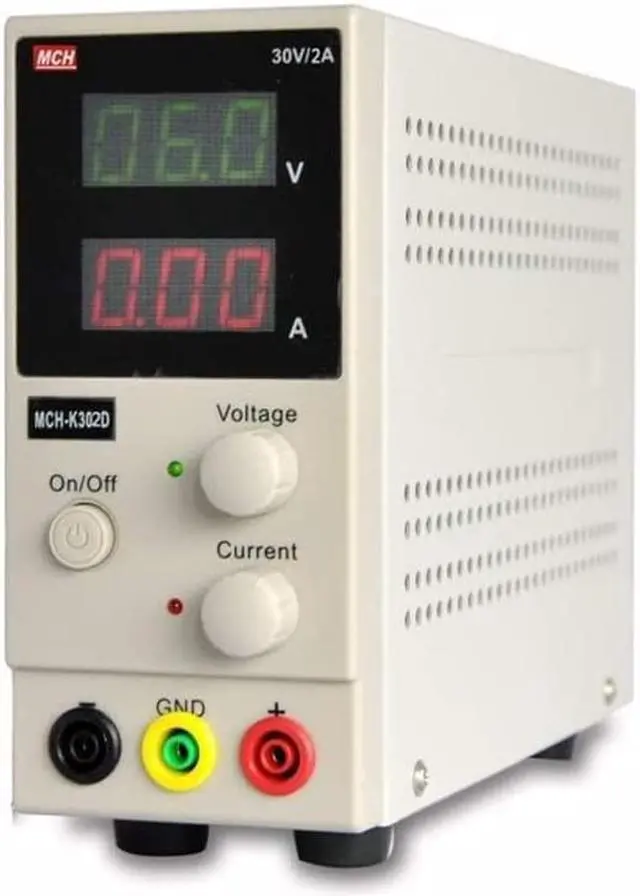

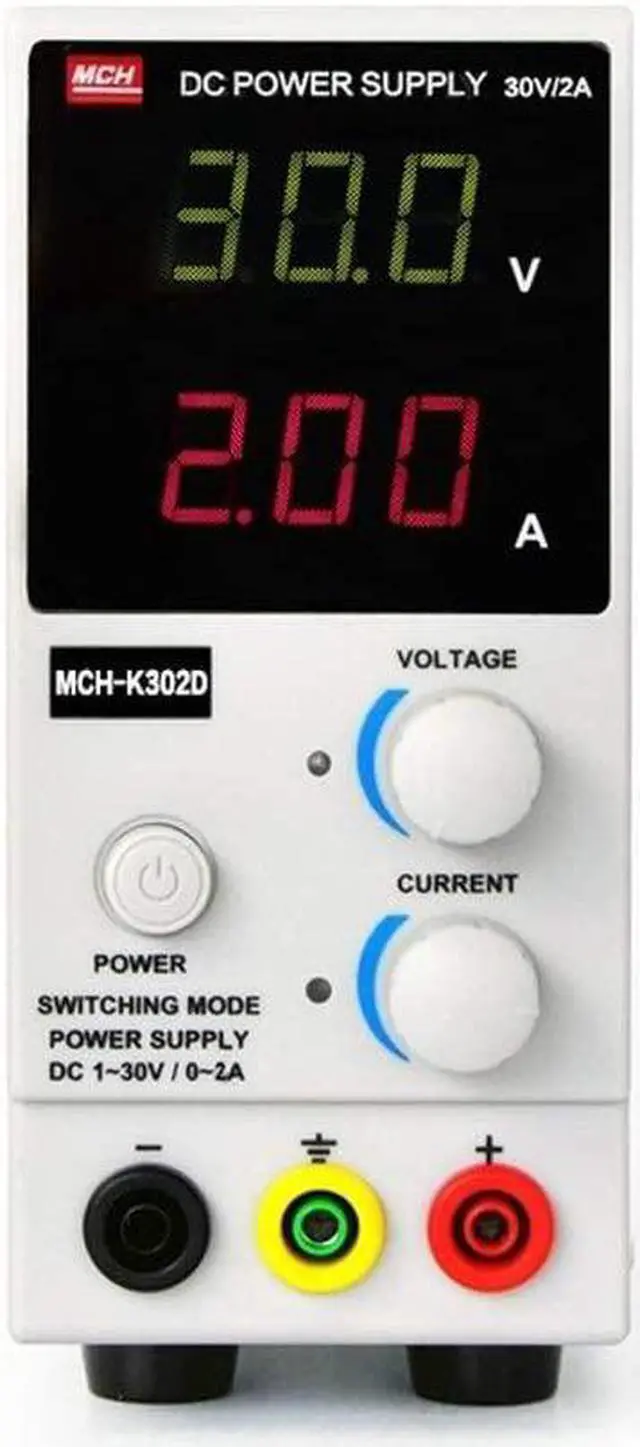

SECJSKJ Dc Power Supply Regulated Power Supply Adjustable DC 30V Continuous Adjustable Mobile Phone Repair Power Supply MCH-K302D Dc Power Supply Adjustable (Size : 110V)

Model: MCH-K302D
Output current: 0-2A(A)
Input voltage: 110V/220V(V)
Output voltage: 0-30 (V)
Output power: 60 (W)
Frequency range: 60Hz/50Hz
Voltage step: 10mV
Current step: 1mA
Optional voltage: 110V / 220V
Working temperature: -10 ° C ~ 60 ° C
Working humidity: less than 90%
Product Certification: CE, ISO
Efficiency: 85%
Dimensions: 22 (D) x 7 (W) x 16 (H) cm

-Handiness, beautiful, stabilization, high performance, low cost
-High Stability digital display DC power supply
-A full functional output protection function
-Can be continuos output full load
-Current/ voltage adjustable within the nominal value

Instructions for use
Connection of the output port: The test dedicated line will be standard, red is inserted into the "+" port, and black is inserted into the "-" port.
Set a constant voltage: Keep the test leads open and adjust the voltage knob to get the desired voltage.
Set Constant Current: Place the voltage and current knobs on a small value stand, short the test leads, and adjust the current knob to get the desired current.
Packing list
?Host × 1 power cord × 1 manual × 1 certificate × 1
Use / application area
1. Factory product testing aging: such as DC motor, DC fan, car DVD, car audio, resistors, capacitors and other products test aging.
2. Battery charging industry: Perfectly used in the battery charging industry, it provides constant current charging, then converts to constant voltage trickle charging, prevents overcharging, protects the battery, and effectively extends the battery life.
3. Inverter industry: Overcome the stuck problem of linear power relay conversion, extremely fast response speed, and meet the instantaneous changing load requirements.
4. LED manufacturing industry: LED testing, aging.
5. Everything else needs DC regulated power supply.
