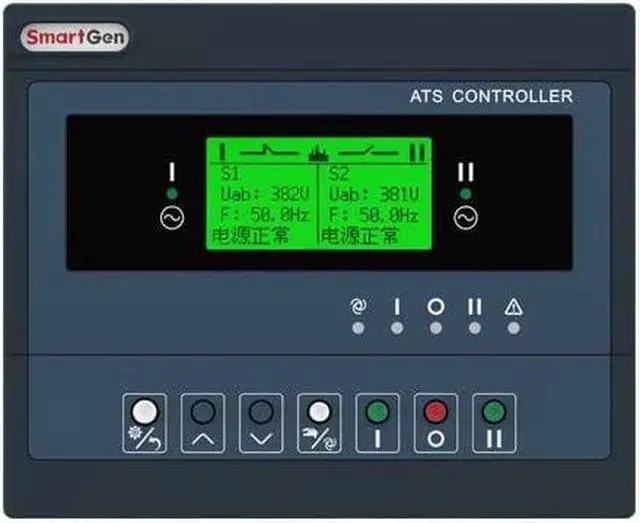

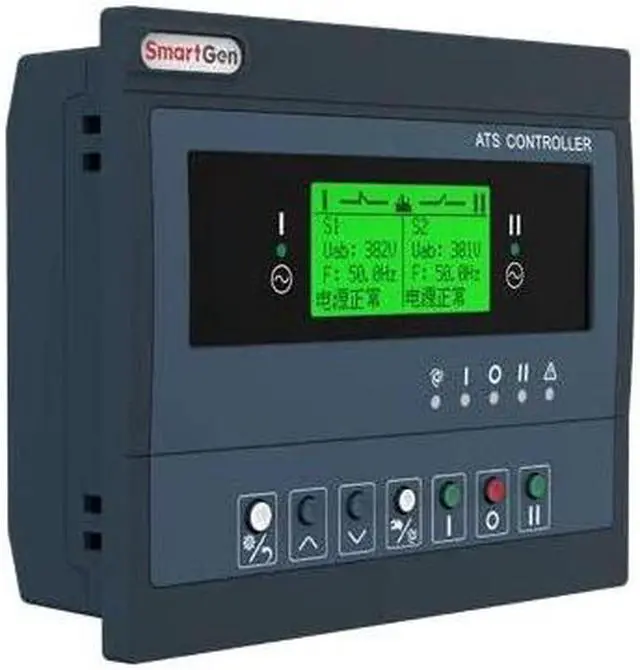

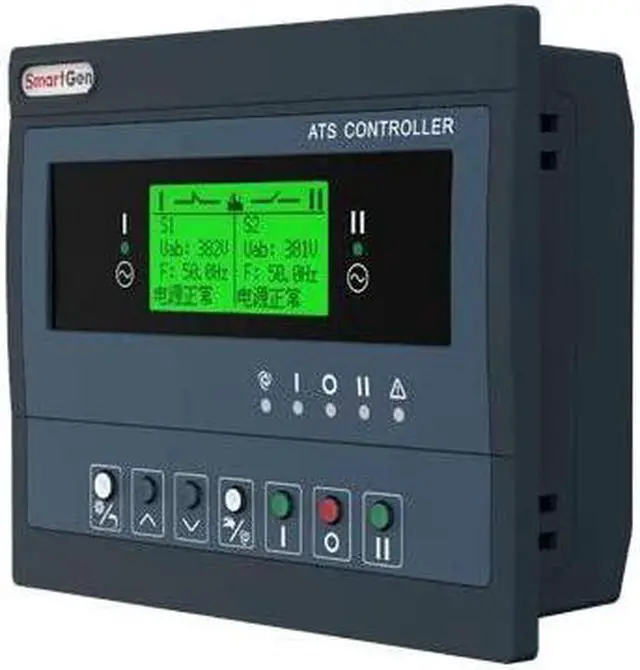

SmartGen HATC60 ATS controller, AC/DC power supply, designed for Socomec ATS

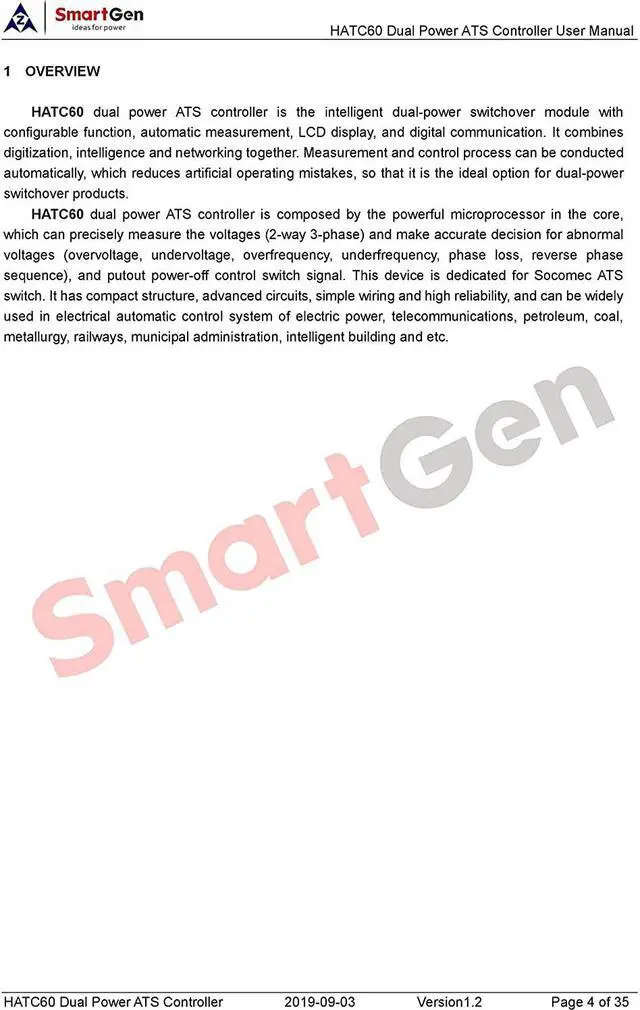

HATC60 dual power automatic shift controller is the intelligent dual-power switchover module with configurable function, automatic measurement, LCD display, and digital communication. It combines digitization, intelligence and networking together. Measurement and control process can be conducted automatically, which reduces artificial operating mistakes, so that it is the ideal option for dual-power switchover products.

HATC60 dual power ATS controller is composed by the powerful microprocessor in the core, which can precisely measure the voltages (2-way 3-phase) and make accurate decision for abnormal voltages (overvoltage, undervoltage, overfrequency, underfrequency, phase loss, reverse phase sequence), and putout power-off control switch signal. This device is dedicated for Socomec ATS switch. It has compact structure, advanced circuits, simple wiring and high reliability, and can be widely used in electrical automatic control system of electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building and etc.

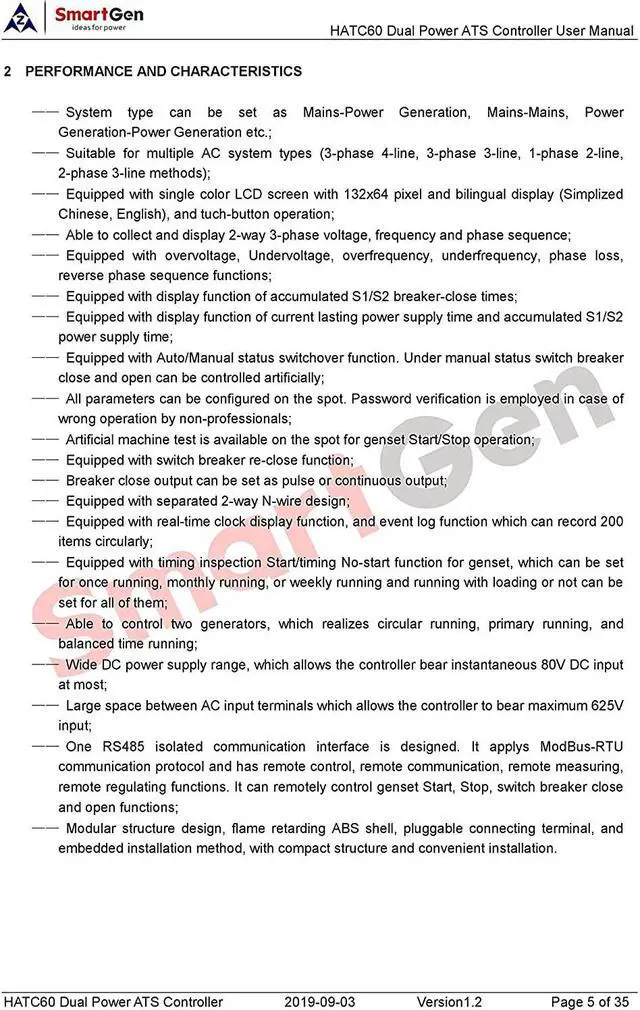

PERFORMANCE AND CHARACTERISTICS
- System type can be set as Mains-Power Generation, Mains-Mains, Power Generation-Power Generation etc.;
- Suitable for multiple AC system types (3-phase 4-line, 3-phase 3-line, 1-phase 2-line, 2-phase 3-line methods);
- Equipped with single color LCD screen with 132x64 pixel and bilingual display (Simplized Chinese, English), and tuch-button operation;
- Able to collect and display 2-way 3-phase voltage, frequency and phase sequence;
- Equipped with overvoltage, Undervoltage, overfrequency, underfrequency, phase loss, reverse phase sequence functions;
- Equipped with display function of accumulated S1/S2 breaker-close times;
- Equipped with display function of current lasting power supply time and accumulated S1/S2 power supply time;
