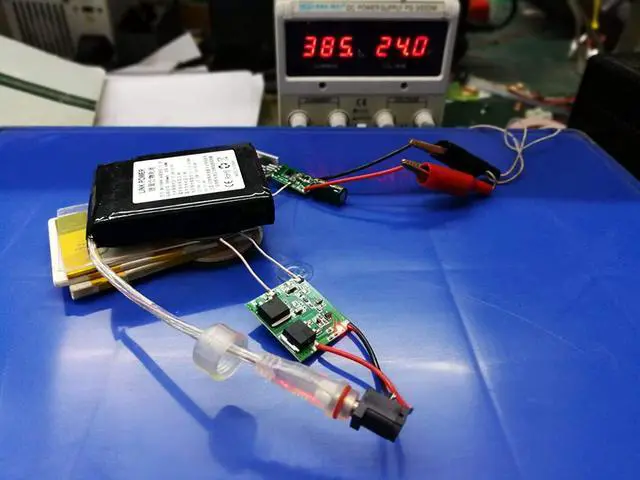

This module is a DC remote charging module, and the circuit is simple and practical.
The main technical parameters:
The transmission voltage is designed with a wide voltage: 24V
Transmitter module size: 17*28mm
Transmitting coil: outer diameter 50mm thickness 3.5mm
Receiver module size: 30mm*36mm*6mm
Receiver coil size: outer diameter 50mm thickness 3.5mm
Sensing distance:
10mm~20mm
Receive output 12V1A when the distance is 10mm.
Note: This distance should be greater than 10mm!
