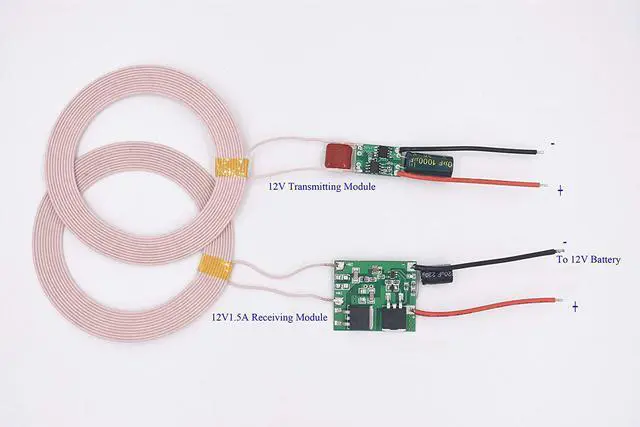

Taidacent 12V Power Supply 12V1.5A Lithium Battery Wireless Charging Module Wireless Power Supply Module (12V1.5A)
- This module has the advantages of large output power, no heat generation, etc.
- The transmitting coil of this module is a 14uH multi-strand coil. In the case of the same inductance, the outer diameter can be increased, and several receiving modules can be driven at the same time.
- Transmitter module board size: 13mm*20mm; Transmitting coil: 84mm14uH.
- Receiver module size: 35mm*30mm*5.5mm; Receiving coil: 84mm14uH.
- Transmitting voltage: 12V; Receive output directly to 12V battery power-off voltage 12.8V.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
This module has the advantages of large output power, no heat generation, etc.
The transmitting coil of this module is a 14uH multi-strand coil. In the case of the same inductance, the outer diameter can be increased, and several receiving modules can be driven at the same time.
Module parameters:
Transmitter module board size: 13mm*20mm
Transmitting coil: 84mm14uH
Receiving coil: 84mm14uH
Transmitting voltage: 12V
Receiver module size: 35mm*30mm*5.5mm
Receive output directly to 12V battery power-off voltage 12.8V
Receiving distance: 2~10mm
The transmitting coil of this module is a 14uH multi-strand coil. In the case of the same inductance, the outer diameter can be increased, and several receiving modules can be driven at the same time.
Module parameters:
Transmitter module board size: 13mm*20mm
Transmitting coil: 84mm14uH
Receiving coil: 84mm14uH
Transmitting voltage: 12V
Receiver module size: 35mm*30mm*5.5mm
Receive output directly to 12V battery power-off voltage 12.8V
Receiving distance: 2~10mm
