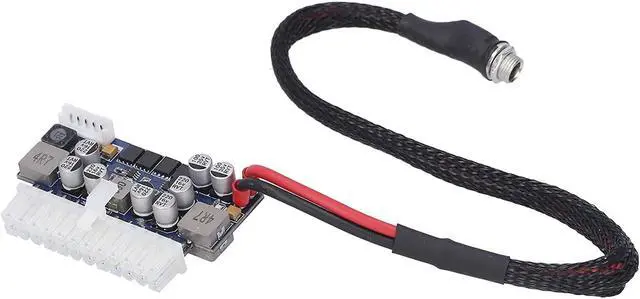

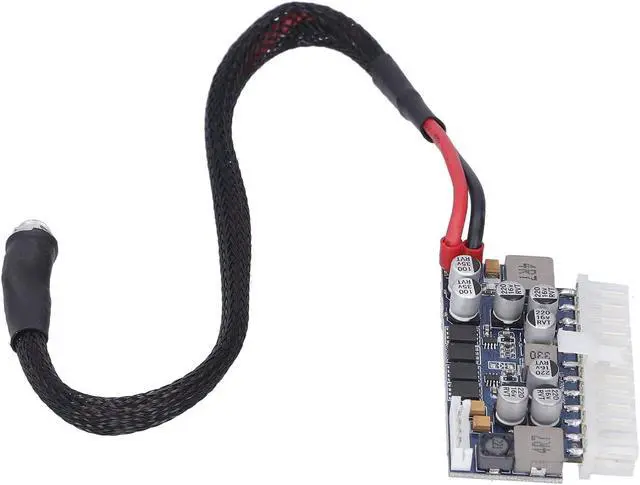

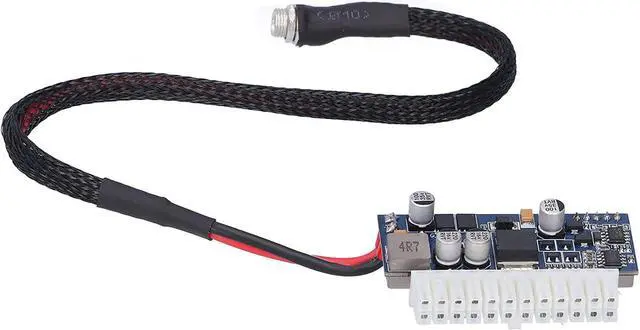

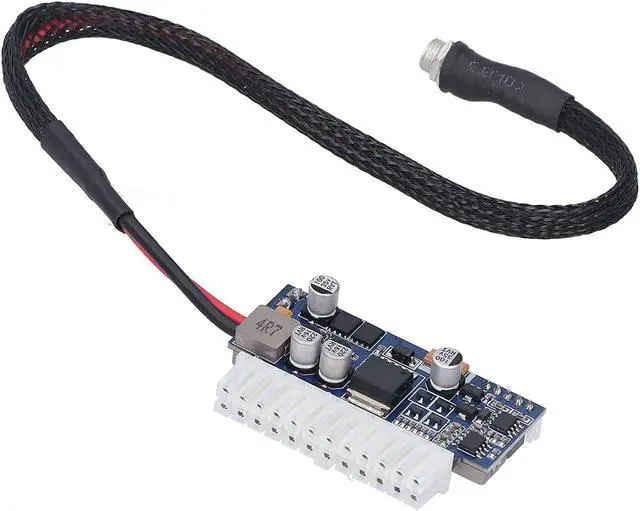

Heayzoki Desktop Computer Power Module,LD-A200WL 19V/200W DC-ATX Power Adapter Board Power Supply Module for HTPC ITX POS Machines,Power Adapter Module with Stable Performance
Limited time offer, ends 01/29 By dazella store
- 200W power adapter board, using highquality PCB material, high performance, high heat resistance, more reliable to use.
- Eliminate 24 unnecessary wires by plugging directly into the motherboard ATX connector.
- It is suitable for small ATX boards to save space in the case without affecting power requirements.
- With overcurrent protection and shortcircuit protection: when the output current reaches the peak current, the output is turned off. When the output is shortcircuited, the output is turned off.
- Suitable for MINI computers, for HTPC computers, for POS machines, ITX cases, network servers, industrial control systems, etc.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Desktop Computer Power Module
Material: PCB
Model: LD-A200WL
Power: 200W
Input Voltage: 17-24V
Output Voltage/Maximum Load: +5VSB/2A, +5VDC/8A, +3.3VDC/8A, +12VDC/12A, -12VDC/0.15A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x for SATA, 1 x IDE, 1 x DC5525
Cable Length:
DC Cable: Approx. 320mm/12.6in
CPU Cable: Approx. 210mm/8.3in
IDE Cable: Approx. 200mm/7.9in
for SATA Cable: Approx. 150mm/5.9in
Protection Function (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/Humidity: -5 - 55/45% - 75%
Storage Temperature/Humidity: -40 - 70/10% - 90%
Applications: for MINI computers, for HTPC computers, for POS machines, for ITX cases, for web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
Package List:
1 x Power Adapter Board
Item Type: Desktop Computer Power Module
Material: PCB
Model: LD-A200WL
Power: 200W
Input Voltage: 17-24V
Output Voltage/Maximum Load: +5VSB/2A, +5VDC/8A, +3.3VDC/8A, +12VDC/12A, -12VDC/0.15A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x for SATA, 1 x IDE, 1 x DC5525
Cable Length:
DC Cable: Approx. 320mm/12.6in
CPU Cable: Approx. 210mm/8.3in
IDE Cable: Approx. 200mm/7.9in
for SATA Cable: Approx. 150mm/5.9in
Protection Function (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/Humidity: -5 - 55/45% - 75%
Storage Temperature/Humidity: -40 - 70/10% - 90%
Applications: for MINI computers, for HTPC computers, for POS machines, for ITX cases, for web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
Package List:
1 x Power Adapter Board
