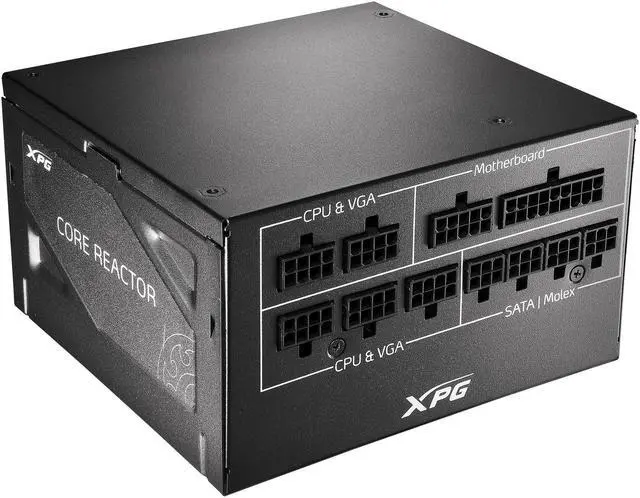

XPG CORE REACTOR COREREACTOR850G-BKCUS 850W Power Supply - Internal - 850 W - 1 Fan(s) - 90% Efficiency

The XPG CORE REACTOR is a modular, 80 PLUS GOLD power supply unit equipped with 100% Japanese Capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and easy for cable management.

The 80 PLUS GOLD certified XPG CORE REACTOR gives you 90% efficiency at 50% load.

The XPG CORE REACTOR modular power supply surpasses Cybenetics ETA PLATINUM and LAMBDA A- standards to meet the exact needs of gamers for power-deliver efficiency and low-noise operation.

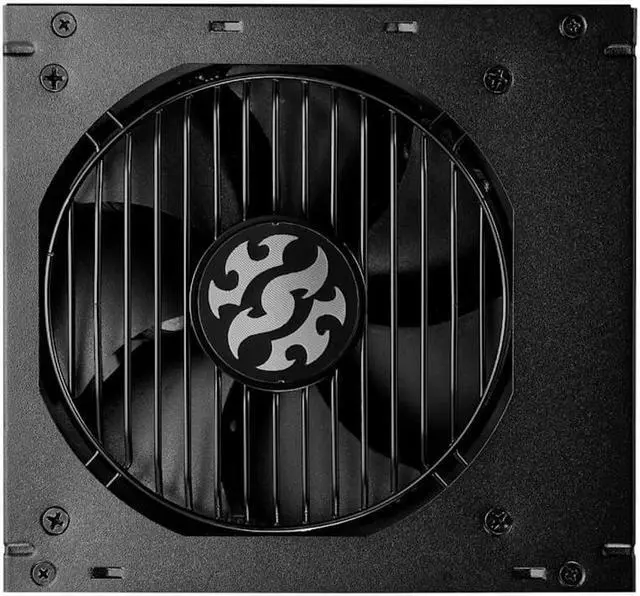

Intelligent fan-curve provides near-quiet operations, even when at full power load. The control starts at a low 3.3v, 660RPM, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.

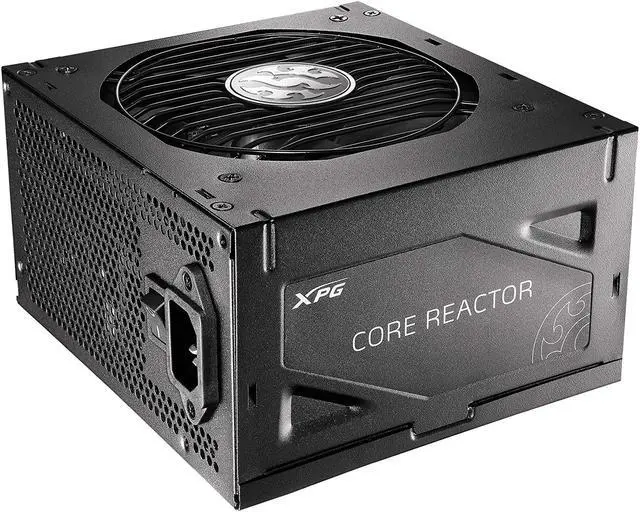

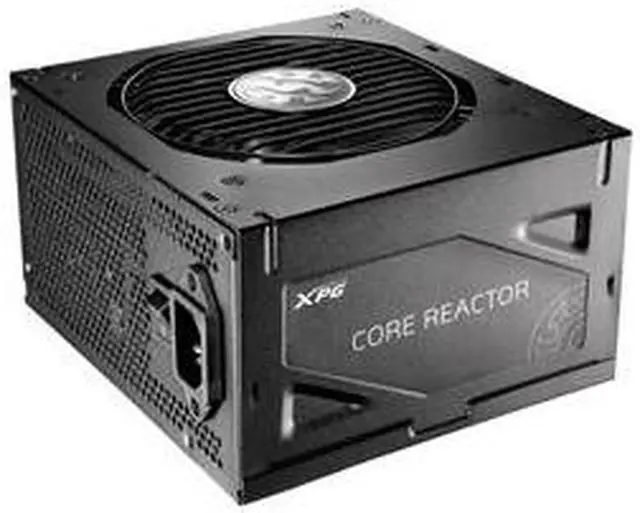

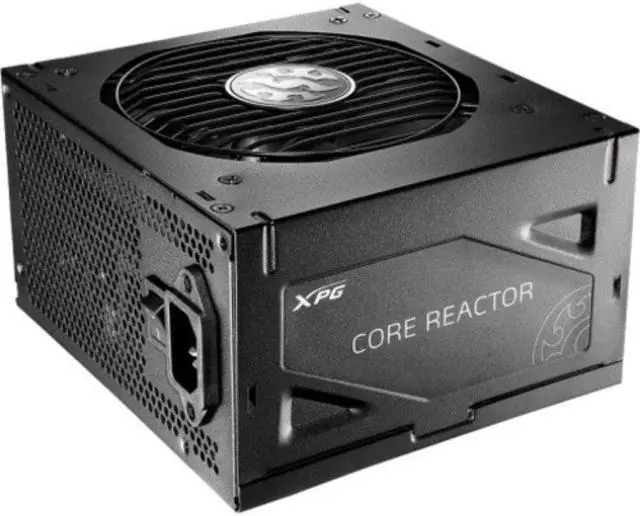

The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. Its modular design reduces cable clutter and simplifies system building.

Equipped with All 105 deg. C Japanese capacitors, the XPG CORE REACTOR is reliable and stable. Its DC voltage is maintained within +-2% and reduces ripple and noise up to 35% for enhanced dependability.

General Specifications:
Dimensions (W x L x H): 150 x 140 x 86mm
80 PLUS Rating: GOLD
ATX Version: Intel ATX 12V v2.52
Protections: OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification: CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / RCM / NOM / BSMI / BIS / KC
PFC: 0.99

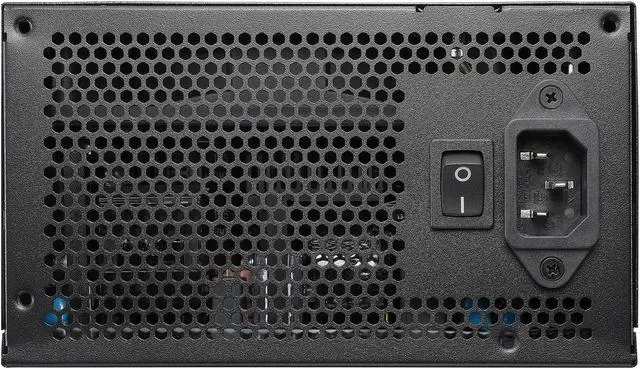

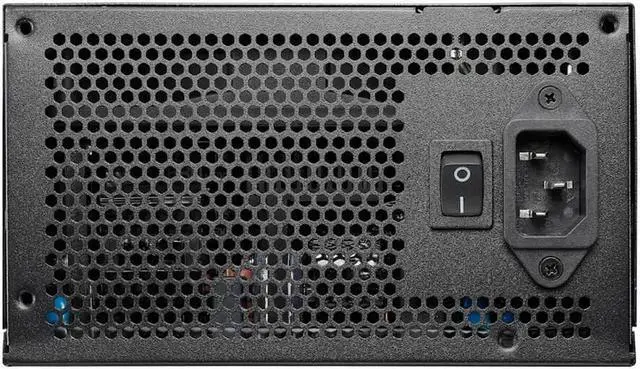

Input Voltage: 100V-240V
Input Current: 10-5A
Input Frequency: 47Hz-63Hz
Operating Temperature: 50 deg. C
Warranty: 10-Year

Fan Specifications:

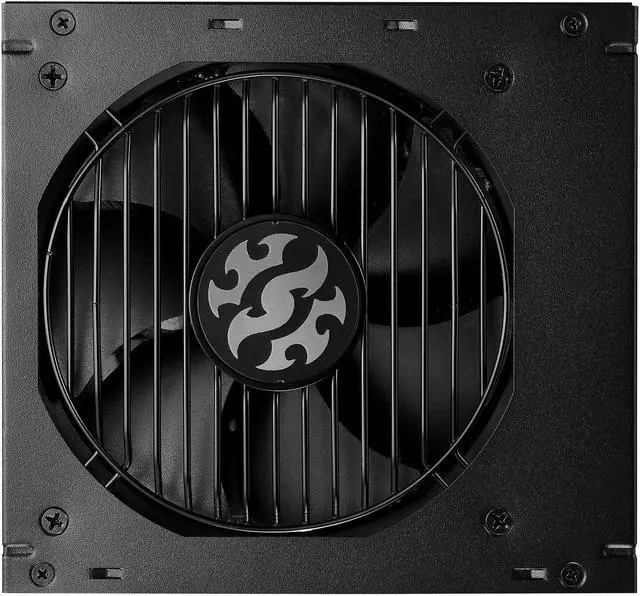

Fan Size: 12cm
Fan Bearing: FDB (Fluid Dynamic Bearing)
Fan Speed: 2,400 RPM
MTBF: 100K hours at full load
Noise Level @ 20% 850W: 11.2dB(A)
Noise Level @ 50% 850W: 11.3dB(A)
Noise Level @ 100% 850W: 24.7dB(A)

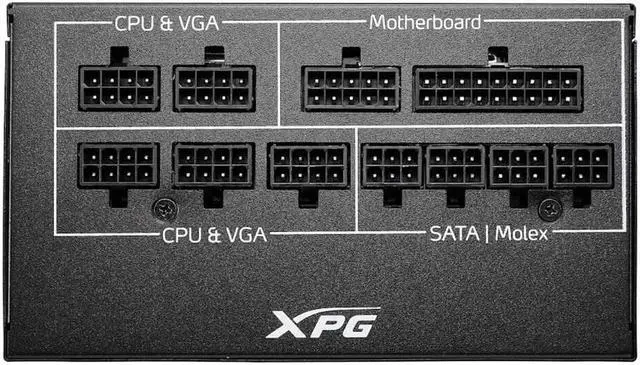

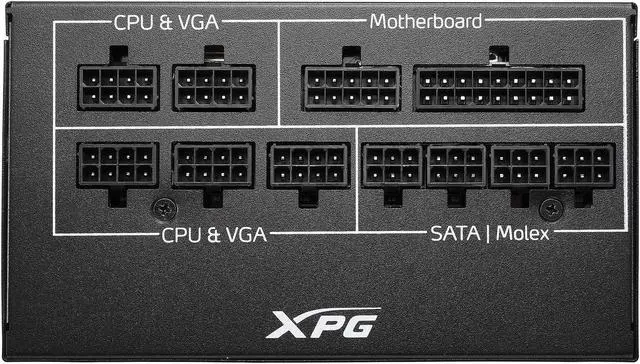

Connection Specifications:
ATX 24 Pin Connector: 1
EPS 8 (4+4) Pin Connector: 2
SATA Connector: 12
Peripheral 4 Pin Connector: 4
PCI-E 6+2 Pin Connector: 6
