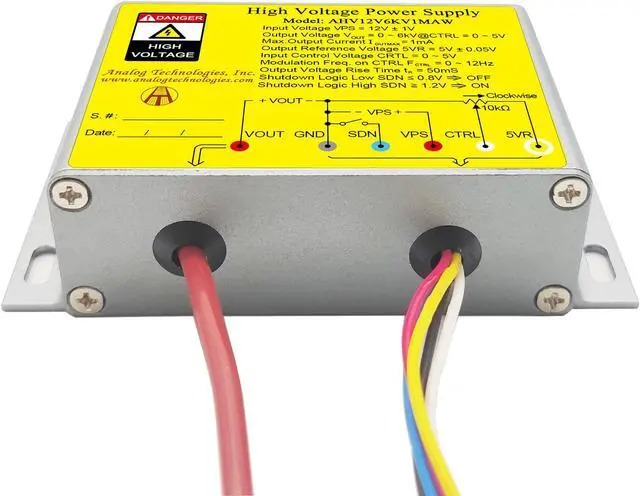

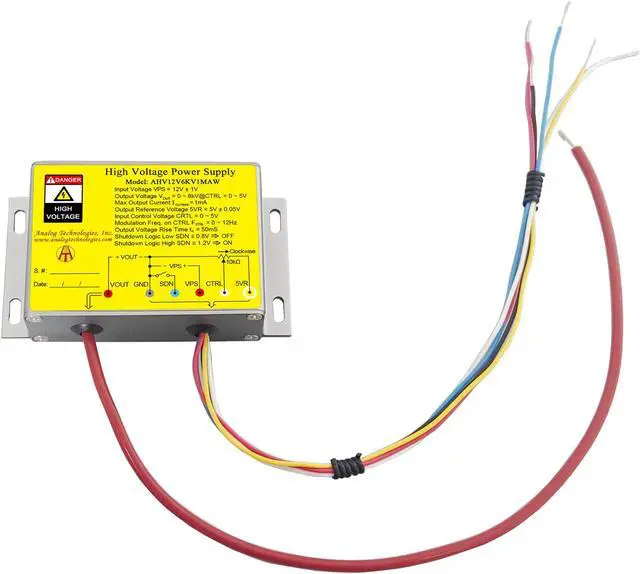

Compact High Voltage Power Supply 0 to 6kV Output Voltage 1mA Output Current 12V Input DC DC Converter AHV12V6KV1MAW
- Wide High Voltage Output Range (0-10kV):
- Delivers user adjustable output from 0V up to 10,000V, making it ideal for a broad range of high voltage applications such as Xray systems, laser power supplies, spectral analysis instruments, and more.
- Stable and Precise Linear Regulation:
- Features high precision linear output control with full modulation range. The module provides reliable performance with low ripple and steady voltage output suitable for sensitive electronic environments.
- Adjustable Control & Shutdown Interface:
- Includes an input control range of 0-5V for precise voltage regulation and an electronic shutdown control pin for easy remote on/off switching, enhancing integration flexibility in systems.
- Designed for 24V Input Systems:
- Operates from a standard 24V DC power supply with efficient conversion up to high voltage, making it suitable for industrial and lab setups powered by common 24V sources.
- Compact & Efficient Performance:
- Compact and enclosed design with good heat dissipation and efficiency (~70%), supporting reliable operation over a wide temperature range (20°C to 55°C).
- Ideal for Specialized High Voltage Uses:
- Perfect for scientific research, industrial testing, nondestructive inspection, electrospinning, coating systems, high voltage cable testing (PD testing), and more.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
- Input Power Voltage: 24V ± 1V
- Input Current Range: 130mA to 710mA
- Output Voltage: 0 to 6kV @CTRL = 0 to 5V
- Monitor Voltage: 0 to 1.5V
- Max. Output Current: 1mA
- Reference Voltage: 5V ± 0.05V
- Input Control Voltage: 0 to 5V
- Full Span Modulation on Output Voltage
- Electronic Shutdown Control
APPLICATIONS
This power module, AHV12V6KV1MAW, is designed for achieving DC-DC conversion from low voltage to high voltage as a power supply source which is widely used in scientific research and other fields including:
- X-ray Machine
- Spectral Analysis
- Nondestructive Inspection
- Semiconductor Manufacturing Equipment
- CRT Monitor Test
- Particle Accelerator
- Capillary Electrophoresis
- Nondestructive Detection
- Particles Injection
- Semiconductor Technology
- Physical Vapor Phase Deposition
- Radio Frequency Amplification
- Electrospinning Preparation of Nanofiber
- Glass / Fabric Coating
- DC Reactive Magnetron Sputtering
