4K HDMI to Optical Audio Converter + HDMI PCM 5.1 7.1 to Analog Surround Decoder
- Extract compressed digital Bitstream audio such as Dolby Digital, AC3 and DTS 5.1/7.1 embedded in HDMI feed and output through its optical audio output for further decoding by downstream device. Supports uncompressed LPCM 7.1, LPCM 5.1 and LPCM 2 channel in analog output through the multi-channel 3.5 output ports. Great digital to analog audio decoder solution for transcoding uncompressed digital LPCM 7.1 or 5.1 channel sound into analog surround format for existing analog amplifier or receiver.
- Supports compressed audio such as Dolby Digital, AC3, DTS 5.1 and LPCM 2CH through optical audio output. Easy EDID dip switch selection so users can easily control their HDMI source to send the desired digital audio format for decoding or conversion. No HDMI output with TV is required when receiving audio at the analog or optical audio output.
- Supports HDMI audio sampling rates up to 192 kHz. Supports optical (S/PDIF) digital audio sampling rates up to 192 kHz. Supports all HDTV resolutions
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
4K HDMI LPCM 5.1 7.1 DD DTS AC3 Audio Converter Extractor
This innovative HDMI audio processor is a great digital audio converter for decoding digital LPCM 7.1 or 5.1 channel into analog surround for analog amplifier or receiver.
It can also extract compressed Bitstream audio such as Dolby, AC3 and DTS 5.1 through its optical audio output for further decoding by other A/V receiver or amplifier
[Note]: Dolby TrueHD or DTS-HD Master Audio can only passed through the HDMI output with no decoding/conversion.

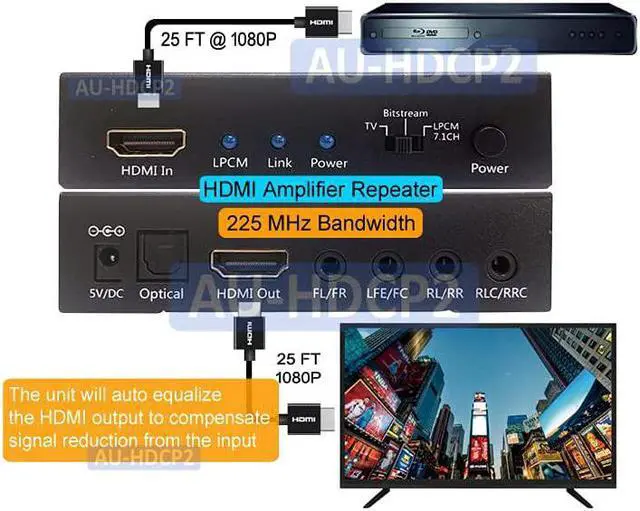

This device also supports 3D video and deep color content and input resolutions up to 4Kx2K.

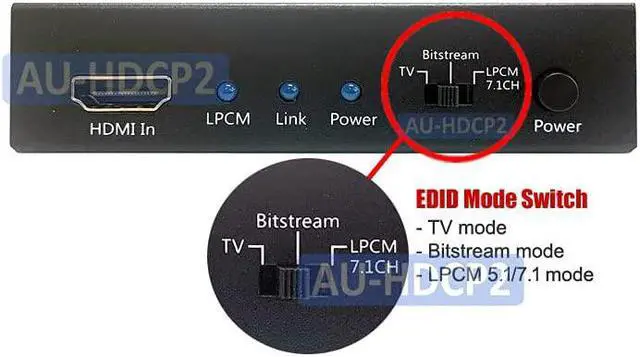

Easy EDID Switch For Audio Output Mode
Users can manually select between various audio output modes through the EDID switch on the front panel:
TV Mode:HDMI device will output according to what the TV or AV receiver can handle.
Bitstream Mode: HDMI device will output AC3, Dolby 5.1, DTS 5.1, which will be extracted and routed through its optical audio output.
LPCM 7.1CH Mode:all 3.5mm ports output 7.1CH analog surround sound. Optical port outputs PCM digital stereo.

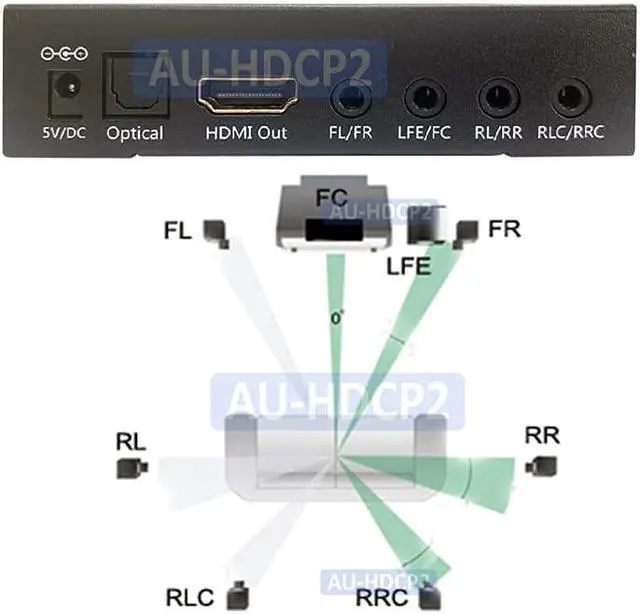

Directional Channel Sound

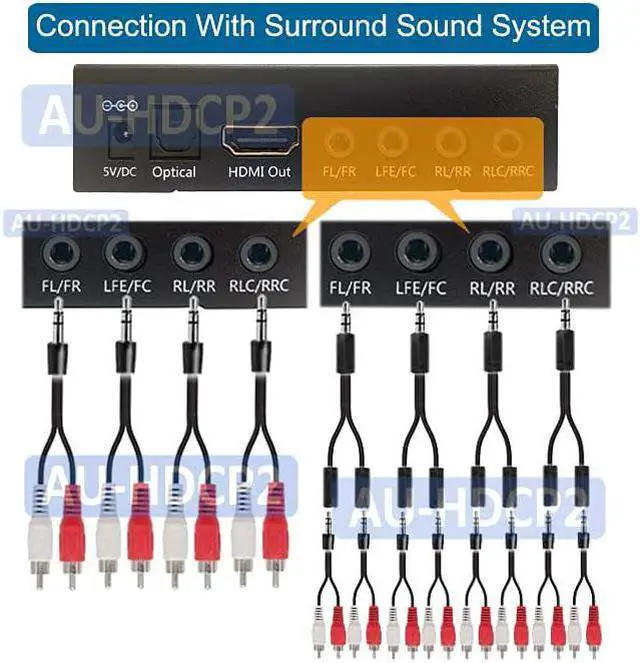

This HDMI audio decoder is a great device for decoding LPCM 5.1 and 7.1 sound output from PS4, Wii U, etc into analog surround through 4 of its 3.5mm audio terminals using optional splitters/cables (not included):
FL/FR Out: front left/right outputs
LFE/FC Out: subwoofer/center outputs
RL/RR Out: rear left/right outputs
RLC/RRC Out: rear left/right center outputs
HDMI DD AC3 DTS To Optical Audio Extractor
This HDMI audio converter can extract Dolby, AC3 and DTS embedded in HDMI feed and routed through its optical audio output.
No TV Hookup Required
This HDMI audio processor does not require HDMI hookup with a TV.?
This innovative HDMI audio processor is a great digital audio converter for decoding digital LPCM 7.1 or 5.1 channel into analog surround for analog amplifier or receiver.
It can also extract compressed Bitstream audio such as Dolby, AC3 and DTS 5.1 through its optical audio output for further decoding by other A/V receiver or amplifier
[Note]: Dolby TrueHD or DTS-HD Master Audio can only passed through the HDMI output with no decoding/conversion.
This device also supports 3D video and deep color content and input resolutions up to 4Kx2K.
Easy EDID Switch For Audio Output Mode
Users can manually select between various audio output modes through the EDID switch on the front panel:
TV Mode:HDMI device will output according to what the TV or AV receiver can handle.
Bitstream Mode: HDMI device will output AC3, Dolby 5.1, DTS 5.1, which will be extracted and routed through its optical audio output.
LPCM 7.1CH Mode:all 3.5mm ports output 7.1CH analog surround sound. Optical port outputs PCM digital stereo.
Directional Channel Sound
This HDMI audio decoder is a great device for decoding LPCM 5.1 and 7.1 sound output from PS4, Wii U, etc into analog surround through 4 of its 3.5mm audio terminals using optional splitters/cables (not included):
FL/FR Out: front left/right outputs
LFE/FC Out: subwoofer/center outputs
RL/RR Out: rear left/right outputs
RLC/RRC Out: rear left/right center outputs
HDMI DD AC3 DTS To Optical Audio Extractor
This HDMI audio converter can extract Dolby, AC3 and DTS embedded in HDMI feed and routed through its optical audio output.
No TV Hookup Required
This HDMI audio processor does not require HDMI hookup with a TV.?
