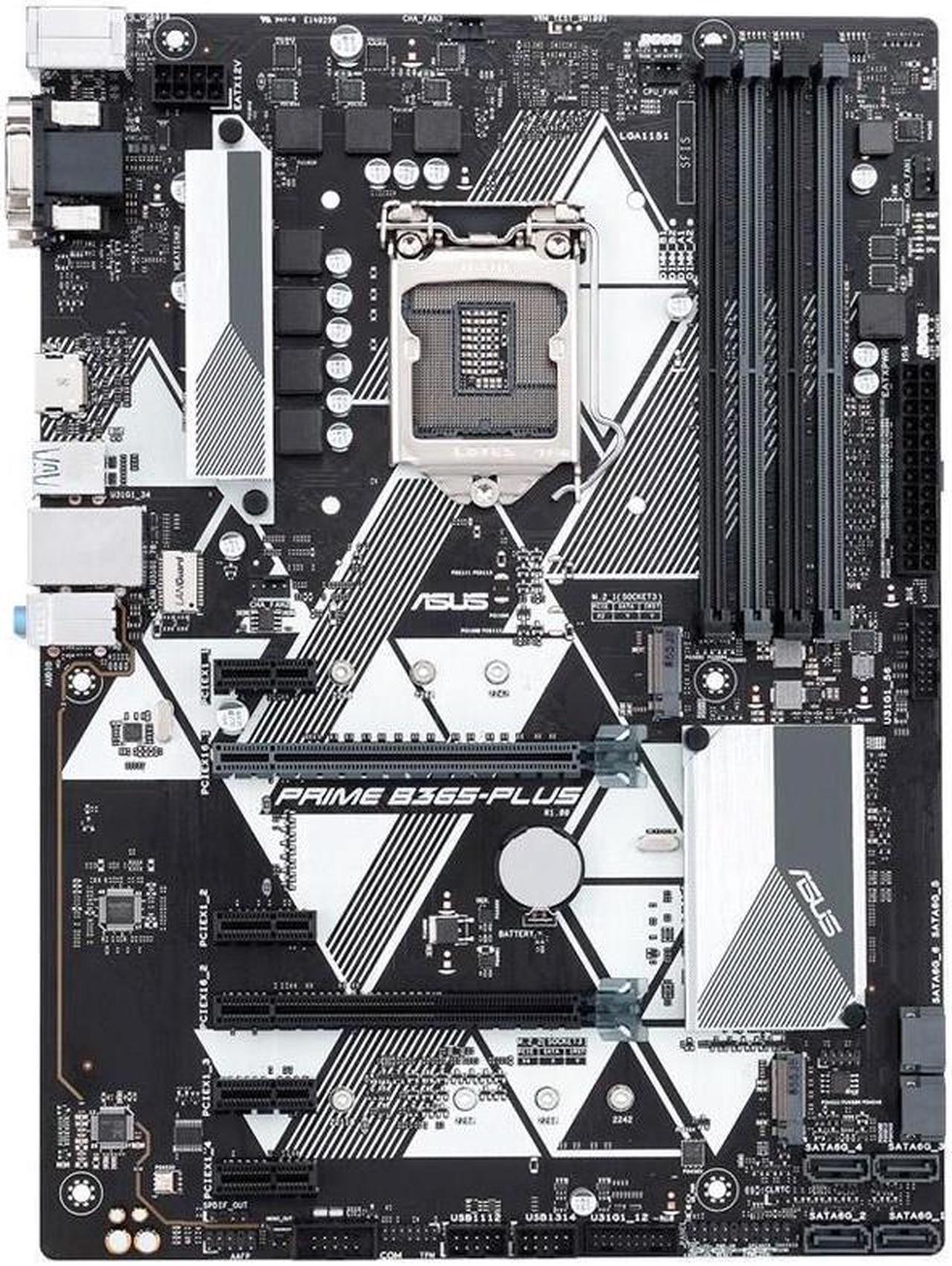

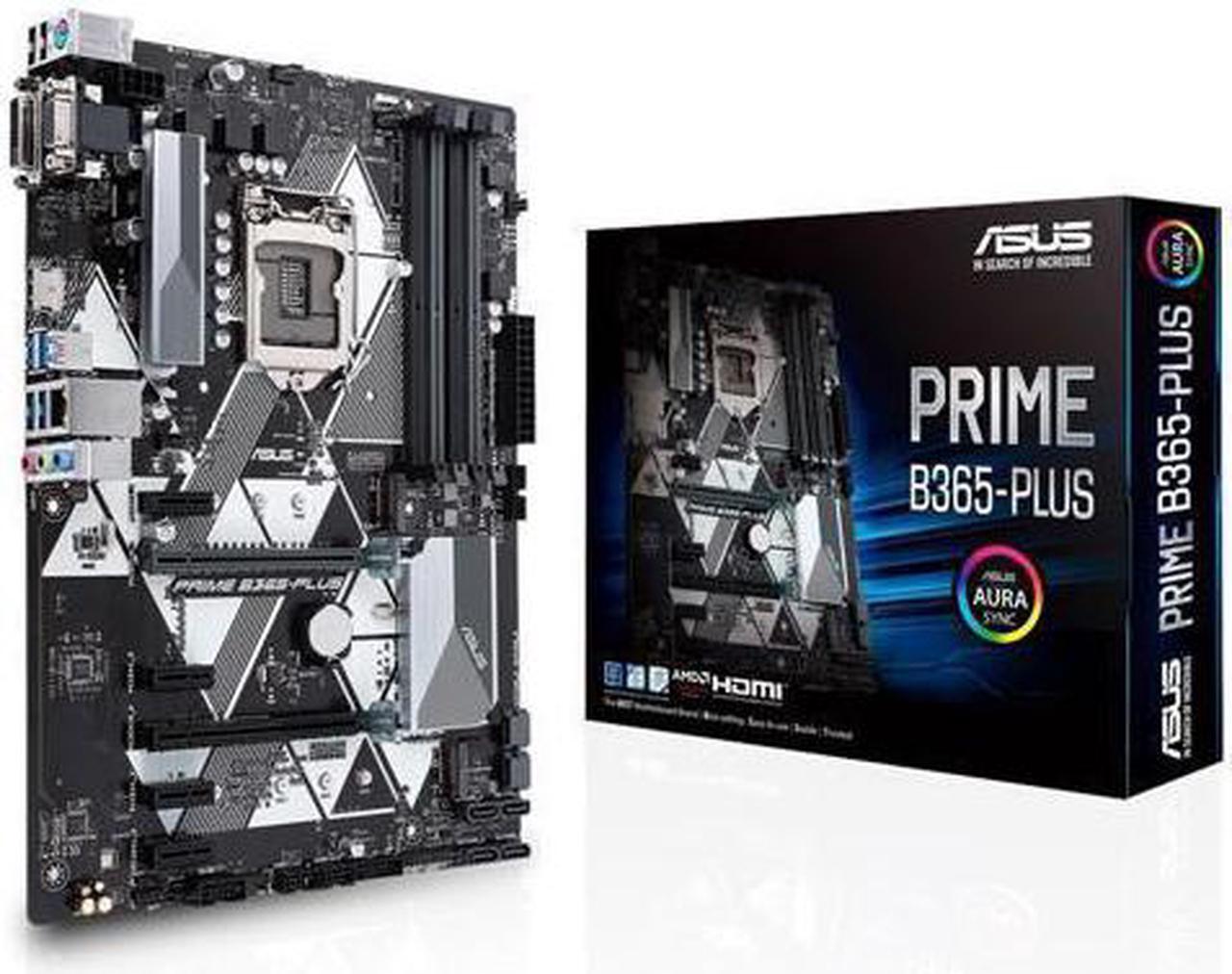

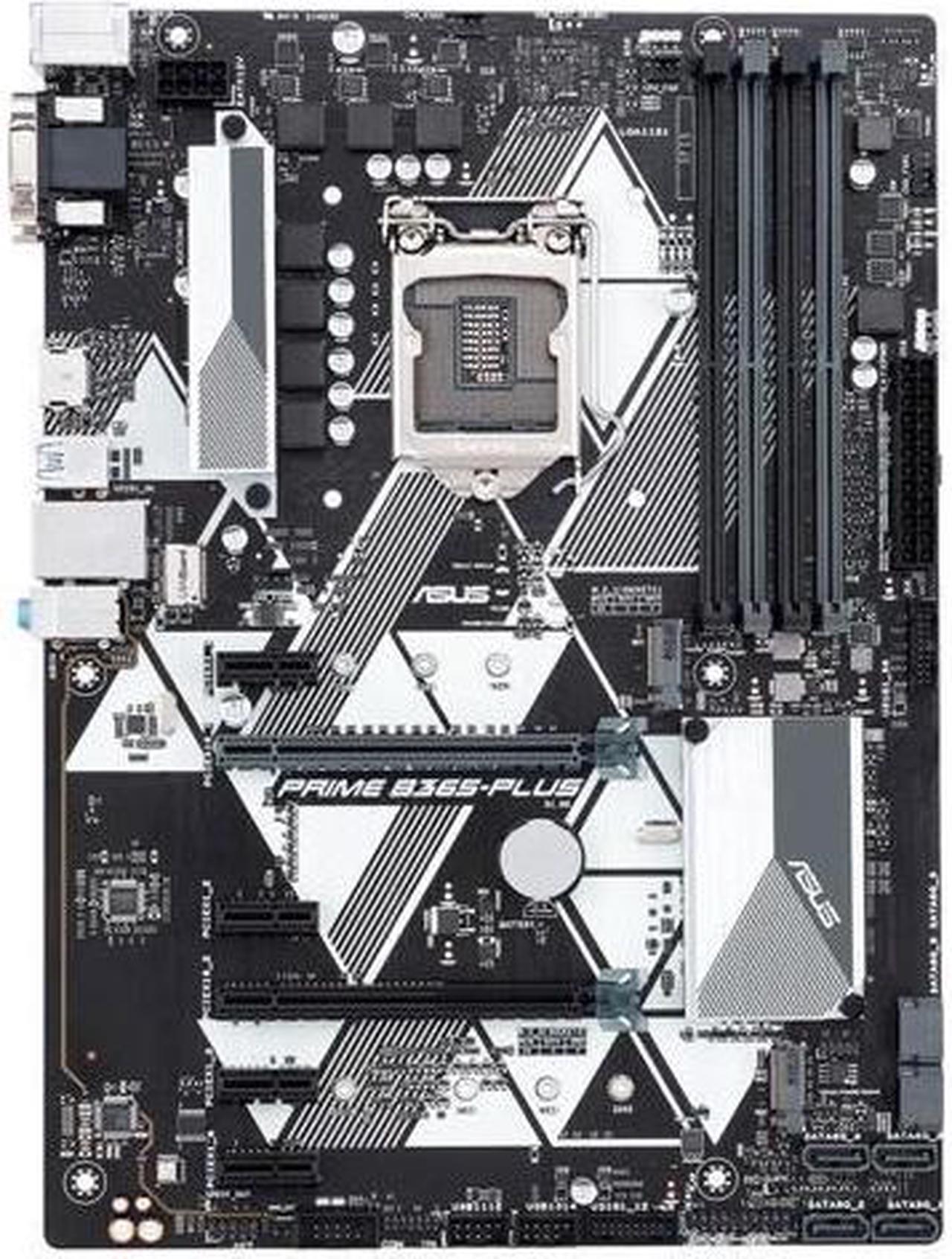

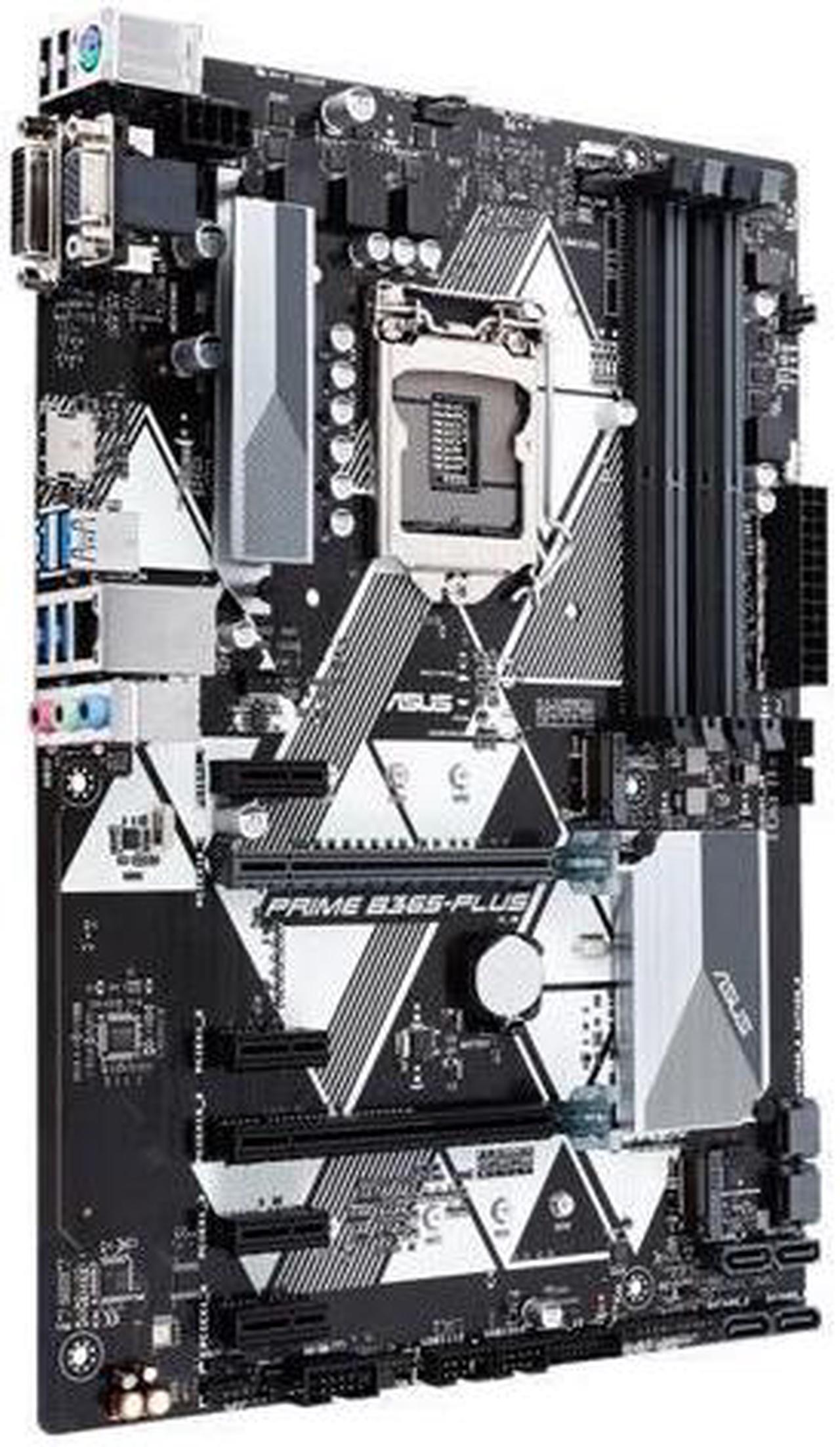

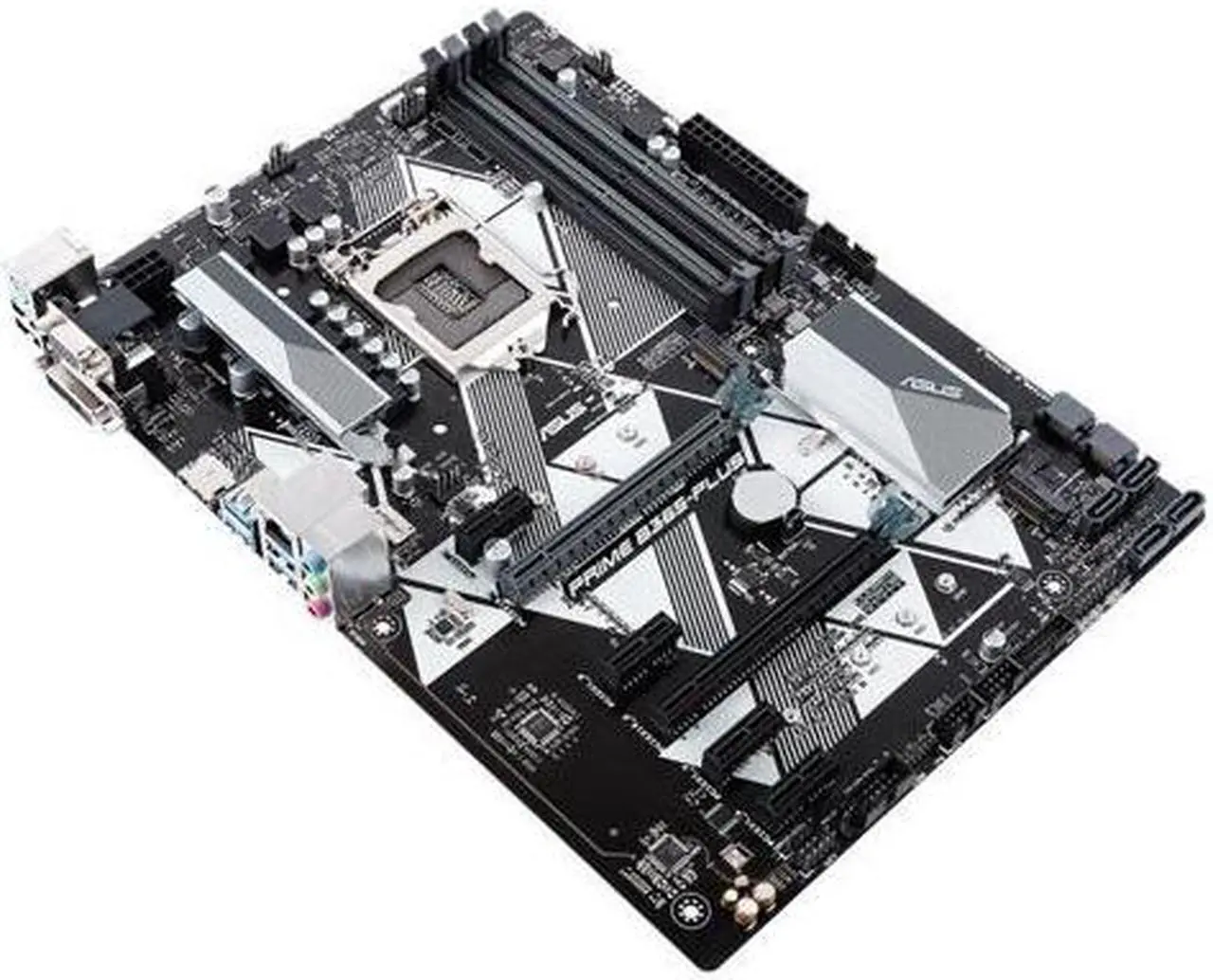

ASUS PRIME B365-PLUS Intel® B365 Chip ATX Motherboard 64GB DDR4 Mainboard for LGA 1151
REFURBISHED Product Type
- The ASUS OprtiMem memory design maintains the memory wiring and the transmission between the vias at the appropriate PCB layer. At the same time, the ASUS memory multi-channel equal-length design (T-design) makes the length of the wire between the memory socket and the CPU the same. Improve the stability of DDR4 memory in high frequency operation. Provide computers with the stability needed to handle various workloads.
+
+
Overview
Specs
Reviews
CPU: Supports Intel® Socket 1151 9th/8th generation Intel® Core, Pentium® Gold and Celeron® processors
Chipset: Support
Intel®B365Memory: 4 x DIMM, support up to 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered memory * Support dual channel memory architecture
Graphicsdisplay: integrated graphics processor-support Intel® UHD Graphics
SupportMulti-VGAoutput: HDMI/DVI-D/D-Sub interface
SupportDVI-Doutput: display resolution up to 1920 x 1200 @ 60 Hz Support
HDMI1.4b: display resolution up to 4096 x 2160 @ 30 Hz
SupportD-sub: display resolution up to 1920 x 1200 @ 60 Hz Support Intel® InTru 3D, Quick Sync Video, Clear Video HD technology, Insider
Multiplegraphicsdisplaytechnology: Support AMD 2-Way CrossFireX technology
Expansionslot: 1 x PCIe 3.0 / 2.0 x16 expansion card slot (x16 mode) 1 x PCIe 3.0 / 2.0 x16 expansion card slot (maximum x4 mode) 4 x PCIe 3.0 / 2.0 x1 expansion card slots
Storagefunction: 1 x M. 2 Socket 3 slot,, supports M key, 2242/2260/2280 type storage devices (SATA & PCIE 3.0 X2 mode)*1 1 x M. 2 Socket 3 slot,, support M key, 2242/2260/2280/22110 type storage devices (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s ports, gray Support Raid 0, 1, 5, 10
Networkfunction: Realtek® RTL8111H, 1 x Gigabit
LANAudio: Realtek® ALC 887 8-channel high-definition audio codec
USBports: 8 x USB 3.1 Gen 1 ports (4 @back, blue, 4 @front) 6 x USB 2.0 ports (2 @back, black, 4 @front)

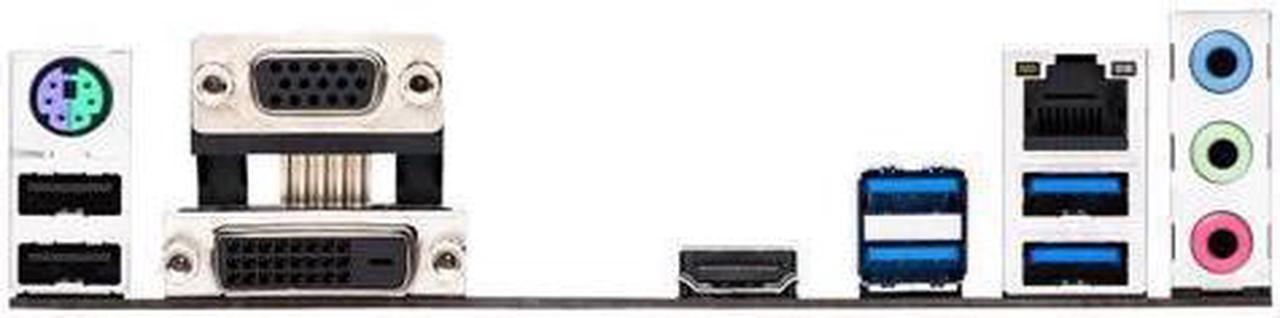

BackplaneI/Ointerface: 1 x PS/2 keyboard and mouse interface 1 x DVI-D port 1 x D-Sub interface 1 x HDMI port 1 x LAN (RJ45) port 4 x USB 3.1 Gen 1 (blue) up to 5Gbps 2 x USB 2.0 ports 3 x audio jack
InternalI/Ointerface: 2 x USB 3.1 Gen 1 interface can expand 4 sets of external USB 3.1 Gen 1 interface (19-pin) 2 x USB 2.0 ports can expand 4 sets of external USB 2.0 ports 1 x M. 2 Socket 3 slot, support M key, 2242/2260/2280 type storage devices (SATA & PCIE 3.0 X2 mode) 1 x M. 2 Socket 3 slot, support M key, 2242/2260/2280/22110 type storage devices (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s device connection sockets 1 x TPM header 1 x CPU fan power socket 1 x 4 -pin 3 x chassis fan connector 1 x 4 -pin 1 x S/PDIF_Out digital audio connector header 1 x 24-pin EATX motherboard power socket 1 x 8-pin ATX 12V motherboard power socket 1 x front panel audio interface (AAFP) 1 x system panel interface (built-in chassis anti-intrusion connector) 1 x Clear CMOS jumper 1 x serial port connection socket (COM) 1 x Mono Out header

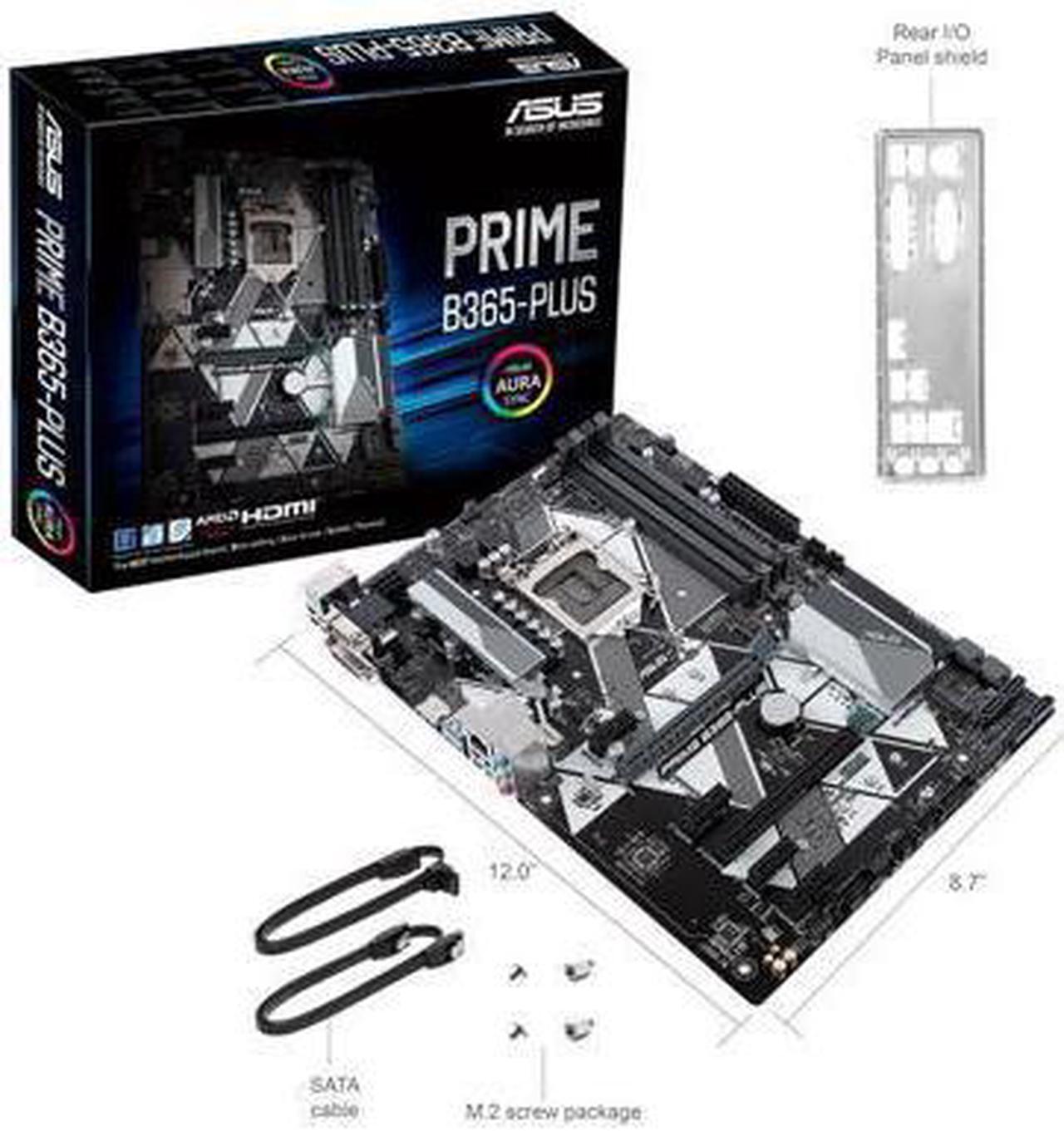

Accessories: manual I/O baffle 2 x SATA 6.0G b/s data cable 1 x M. 2 screw pack 1 x SCD (*Depends on region)
Dimensions: 12.0 inch x 8.7 inch ( 30.5 cm x 22.1 cm)
Chipset: Support
Intel®B365Memory: 4 x DIMM, support up to 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered memory * Support dual channel memory architecture
Graphicsdisplay: integrated graphics processor-support Intel® UHD Graphics
SupportMulti-VGAoutput: HDMI/DVI-D/D-Sub interface
SupportDVI-Doutput: display resolution up to 1920 x 1200 @ 60 Hz Support
HDMI1.4b: display resolution up to 4096 x 2160 @ 30 Hz
SupportD-sub: display resolution up to 1920 x 1200 @ 60 Hz Support Intel® InTru 3D, Quick Sync Video, Clear Video HD technology, Insider
Multiplegraphicsdisplaytechnology: Support AMD 2-Way CrossFireX technology
Expansionslot: 1 x PCIe 3.0 / 2.0 x16 expansion card slot (x16 mode) 1 x PCIe 3.0 / 2.0 x16 expansion card slot (maximum x4 mode) 4 x PCIe 3.0 / 2.0 x1 expansion card slots
Storagefunction: 1 x M. 2 Socket 3 slot,, supports M key, 2242/2260/2280 type storage devices (SATA & PCIE 3.0 X2 mode)*1 1 x M. 2 Socket 3 slot,, support M key, 2242/2260/2280/22110 type storage devices (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s ports, gray Support Raid 0, 1, 5, 10
Networkfunction: Realtek® RTL8111H, 1 x Gigabit
LANAudio: Realtek® ALC 887 8-channel high-definition audio codec
USBports: 8 x USB 3.1 Gen 1 ports (4 @back, blue, 4 @front) 6 x USB 2.0 ports (2 @back, black, 4 @front)
BackplaneI/Ointerface: 1 x PS/2 keyboard and mouse interface 1 x DVI-D port 1 x D-Sub interface 1 x HDMI port 1 x LAN (RJ45) port 4 x USB 3.1 Gen 1 (blue) up to 5Gbps 2 x USB 2.0 ports 3 x audio jack
InternalI/Ointerface: 2 x USB 3.1 Gen 1 interface can expand 4 sets of external USB 3.1 Gen 1 interface (19-pin) 2 x USB 2.0 ports can expand 4 sets of external USB 2.0 ports 1 x M. 2 Socket 3 slot, support M key, 2242/2260/2280 type storage devices (SATA & PCIE 3.0 X2 mode) 1 x M. 2 Socket 3 slot, support M key, 2242/2260/2280/22110 type storage devices (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s device connection sockets 1 x TPM header 1 x CPU fan power socket 1 x 4 -pin 3 x chassis fan connector 1 x 4 -pin 1 x S/PDIF_Out digital audio connector header 1 x 24-pin EATX motherboard power socket 1 x 8-pin ATX 12V motherboard power socket 1 x front panel audio interface (AAFP) 1 x system panel interface (built-in chassis anti-intrusion connector) 1 x Clear CMOS jumper 1 x serial port connection socket (COM) 1 x Mono Out header
Accessories: manual I/O baffle 2 x SATA 6.0G b/s data cable 1 x M. 2 screw pack 1 x SCD (*Depends on region)
Dimensions: 12.0 inch x 8.7 inch ( 30.5 cm x 22.1 cm)
