Learn more about the Detailed Specifications
Supported CPU
CPU Socket Type
LGA 1700
CPU Type
Intel Core 13th Gen (LGA 1700)
Chipsets
Chipset
Intel B760
Expansion Slots
PCI Express 5.0 x16
Intel ® 13th & 12 th Gen Processors 1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16
Intel ® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
Storage Devices
M.2
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel ® 13th & 12 th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel ® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Onboard LAN
Max LAN Speed
1 x Realtek 2.5Gb Ethernet
Wireless LAN
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band
Bluetooth
Bluetooth ® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Rear Panel Ports

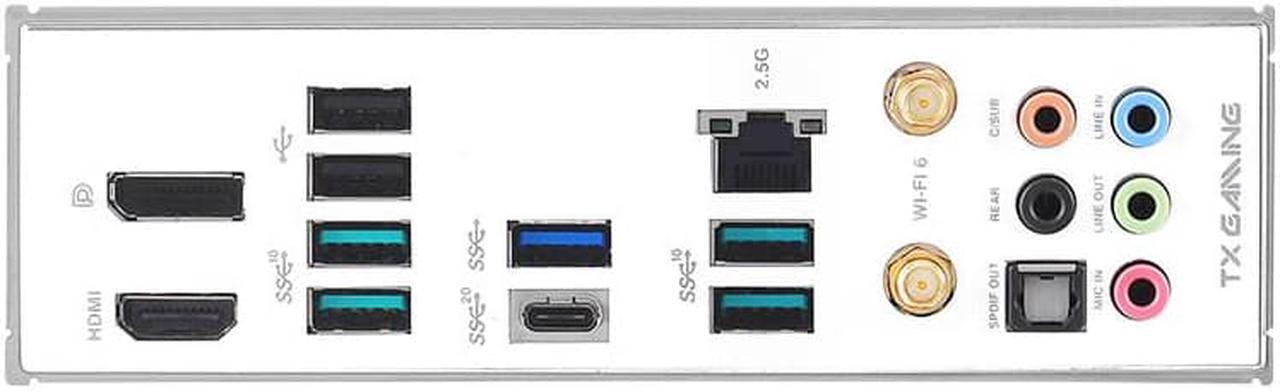

Back I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI ® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Internal I/O Connectors
Onboard USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C ®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors
Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4 ®) header
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Power Pin
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector
Packaging
Package Contents
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD 1 x TX Gaming sticker Documentation 1 x User guide
Additional Information
Date First Available
January 10, 2025
