MSI PRO Z690-A WIFI DDR4 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard

REFURBISHED

Be the first to review this product...

BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
Supports Intel Core 14th, 13th and 12th Gen Processors, Intel Pentium Gold, Celeron Processor and Intel Processor 300(T) for LGA 1700 socket
Supports DDR5 Memory, up to 6400+(OC) MHz
Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

The MSI PRO Z690-A WIFI DDR4 ProSeries Motherboard is a high-quality motherboard that provides optimized functionality, stable performance, and expandability for demanding users.

Model
Brand	MSI
Model	PRO Z690-A WIFI DDR4

Supported CPU
CPU Socket Type	LGA 1700 * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. * Please go to intel.com for compatibility information.

Chipsets
Chipset	Intel Z690

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 1R 3200 / 2933 / 2666 / 2133 (by JEDEC & POR)* Max overclocking frequency: 1DPC 1R Max speed up to 5200+ 1DPC 2R Max speed up to 4800+ 2DPC 1R Max speed up to 4400+ 2DPC 2R Max speed up to 4000+ * Please refer www.msi.com for more information on compatible memory.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16 * Actual support may vary by CPU.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16 * Supports up to PCIe 3.0 x4 & 3.0 x1
PCI Express x1	1 x PCI Express 3.0 x1

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	4 x M.2 slots (Key M): M2_1 slot (from CPU): Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from Z690 chipset): Support up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from Z690 chipset): Support up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (from Z690 chipset): Support up to PCIe 4.0x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Intel Optane Ready	Intel Optane Memory Ready for M.2 slots that are from Z690 Chipset
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	2.5Gbps
Wireless LAN	Intel WIFI 6 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports

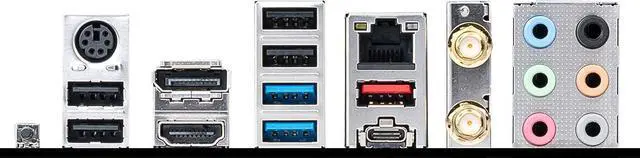

Back I/O Ports	1 x DisplayPort 1 x HDMI 1 x Flash BIOS Button 1 x LAN (RJ45) 2 x Antenna Bracket 6 x Audio Jacks 1 x PS/2 Keyboard/Mouse Combo 1 x USB 3.2 Gen 2x2 Type-C 1 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0/1.1

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x Tuning controller connector 1 x TBT connector (Supports RTD3) 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LED

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector

Features
Features	Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR4 Memory, up to 5200+(OC) MHz Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2 Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds Audio Boost: Reward your ears with studio grade sound quality High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire
