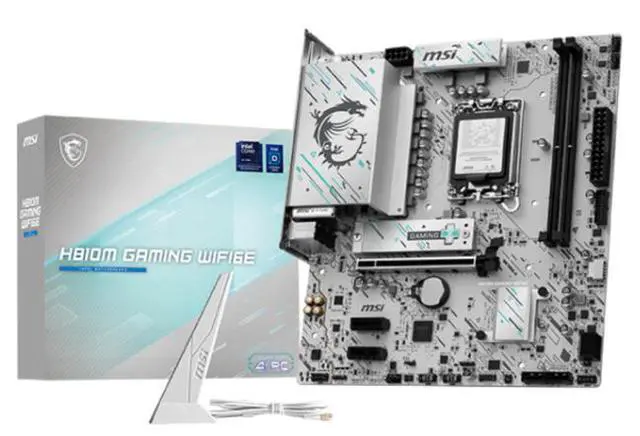

MSI H810M GAMING WIFI6E DDR5 6400MHz Motherboard LGA1851 5G AI COOLING

Chipset INTEL H810 CPU Supports Intel® Core Ultra Processors (Series 2) LGA 1851 Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: 1DPC 1R Max speed up to 6400+ MT/s 1DPC 2R Max speed up to 6400+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM The DIMM slots on this motherboard only have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the products Support page or visit https://www.msi.com/support/. Onboard Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions. USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) LAN Realtek® 8125 2.5Gbps LAN

1.

2. PROTECTION

Unleash and sustain maximum performance with a flagship VRM design built with a total of 6 + 1 + 1 + 1 digital power phases. With a 8-pin power connector, H810M GAMING WIFI6E is ready for the challenge of heavy-loading tasks.

1. Support Intel^® Core Ultra Processors (Series 2) for LGA 1851 socket
2. Supports DDR5 Memory, Dual Channel DDR5-6400+ MT/s (OC)
3. Ultra Performance: 6 P-PAK Power System, 8-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
4. Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for non-stop experience
5. Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 20G Type-C
6. High-Speed Connectivity: Realtek^® 2.5G LAN, Wi-Fi 6E Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
7. EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
8. Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
