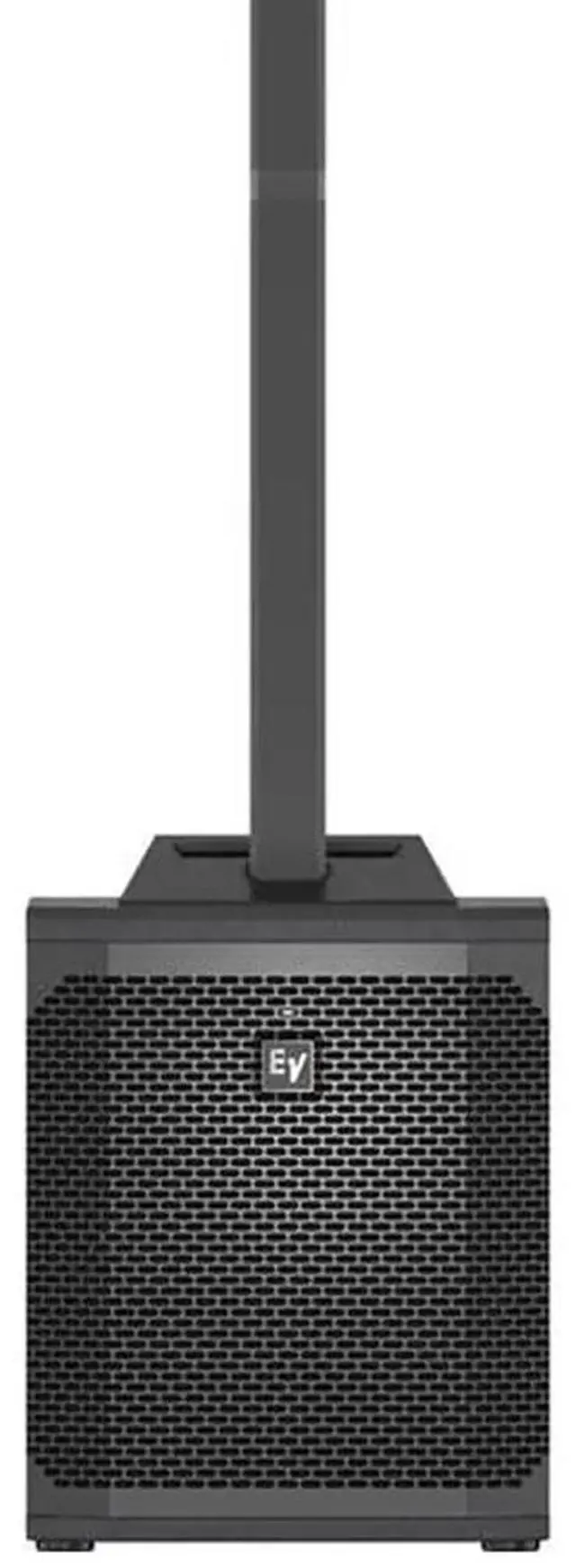

Electro-Voice EVOLVE 30M Compact Column Loudspeaker System with Onboard Mixer, DSP and FX (Black)

Powered Column PA System with Digital Mixer

The Electro-Voice EVOLVE 30M is a compact 1000W powered column PA system designed for mobile DJs, musicians, live performers, and small venues. Combining a 10-inch subwoofer, six 2.8-inch neodymium column drivers, and an integrated 8-channel digital mixer, it delivers up to 123dB maximum SPL with wide 120° horizontal coverage. Bluetooth audio streaming, onboard effects, and wireless control through the QuickSmart Mobile app provide a flexible, portable sound system for live performances, presentations, weddings, and other events.

Electro-Voice EVOLVE 30M Competitive Differences

• Integrated 8-Channel Digital Mixer: Built-in mixer with multiple microphone, line, instrument, and Bluetooth inputs reduces the need for an external mixing console in many applications.
• 1000W Class-D Amplification: Delivers 500W to the 10-inch subwoofer and 500W to the column array for balanced low-frequency and full-range performance.
• 123dB Maximum SPL: Provides substantial acoustic output from a compact portable column system.
• Wide 120° x 40° Coverage: Six 2.8-inch neodymium drivers and proprietary waveguides deliver broad horizontal coverage with an asymmetrical vertical pattern for seated and standing audiences.
• 30 Onboard Effects Presets: Two independent FX channels provide chorus, delay, flanger, reverb, and other effects for vocals and instruments.
• QuickSmart Mobile Control: Bluetooth Low Energy connectivity enables wireless adjustment of mixer settings, effects, EQ, and system parameters from a compatible mobile device.
• QuickSmart DSP Processing: Includes four application presets, three-band system EQ, seven-band graphic EQ in Mixer mode, and five user-programmable presets.
• Fast, Cable-Free Column Assembly: Two-piece aluminum pole system features internal wiring and magnetically assisted connections for quick setup and removal.
• Portable Design: Lightweight column components, a compact subwoofer, and an included carrying case for the column and poles simplify transportation between events.

Electro-Voice EVOLVE 30M Description

The Electro-Voice EVOLVE 30M combines professional sound reinforcement with the convenience of an integrated digital mixer. Its 10-inch subwoofer delivers low-frequency reproduction, while six lightweight 2.8-inch neodymium drivers provide clear midrange and high-frequency output. A 1000W Class-D amplifier supplies 500W to the subwoofer and 500W to the column array, producing up to 123dB maximum SPL. With a frequency response of 51Hz to 20kHz (-3dB), the system supports music playback, vocal reinforcement, acoustic performances, and DJ applications.

The column array uses proprietary waveguides to achieve 120° horizontal coverage and 40° asymmetrical vertical dispersion, helping distribute sound across seated and standing audiences. Its composite enclosure incorporates four rear tuning ports and an ergonomic aluminum handle. The 10-inch subwoofer is housed in a durable 15mm plywood enclosure with a high-efficiency laminar-flow vent for controlled low-frequency performance. A powder-coated steel grille provides additional protection during transport and regular use.
