Single Channel SDI Video Encoder Board, H.264/H.265 HD IP Streaming Module, 1080P@60fps Output, SDI Interface, Support RTSP/RTMP/UDP-TS/HLS/ONVIF, Model XSWEDR-SSDI

Product Description

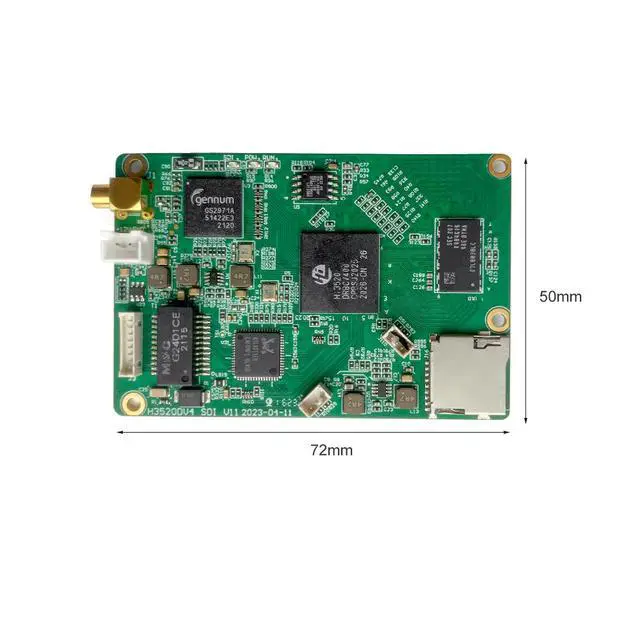

The XSWEDR-SSDI Single Channel SDI Encoder is a high-performance solution designed for professional video applications in the auto and hardware industries. This compact device features a single SDI input interface, supporting full HD video encoding at resolutions up to 1920x1080@60FPS. Utilizing advanced H.264/H.265 encoding, it delivers efficient streaming with adjustable bitrates from 35Kbps to 50Mbps. The encoder supports a wide range of network video output protocols, including RTSP, RTMP, UDP-TS, HLS, HTTP-FLV, and ONVIF, ensuring broad compatibility with various streaming platforms and monitoring systems. Remote management and firmware upgrades are available via the dedicated management platform (registration required), offering convenient device parameter modification. With its lightweight design (22.6g) and compact dimensions (76mm x 50mm), this encoder is ideal for space-constrained environments. Operating reliably at 070 and powered by DC 12V, it is engineered for stable, continuous operation.

Features

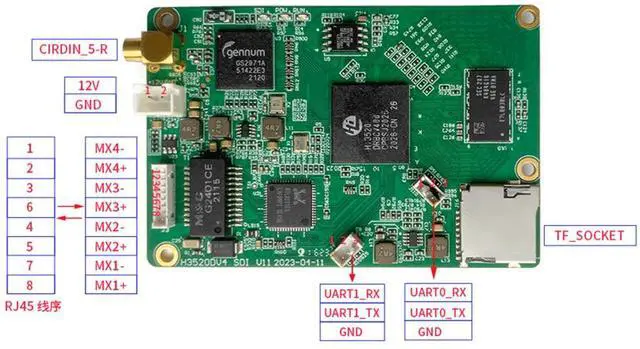

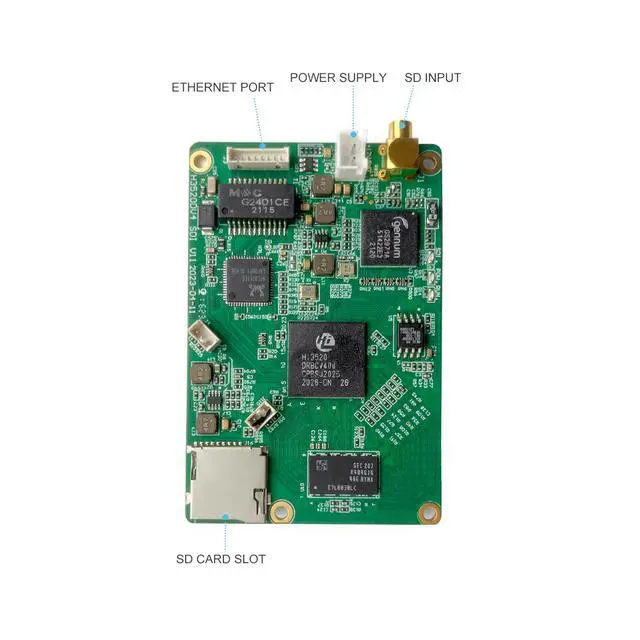

1. Single channel SDI input interface
2. Supports H.264/H.265 encoding up to 1920x1080@60FPS

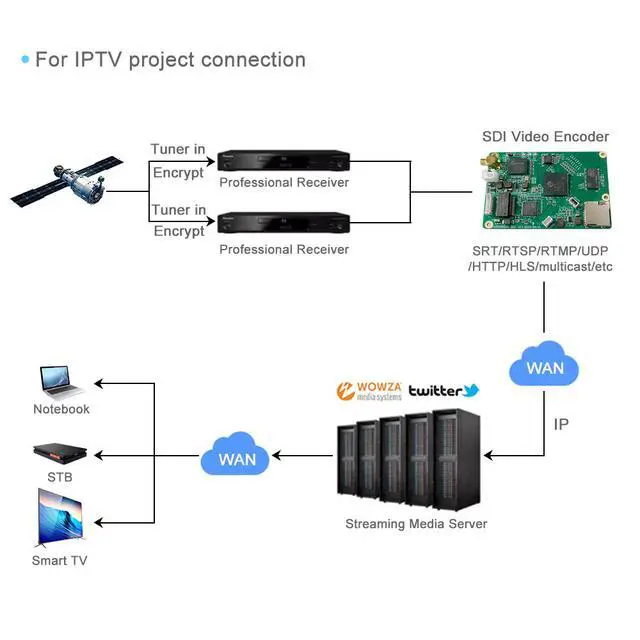

3. Multi-protocol network output: RTSP, RTMP, UDP-TS, HLS, HTTP-FLV, ONVIF
4. Remote management and firmware upgrade support
5. Compact and lightweight design
6. Wide operating temperature range (070)
