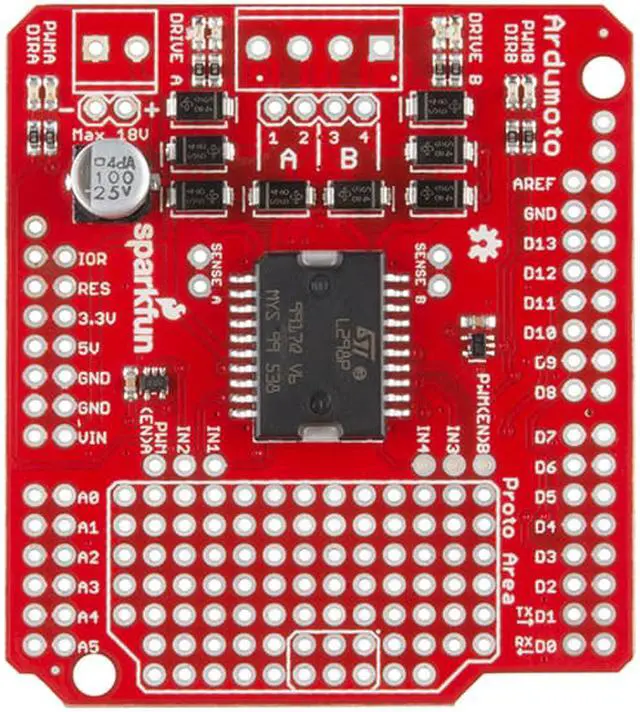

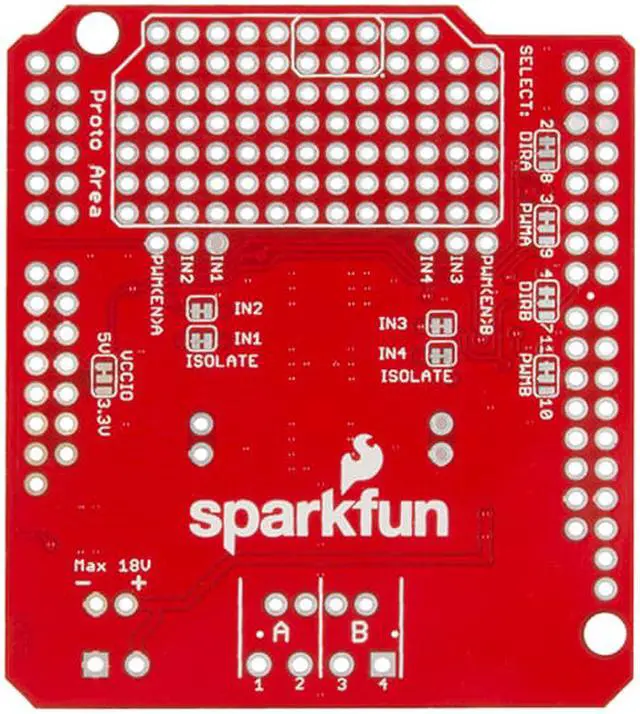

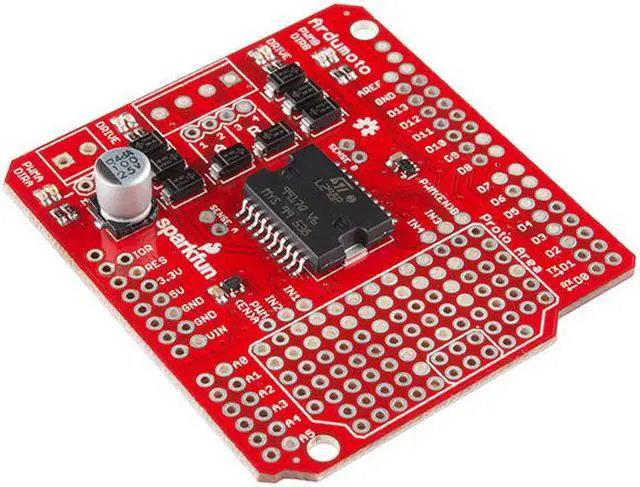

SparkFun Ardumoto - Motor Driver Shield

Key Features

• Dual-motor controller for Arduino
• Can drive two DC motors up to 2A per channel
• Makes a fantastic controller platform for RC vehicles or even small autonomous robots
• More flexible for advanced users

The Ardumoto Shield is a dual-motor controller for Arduino. Based on the L298 H-bridge, the SparkFun Ardumoto can drive two DC motors up to 2A per channel. Combined with an Arduino, the Ardumoto makes a fantastic controller platform for RC vehicles or even small autonomous robots. It’ s now easier to use, featuring control signal LEDs, while also being much more flexible for advanced users.

The board takes its power from the same Vin line as the Arduino board and includes blue and yellow LEDs to indicate active direction. All driver lines are diode protected from back EMF. The L298 is a two-channel motor driver, which means it can individually drive up to two motors, making it perfect for a two-wheel-drive vehicle. Each channel on the L298 can deliver up to 2A to the motor to which it’ s connected. Keep in mind, though, that the amount of current available to your motor also depends on your system’ s power source.

Item Specifics
Screw terminals and stackable headers not included
Some soldering skills required
Some robotics skills required
