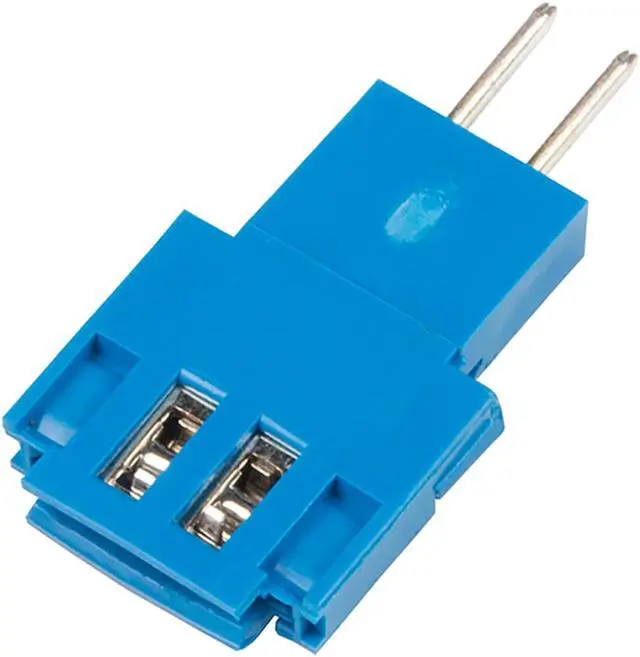

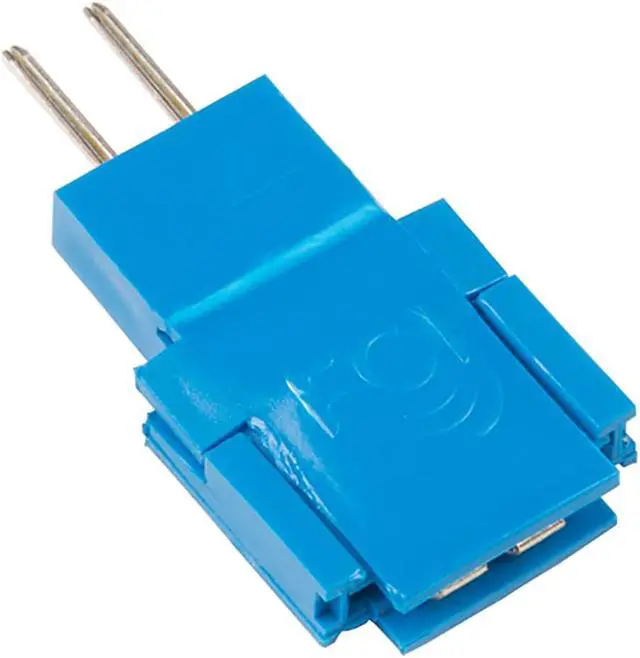

Sparkfun Amphenol FCI Clincher Connector - 2 Position, Male

Key Features

• Terminate Flat Flexible Cables (FFCs) to an easy-to-use standard header
• 2 position, male
• Clinch cable termination produces gas-tight, contamination-free connections to each conductor
• Contacts are pre-loaded to connector housings enabling mass termination to unprepared cable.
• Housing window permits crimp inspection to verify propertermination

These Clincher connectors from Amphenol FCI can be used to terminate Flat Flexible Cables (FFCs) to an easy-to-use standard header. Simply insert the end of the cable into the connector and press it closed. The teeth inside the connector will "clinch" around the conductors and break them out to two male 0.1" spaced pin headers!

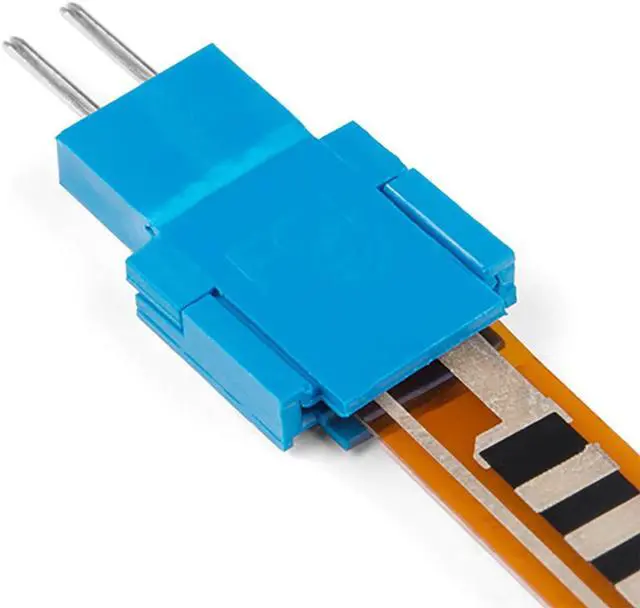

Though the Clincher connector can be used with FFCs, we also like to use them with our FlexiForce sensors and other flex/force sensors found in the Recommended Products section below.

Item Specific
Cable specification: IPC Standard, FC-220 B Cables type A or B, tolerance class IV
Cable thickness (max): 0.33mm (0.013in.)
Contact resistance (LLCR) main contacts: 10 m ohm max; 20 m ohm max after environmental exposure
Insulation Resistance: 5000 M Ohm min
Withstanding voltage: 1000 VAC RMS
Current Rating: 2.0 amp continuous per contact

Note: Please be aware that we will not be able to accept returns on this connector if it has been closed. Sorry for any inconvenience this may cause.
