Adafruit FTDI Serial TTL-232 USB Cable

Key Features:

• FTDI cable
• Translucent body with RX/TX LEDs
• Power line provides 5V
• Data signals are at 3V
• Works with 5V boards with minor tweaking

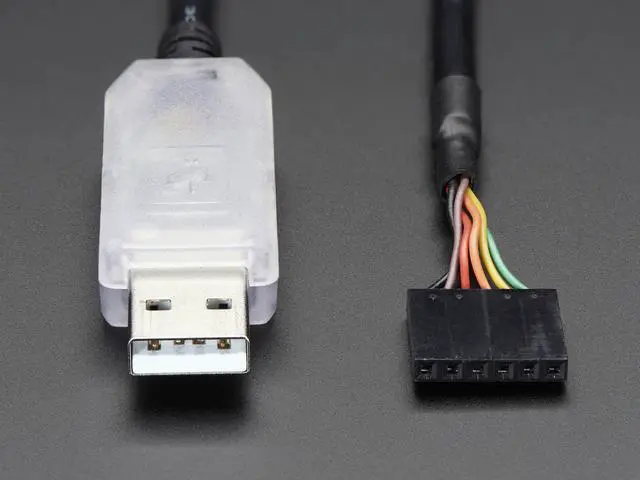

This is a USB to TTL serial cable, with a FTDI FT232RL usb/serial chip embedded in the head. It has a 6-pin socket at the end with 5V power and ground, as well as RX, TX, RTS and CTS at 3V logic levels. These are perfect for use with a Boarduino, Meggy' s, or other Arduino clones and derivatives, and Fuzeboxen. Useful whenever you want to communicate with a TTL serial device, such as an XBee. Now it' s easier than ever to debug your setup or see data transfer, the red and green LEDs will blink when data is transmitted/received by the FTDI chip. The data signals are at 3V and the power line provides 5V. Because the cable is 5V-logic compliant, you can use it with 3v or 5v logic just fine - no level shifting required!

Item Specifics
Version: 3.3V
Cable Length: 3' / 914mm
Diameter: 5mm / 0.2"
