Adafruit Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout

Key Features:

• Works with any and only K type thermocouple
• Easy to use analog output amplifier
• Temp range with 5V power: -250°C to +750°C output (0 to 5VDC) as long as the thermocouple can handle that range
• Temp range with 3.3V power: -250°C to +410°C output (0 to 3.3VDC ) as long as the thermocouple can handle that range

Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. We' re happy to introduce an excellent analog-output amplifier. This is a very simple sensor to use, and if your microcontroller has analog input capability, you' ll be ready to go really fast!

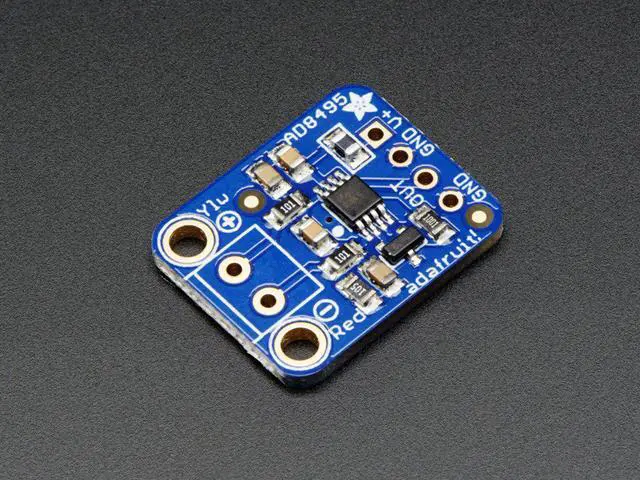

The AD8495 K-type thermocouple amplifier from Analog Devices is so easy to use, we documented the whole thing on the back of the tiny PCB. Power the board with 3-18VDC and measure the output voltage on the OUT pin. You can easily convert the voltage to temperature with the following equation: Temperature = (Vout - 1.25 ) / 0.005 V. So for example, if the voltage is 1.5VDC, the temperature is ( 1.5 - 1.25 ) / 0.005 = 50°C

Each order comes with a 2 pin terminal block (for connecting to the thermocouple), a fully assembled PCB with the AD8495 + TLVH431 1.25V precision voltage reference, and pin header (to plug into any breadboard or perfboard). Goes great with our 1m K-type thermocouple (not included). Not for use with any other kind of thermocouple, K type only!

Item Specifics

• Sensing Accuracy Range: ± 1°C around room temperature, ± 2°C for − 25°C to +400°C
• Supply Voltage: 3-18VDC
