Adafruit Music Maker FeatherWing - MP3 OGG WAV MIDI Synth Player

Key Features:

• VS1053B codec chip - decodes Ogg Vorbis, MP3/MP2/MP1, MP4, AAC, WMA, FLAC, WAV/PCM, MIDI
• Fun-size version of our Music Maker shield
• Adjust bass, treble, and volume digitally
• Dozens of built-in drum and sample effects

Bend all audio files to your will with the Adafruit Music Maker FeatherWing! It' s a fun-size version of our Music Maker shield for Arduino! This powerful wing features the VS1053, an encoding/decoding (codec) chip that can decode a wide variety of audio formats such as MP3, AAC, Ogg Vorbis, WMA, MIDI, FLAC, WAV (PCM and ADPCM). You can do all sorts of stuff with the audio as well such as adjusting bass, treble, and volume digitally.

All this functionality is implemented in a light-weight SPI interface so that any Feather Board can play audio from an SD card. There' s also a special MIDI mode that you can boot the chip into that will read ' classic' 31250Kbaud MIDI data from the UART TX pin and act like a synth/drum machine - there are dozens of built-in drum and sample effects!

What a great musical add-on to your Feather! That' s why we spun up this super FeatherWing, perfect for use with any of our Feather Boards! Music playback testing working with ATmega32u4, ATSAMD M0, ESP8266, WICED Teensy 3, and nRF52 Feathers. MIDI playback works with all Feathers but you may need to remove the ' Wing during programming and also for USB-Serial Feathers like the ESP8266 and nRF52 you' ll end up re-using the main Serial console for MIDI which can be confusing.

Item Specifics

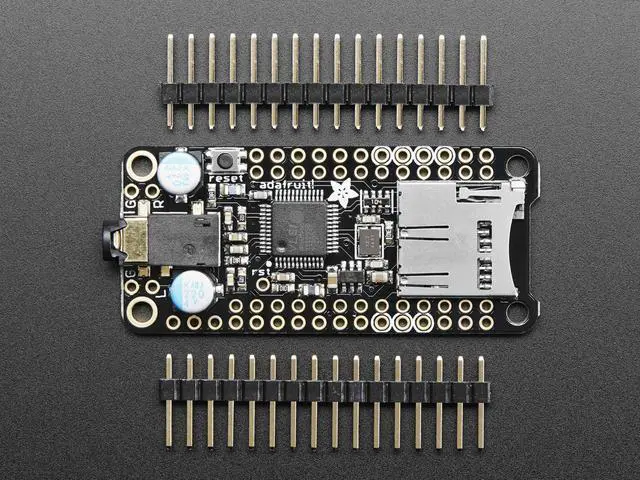

1 - Tested FeatherWing
2 - 0.1" Male Headers
MicroSD card socket (FAT16/FAT32 formatted SD card; 64MB or greater)
Built in MIDI synth/drum machine with dozens of instruments
Size: 53.0 mm x 23.0 mm x 7.8 mm / 2.1" x 0.9" x 0.3"
Weight: 5.4 g / 0.2 oz
Some light soldering is required
Headphones, SD card and Feather Board not included
