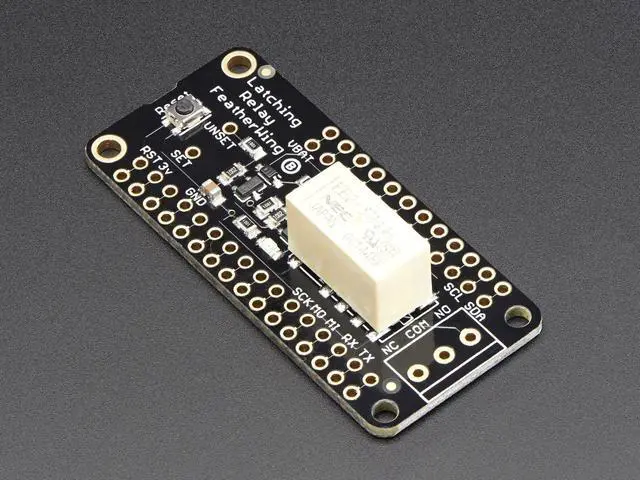

Adafruit Latching Mini Relay FeatherWing

Key Features:

• Power to control and control over power
• Turn on and off lamps, fans, solenoids, and other small appliances
• Requires two pins, a SET and UNSET
• Fully assembled and tested

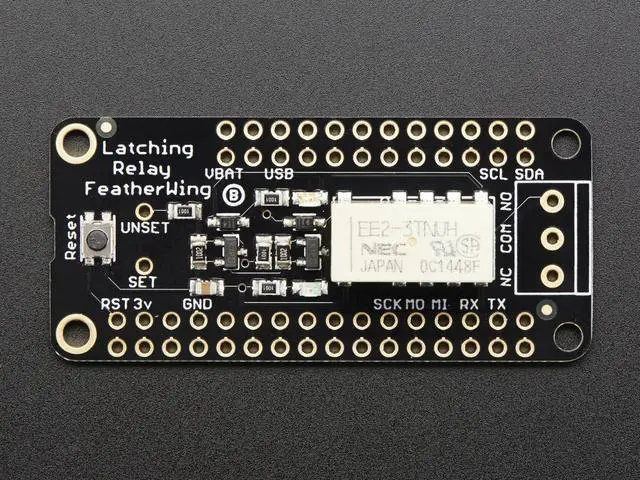

This is the Latching Mini Relay FeatherWing. It gives you power to control, and control over power. Put simply, you can now turn on and off lamps, fans, solenoids, and other small appliances that run on up to 250VAC or DC power using any Feather board. Using Feather Stacking Headers or Feather Female Headers you can connect a FeatherWing on top of your Feather board and let the board take flight.

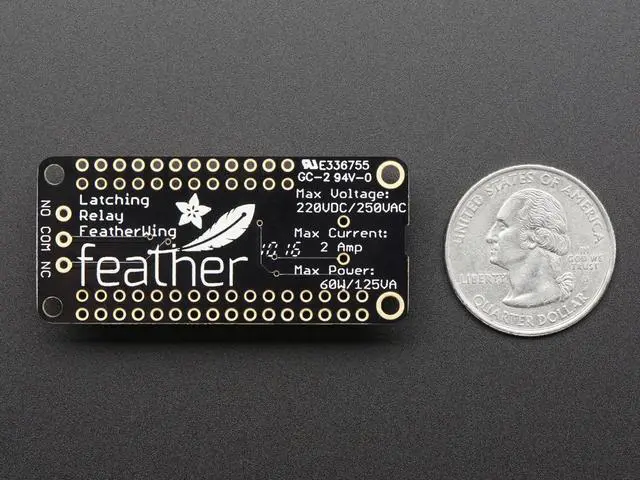

This is the Latching relay requires two pins, a SET and UNSET and instead of keeping the SET pin high, you only have to pulse each pin high for 10ms to latch the relay open or closed. You need two pins but save power. Note, if power is lost, the relay will stay in the last setting. You can switch up to 2A of resistive current at 30VDC or ~40VAC or lower. At 110VDC you can switch up to 0.6A, at 120VAC up to 0.5A, and at 250VAC you can switch up to 0.3A. Check the datasheet for the relay for the exact switching capacity, and of course, for reactive/inductive loads you will need to derate.

This isn' t a relay you can use to turn on and off your washer/dryer, stick to 60W or less.

Item Specifics

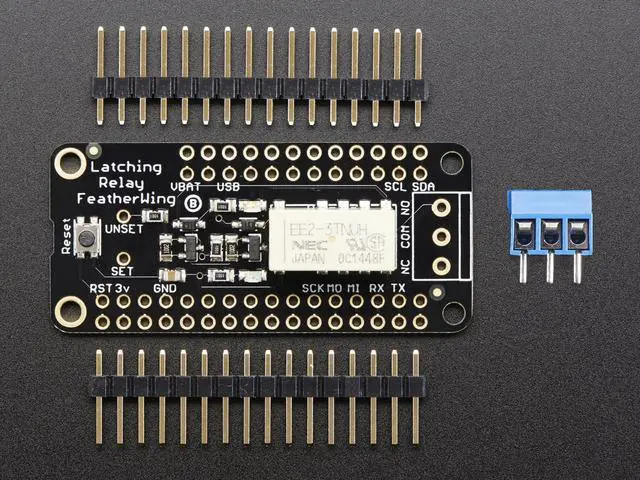

Fully assembled and tested PCB
1 - header
1 - 3-pin terminal block
Size: 50.8 mm x 22.9 mm x 11.4 mm / 2" x 0.9" x 0.45"
Weight (just the board): 5.3 g
Some light soldering is required.
