Adafruit ADS1015 12-Bit ADC - 4 Channel with Programmable Gain Amplifier

Key Features:

• Provides 12-bit precision at 3300 samples/second over I2C
• Comes on a breakout board with ferrites to keep the AVDD and AGND quiet
• Can be configured as 4 single-ended input channels, or two differential channels
• Up to 4 ADS1015' s connected on a single 2-wire I2C bus for 16 single ended inputs possible

For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1015 provides 12-bit precision at 3300 samples/second over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 12 bit converter.

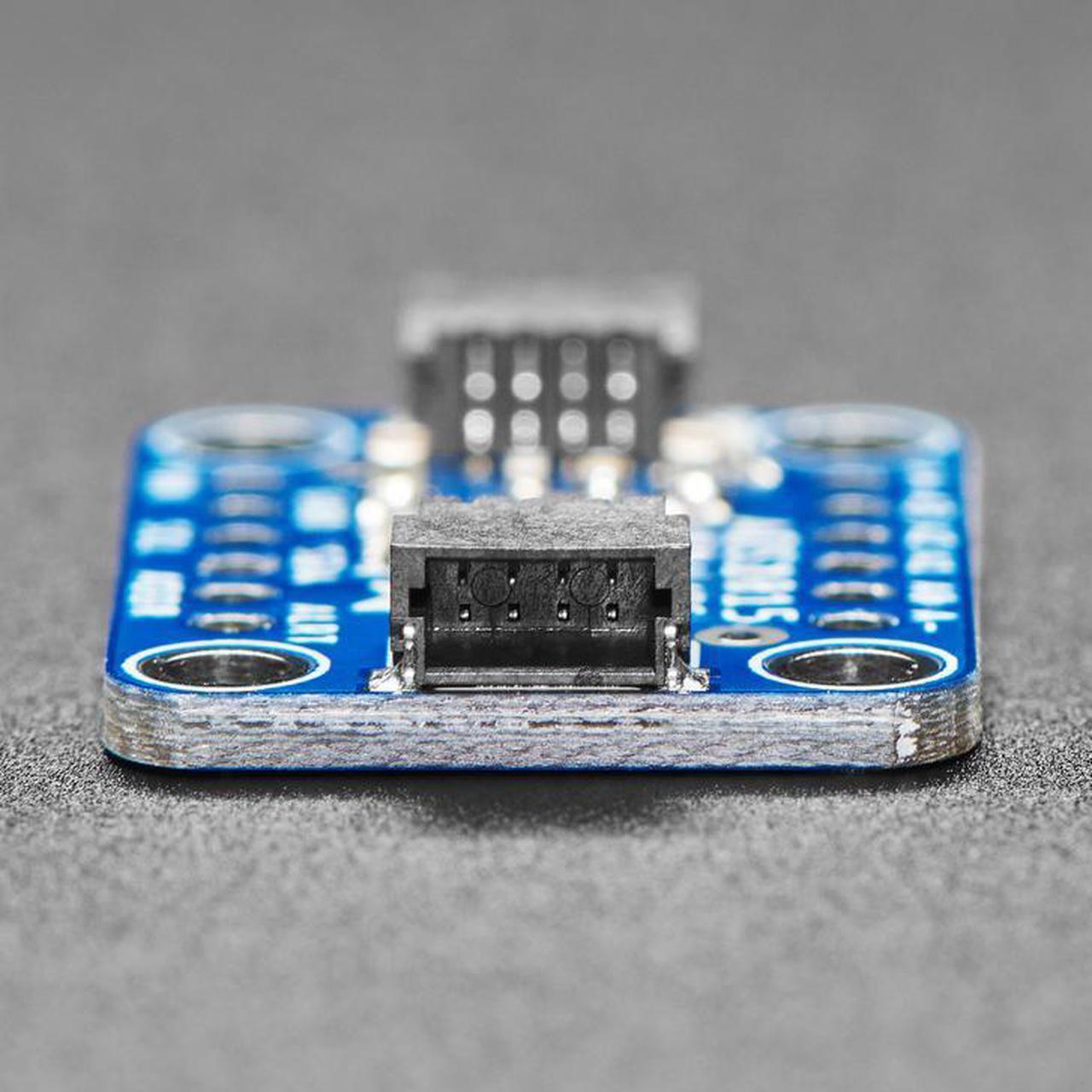

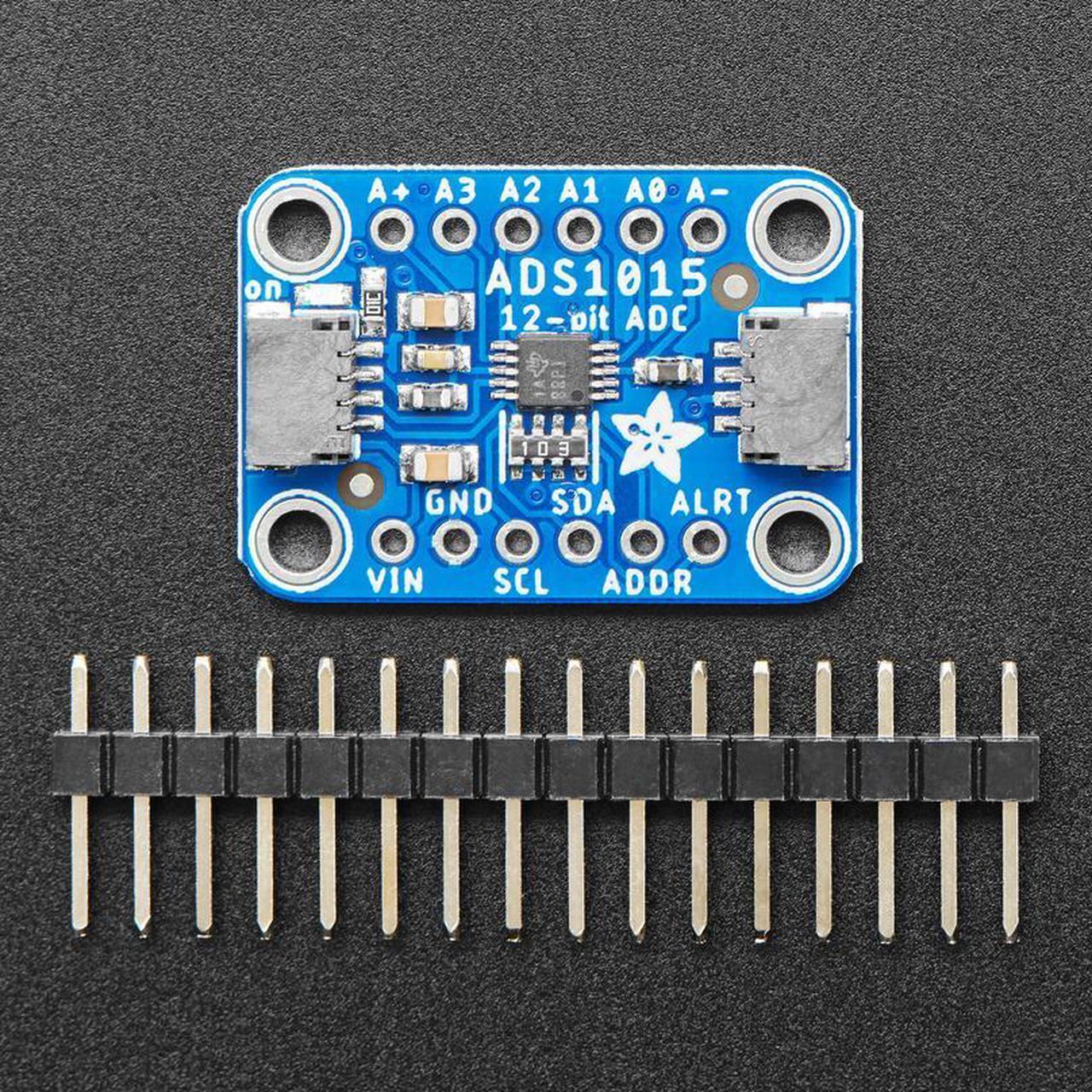

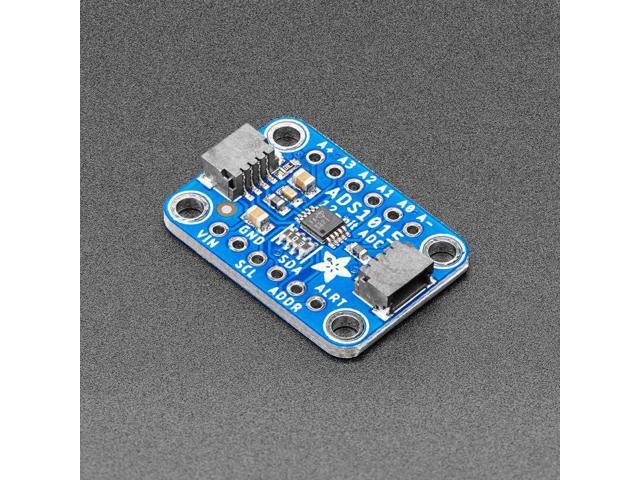

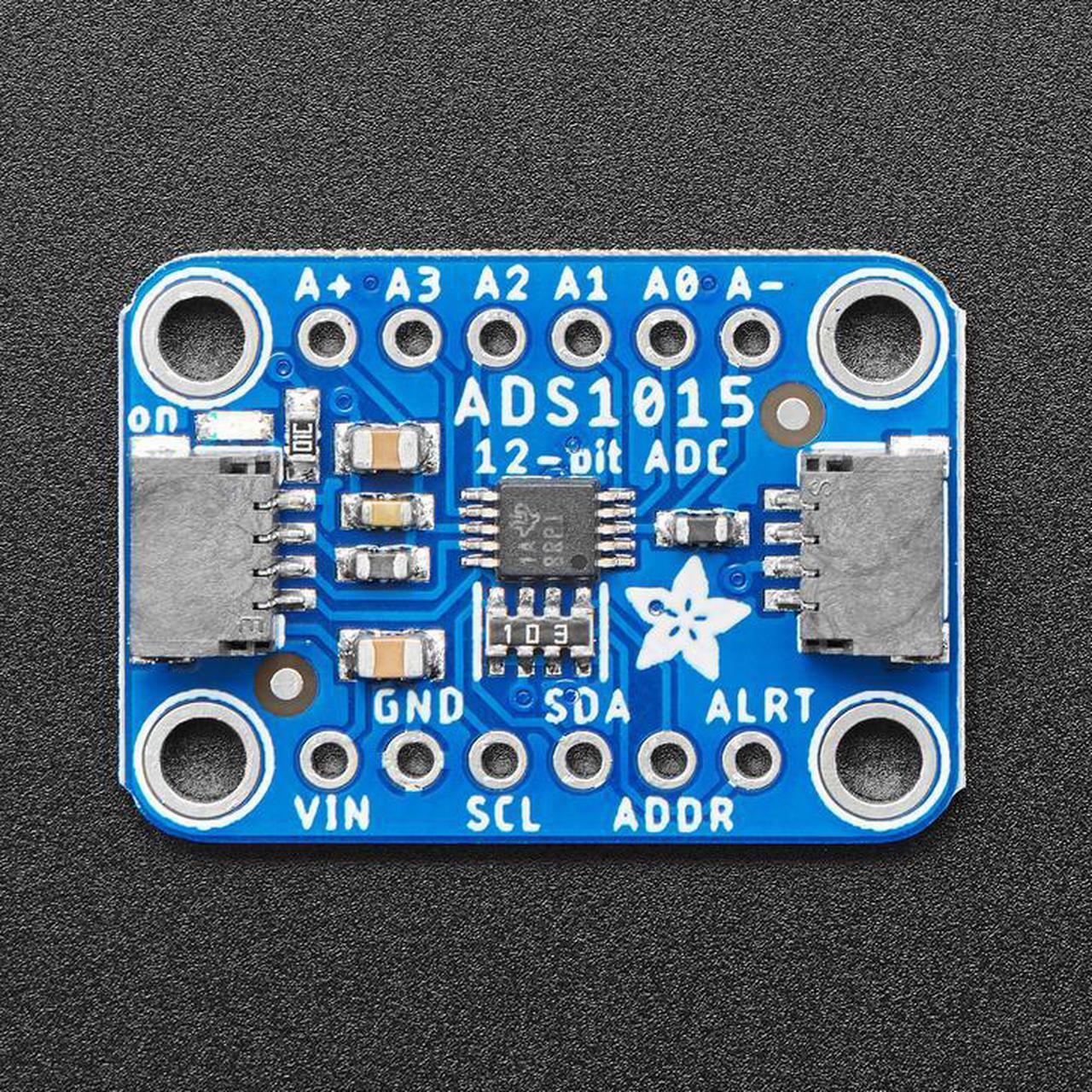

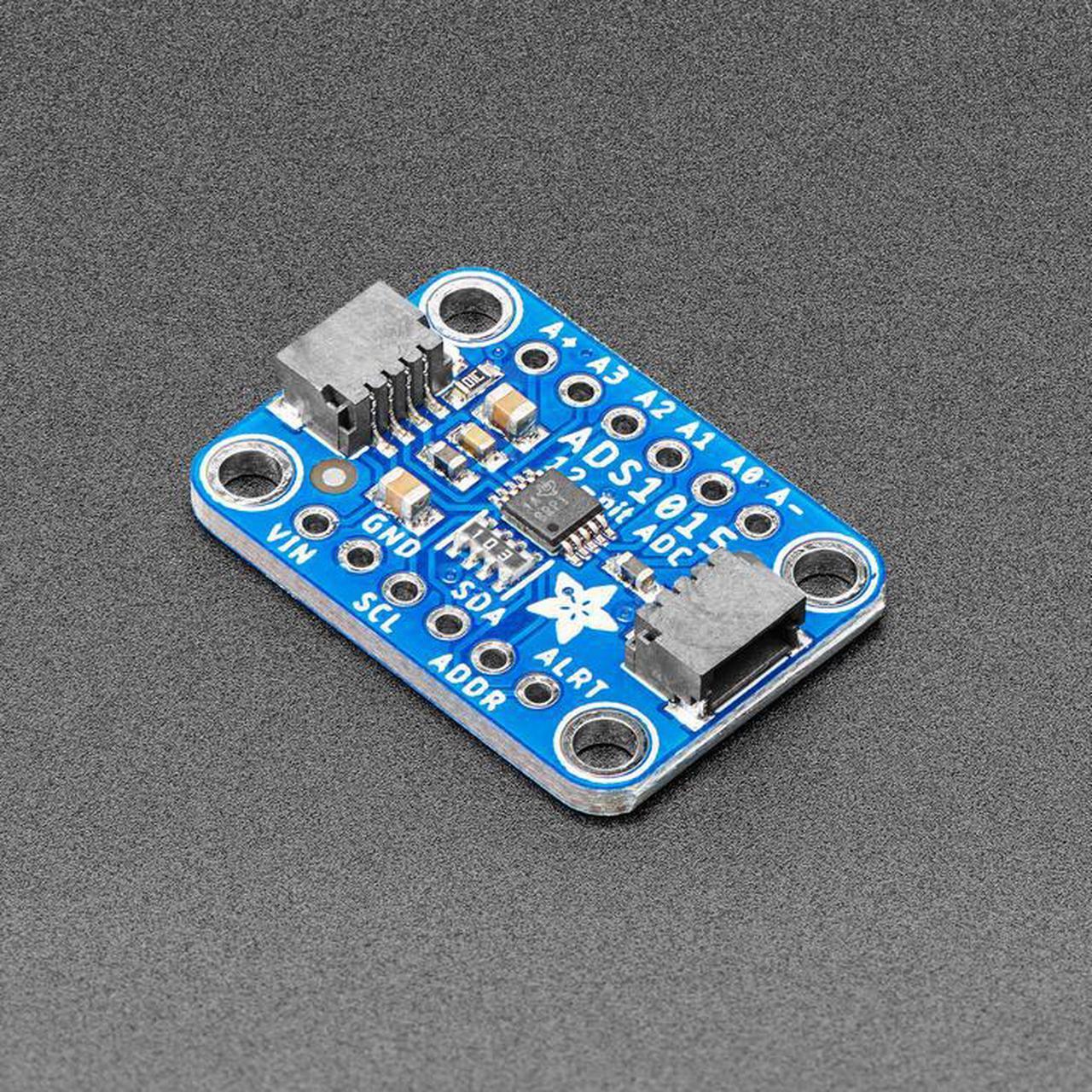

The chip' s fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options so you can have up to 4 ADS1015' s connected on a single 2-wire I2C bus for 16 single ended inputs.

To get you started, get example code for the Raspberry Pi or Arduino. Simply connect GND to ground, VDD to your logic power supply, and SCL/SDA to your microcontroller' s I2C port and run the example code to start reading data.

Item Specifics

Supply range: 2.0V to 5.5V
Current Consumption: Continuous
Mode: Only 150µ A Single-Shot Mode: Auto Shut-Down
Programable data rate: 128SPS to 3.3 kSPS
Internal Low-Drift Voltage Reference, Oscillator, and PGA
I2C INTERFACE: Pin-Selectable Addresses
Four Single-Ended OR Two Differential Inputs
Programable Comparator

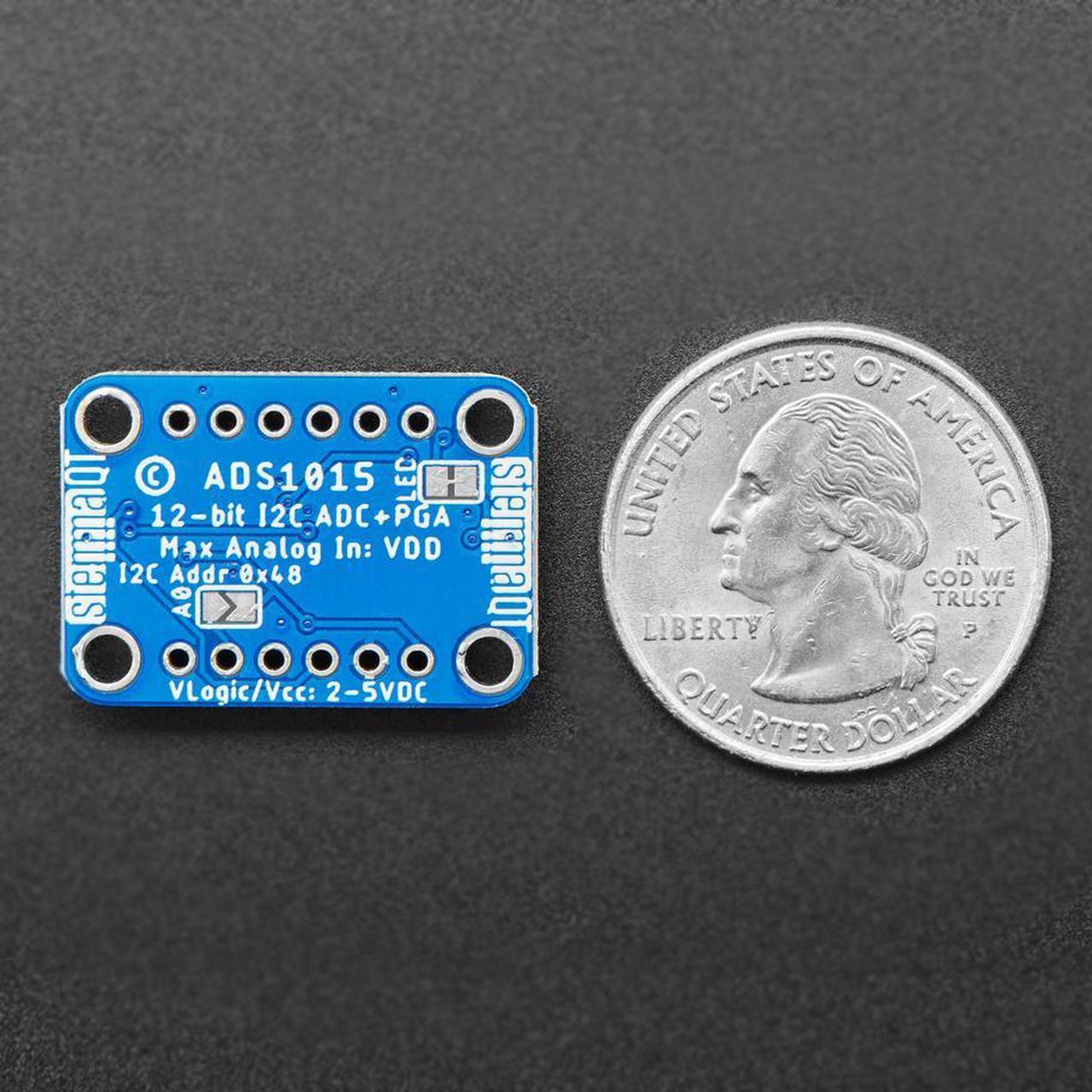

This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers
