$1,499.00
Ships from China.
Meet Your Seller

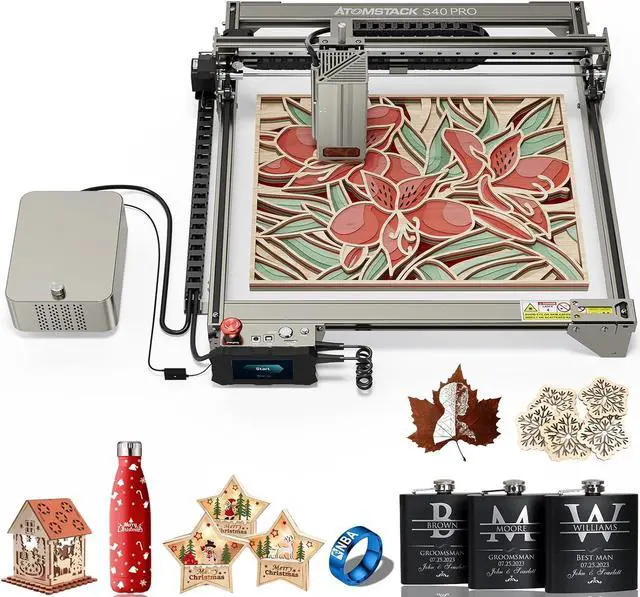

ATOMSTACK S40 Pro 210W Laser Engraving Machine with Automatic Air Assist Kits, 48W Industrial-Grade Laser Cutting Machine with Touchscreen, 24W/48W Dual Modes One Key Switch, Precious Gifts for Him
- One Key Switch Engraving/Cutting Mode- ATOMSTACK S40 Pro laser engraver adopts the most advanced 48W high optical power laser module, it can switch between 24W and 48W output power with one key by physical button. For different work of engraving and cutting open different modes, S40 Pro can be both fine engraving and powerful cutting. (24W mode is perfect for engraving, while the 48W mode is ideal for one-pass cutting)
- Ultra-Fine Engraving & Super Fast Cutting- Because of ultra-fine laser focus area reduced to 0.1*0.1mm and linear guide equipped, the S40 Pro laser engraving machine can directly engrave mirror stainless steel metal, ceramics, glass with very natural effect. Also it can easily cut 20mm basswood, 25mm pine and tung wood, 12mm MDF density board. The engraving and cutting speed is 40% higher than ATOMSTACK S30 Pro, which can be comparable to the cutting effect of 80W CO laser engraver.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Diverse Online and Offline Control Methods- The S40 Pro laser cutting machine has three control methods: COMPUTER (connected via USB to the laser engraving machine, controlled by LaserGRBL/LightBurn software), TOUCHSCREEN (insert a TF/SD card with the working trajectory or file, then control through the touchscreen), and SMARTPHONE (after firmware update, download our self-developed app, then connect to laser engraving machine via WiFi and finally control through the app).
Remarkable Automatic Switch Air Assist Kits- On the one hand, S40 Pro laser cutter is equipped with the latest F30 Pro air-assist kits, featuring a built-in dual pumps. On the other hand, with standard F30 Pro high flow air assist, you can turn on Lightburn M7 mode to achieve different modes of cutting/engraving automatic switch air assist. In this way, ATOMSTACK S40 Pro cutting capacity has been greatly enhanced, as well as cutting accuracy and quality can also be largely optimized.
Safety Protection and Other Creative Designs- Firstly, the panoramic light filtering glass protector plays a good role in protecting your eyes, which can filter 97% of the ultraviolet light. Secondly, the drag chain wire harness solution makes wire harness run smoothly without tangling and improves the wire life. Besides, configured with an emergency stop button, if there is an accident, you can stop the machine at any time. Reset switch and limit switch make the engraving process safer.
Product Model: AtomStack S40 Pro
Engraving size: 400*400mm ( 15.74 * 15.74" )
Cutting materials: 20mm basswood, 25mm pinewood, 20mm acrylic, 9mm MDF, 0.1 mm metal
Overall machine power: 210W
Laser output optical power: 40-48W
Laser wavelength: 455±5nm
Engraving accuracy: 0.01 mm
Engraving speed: 500mm/s(30000mm/min)
Cutting speed: 2200mm/min
Laser spot: 0.08 mm* 0.1 mm
Focusing mode: fixed focus laser, no focus
Laser protective cover: There is a protective shield on the laser that protects the user's eyes, no need to wear additional goggles.
Operating methods: Touchscreen, smartphone, computer
Operating software: LaserGRBL, LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system
Supported file formats: NC, BMP, JPG, PNG, DXF.
Data transfer method: USB connection
Input: 100-240V AC, 50/60HZ
Output: 12V 8.5A
Remarkable Automatic Switch Air Assist Kits- On the one hand, S40 Pro laser cutter is equipped with the latest F30 Pro air-assist kits, featuring a built-in dual pumps. On the other hand, with standard F30 Pro high flow air assist, you can turn on Lightburn M7 mode to achieve different modes of cutting/engraving automatic switch air assist. In this way, ATOMSTACK S40 Pro cutting capacity has been greatly enhanced, as well as cutting accuracy and quality can also be largely optimized.
Safety Protection and Other Creative Designs- Firstly, the panoramic light filtering glass protector plays a good role in protecting your eyes, which can filter 97% of the ultraviolet light. Secondly, the drag chain wire harness solution makes wire harness run smoothly without tangling and improves the wire life. Besides, configured with an emergency stop button, if there is an accident, you can stop the machine at any time. Reset switch and limit switch make the engraving process safer.
Specifications
:Product Model: AtomStack S40 Pro
Engraving size: 400*400mm ( 15.74 * 15.74" )
Cutting materials: 20mm basswood, 25mm pinewood, 20mm acrylic, 9mm MDF, 0.1 mm metal
Overall machine power: 210W
Laser output optical power: 40-48W
Laser wavelength: 455±5nm
Engraving accuracy: 0.01 mm
Engraving speed: 500mm/s(30000mm/min)
Cutting speed: 2200mm/min
Laser spot: 0.08 mm* 0.1 mm
Focusing mode: fixed focus laser, no focus
Laser protective cover: There is a protective shield on the laser that protects the user's eyes, no need to wear additional goggles.
Operating methods: Touchscreen, smartphone, computer
Operating software: LaserGRBL, LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system
Supported file formats: NC, BMP, JPG, PNG, DXF.
Data transfer method: USB connection
Input: 100-240V AC, 50/60HZ
Output: 12V 8.5A
