SparkFun Humidity and Temperature Sensor Breakout - HIH6130

Key Features

• Digital output-type relative humidity (RH) and temperature sensor combined in the same package
• Easy to prototype your next humidity-sensing application
• True temperature-compensated digital I2C output
• Wide operating temperature range allows for use in many applications

It' s not the heat but the humidity that gets you, at least that' s what they say. Really, both are important, what you need is a sensor that combines humidity and temperature readings. How about this Honeywell HumidIcon Digital Humidity/Temperature Sensor?

The HIH6130 is a digital output-type relative humidity (RH) and temperature sensor combined in the same package. This allows the RH measurement to be temperature compensated and provides a second, standalone temperature sensor output.

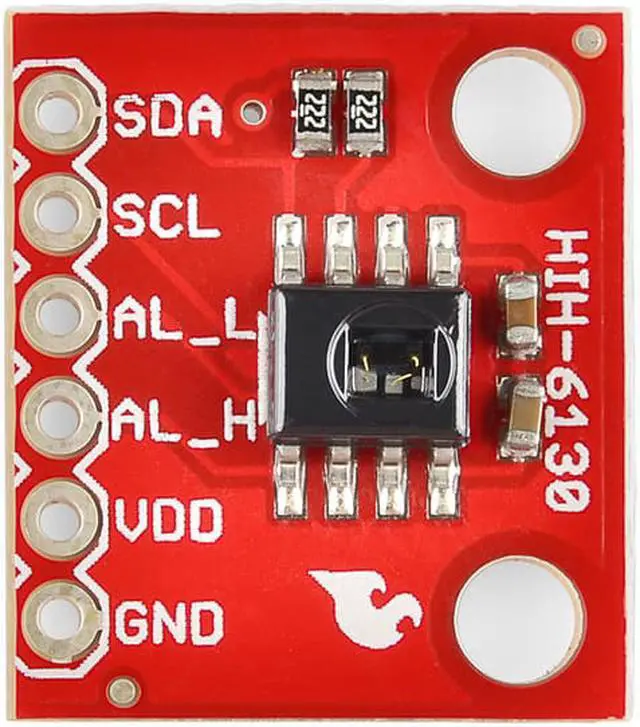

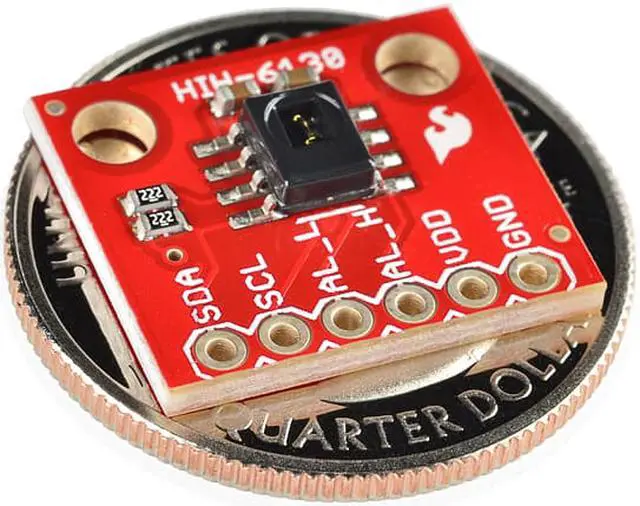

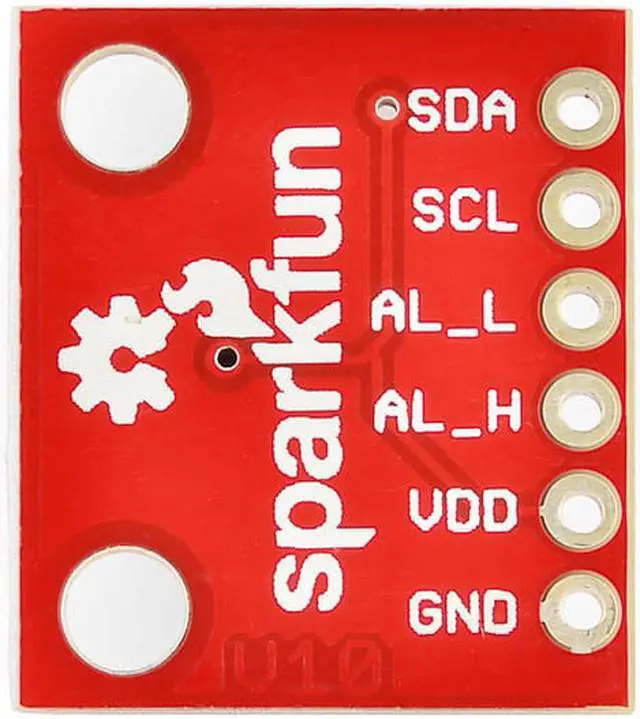

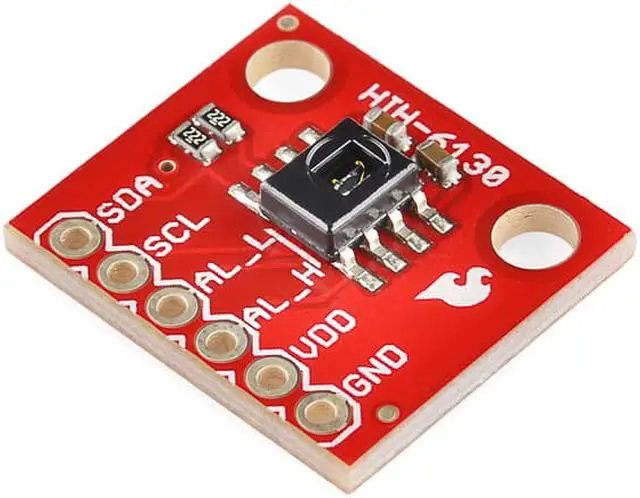

This breakout board gives you standard 0.1" spaced headers for each of the pins on this SOIC package, making it a lot easier to prototype your next humidity-sensing application. Communication with the HIH6130 is easily achieved over I2C using libraries like "Wire. h"

Item Specifics
Operating Voltage: 2.3 - 5.5 v
Compensated humidity range: 10-90% RH
Compensated temp. range 5-50°C
Basic soldering skills required
Fundamental programming skills required
Some electrical prototyping skills required
