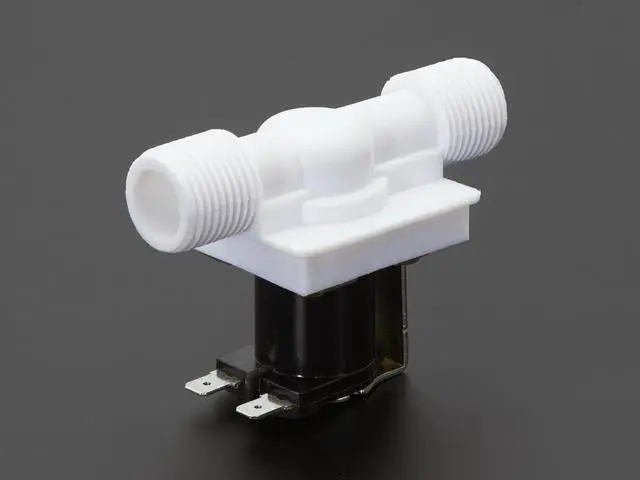

Adafruit 12V Plastic Water Solenoid Valve

Key Features:

• Two 1/2" (Nominal non-taped National Pipe) outlets
• Single direction flow
• Valve has a gasket arrangement inside requries minimum pressure requirement of 0.02 Mpa (3 PSI)
• Can actuate down at 6VDC

Control the flow of fluid using the flow of electrons! This liquid valve would make a great addition to your robotic gardening project. There are two 1/2" (Nominal non-taped National Pipe) outlets. Normally, the valve is closed. When 12VDC is applied to the two terminals, the valve opens and water can push through. The valve has a gasket arrangement inside, so there is a minimum pressure requirement of 0.02 Mpa (3 PSI). Also, liquid can only flow one direction.

We tried this solenoid at various DC voltages and found we could actuate it down at 6VDC (although it was a little slower to open). We suggest a TIP120 or N-Channel power FET with a 1N4001 kickback diode to drive this from a microcontroller pin. For a power supply, our 9V 1A or 12V 1A power adapters will do the job.

Item Specifics
1/2" Nominal NPS
Working Pressure: 0.02 Mpa - 0.8 Mpa
Working Temperature: 1? - 75?
Response time (open): ≤ 0.15 sec
Response time (close): ≤ 0.3 sec\
Actuating voltage: 12VDC (but we found it would work down to 6V)
Actuating life: ≥ 50 million cycles
Weight: 4.3 oz
Dimensions: 3.3" x 1.69" x 2.24"
