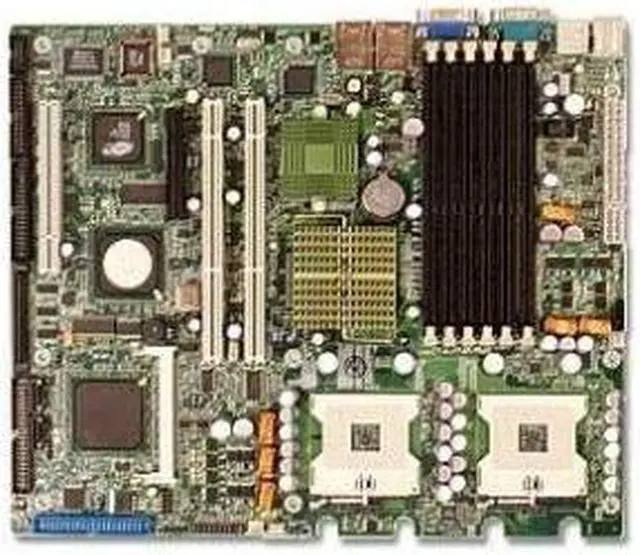

Supermicro X6DVA-4G Server Motherboard - Intel Chipset - Socket PGA-604

X6DVA-4G Server Board supports single or dual Intel Xeon Nocona processors (EM64T) at a 800 MHz front side bus. Based upon Intel's NetBurst microarchitecture, the Nocona processor supports the IA-32 software and includes features found in the Xeon processor such as Hyper Pipelined Technology, which includes a multi-stage pipeline, allowing the processor to operate at much higher core frequencies.

Packaged in a 604-pin Flip Chip Micro Pin Grid Array(FC-mPGA4) platform in a Zero Insertion Force(ZIF) socket (mPGA 604), the Nocona Processor (800 MHz) supports Hyper-Threading Technology and is ideal for high performance workstation and server environments with up to two processors on one system bus.

Features

* Product Type: Server Motherboard
* Chipset Manufacturer: Intel
* Chipset Model: E7320
* Number of Memory Slots: 6
* Gigabit Ethernet: Yes
* Number of SATA Interfaces: 2
* Onboard Video: On-board Video Chipset
* Number of Total Expansion Slots: 4
* Number of PCI Express x4 Slots: 1
* Total Number of USB Ports: 2
* Total Number of Onboard USB Ports: 2
* Total Number of PCI Express Slots: 1
* Memory Standard: DDR266/PC2100
* Memory Standard: DDR333/PC2700
* Memory Technology: DDR SDRAM
* Processor Socket: Socket PGA-604
* Brand Name: Supermicro
* Processor Supported: Xeon
* Total Processor Supported: 2
* Controller Type: Floppy Controller
* Controller Type: Ultra320 SCSI
* Controller Type: Serial ATA/150
* Controller Type: Ultra ATA/100 (ATA-6)
* Maximum Memory: 24 GB
* Product Type: Server Motherboard
* Chipset Manufacturer: Intel
* Chipset Model: E7320
* Number of Memory Slots: 6
* Graphics Controller Manufacturer: ATI
* Graphics Controller Model: Rage-XL
* Gigabit Ethernet: Yes
* Number of SATA Interfaces: 2
* Number of SCSI Interfaces: 1
* Onboard Video: On-board Video Chipset
* Number of Total Expansion Slots: 4
* Number of PCI Express x4 Slots: 1
* VGA: Yes
* Total Number of USB Ports: 2
* Total Number of Onboard USB Ports: 2
* Total Number of PCI Express Slots: 1
* Memory Speed Supported: 333 MHz
* Memory Speed Supported: 266 MHz
* Width: 12"
* Depth: 10"
* Memory Technology: DDR SDRAM
* Processor Socket: Socket PGA-604
* Brand Name: Supermicro
* Product Model: X6DVA-4G
* Product Name: X6DVA-4G Server Motherboard
* Processor Supported: Xeon
* Total Processor Supported: 2
* Controller Type: Floppy Controller
* Controller Type: Ultra320 SCSI
* Controller Type: Serial ATA/150
* Controller Type: Ultra ATA/100 (ATA-6)
* Maximum Memory: 24 GB
* Limited Warranty: 3 Year
