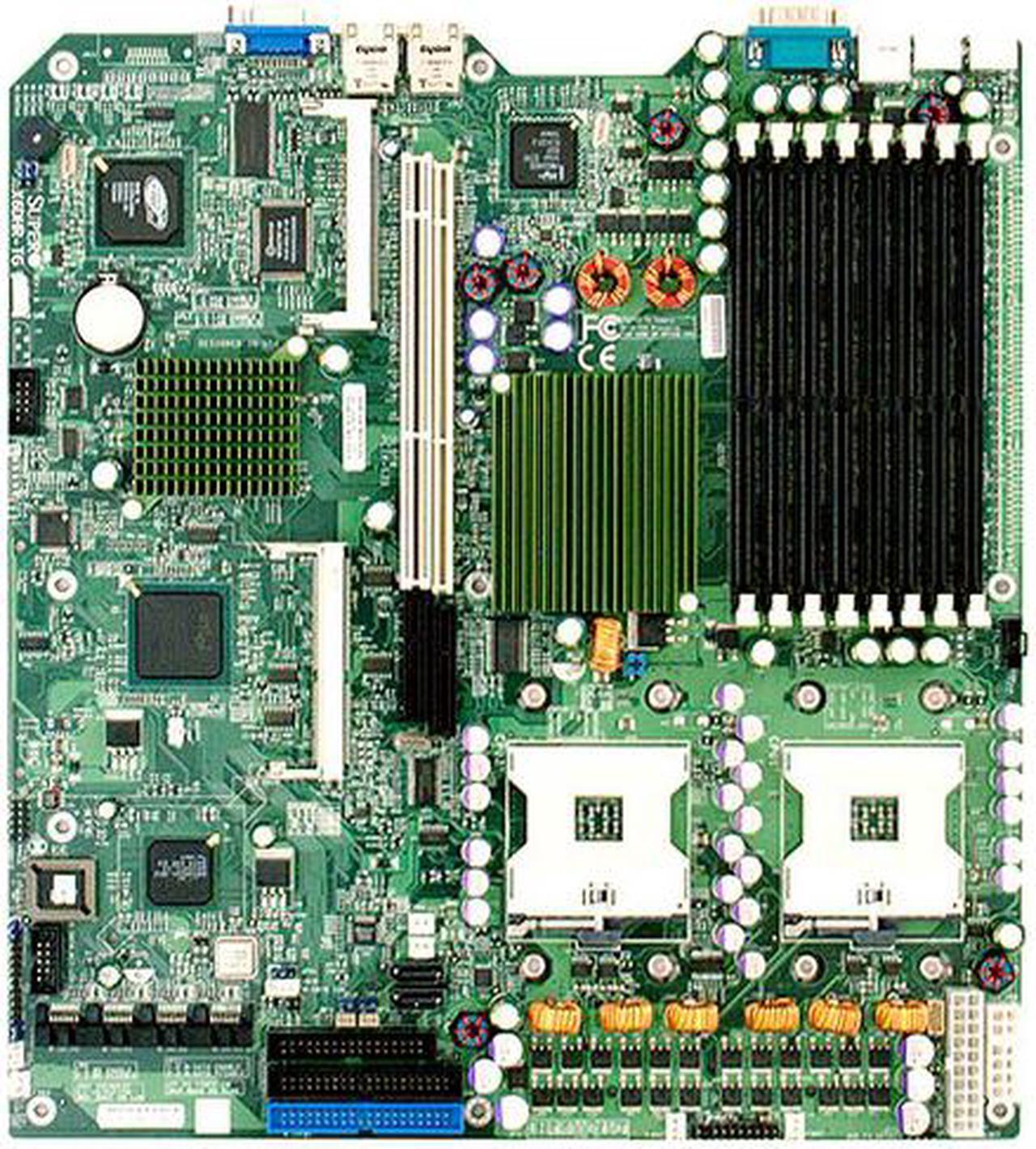

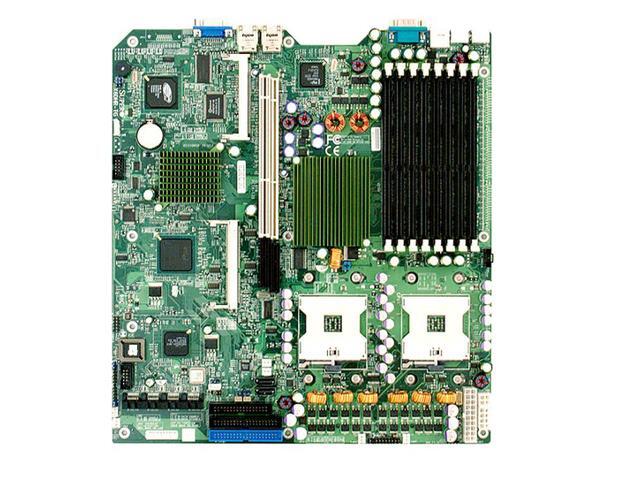

Supermicro X6DHR-TG Intel E7520 chipset Dual-Xeon 2 sockets S604 DDR333 SATA PCI-E w/video Gb-LAN USB2.0 EATX Motherboard
REFURBISHED Product Type
- Briefly about the product
- motherboard form factor EATX
- 2 sockets S604
- Intel E7520 chipset
- 8 DDR DIMM slots, 266-333 MHz
- ATI Rage XL video adapter
- 1.5 Gbit / s - 6
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Detailed specifications
CPU
Socket
2xS604
Supported Processors
Intel Xeon Nocona / Irwindale / LV
System bus
800 MHz
Chipset
Chipset
Intel E7520
Bios
Phoenix
SLI / CrossFire support
not
Memory
Memory
DDR DIMM, 266-333 MHz
Memory type
only ECC
Number of memory slots
eight
Dual channel support
there is
Maximum ECC Memory
32 GB
Disk controllers
IDE
number of slots: 2, UltraDMA 100
SATA
number of SATA 1.5Gb / s connectors: 6,, RAID: 0, 1, JBOD based on Intel ICH5R, Marvell 88SX6041
Expansion slots
Expansion slots
2xPCI-E x8, 2xPCI-X
PCI-X Type
1 PCI-X 64-bit 133MHz slot, 1 PCI-X 64-bit 100MHz slot
Audio Video
Sound
not
Built-in video adapter
there is, based on ATI Rage XL
Network
Ethernet
2x1000 Mbps, based on Intel 82546GB
Connection
Presence of interfaces
4 USB, 2xCOM, D-Sub, 2xEthernet, PS / 2 (keyboard), PS / 2 (mouse)
Rear connectors
2 USB, 1xCOM, D-Sub, 2xEthernet, PS / 2 (keyboard), PS / 2 (mouse)
Main power connector
20-pin
CPU power connector
8-pin + 4-pin
Extra options
Form factor
EATX
Additional Information
IPMI 2.0 slot
