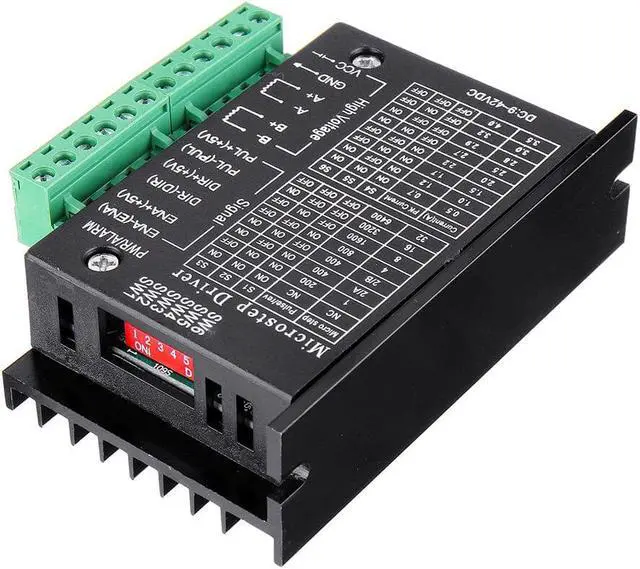

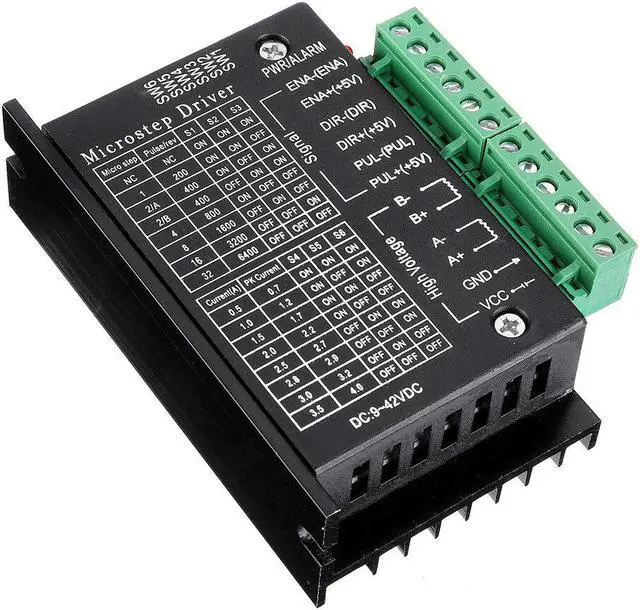

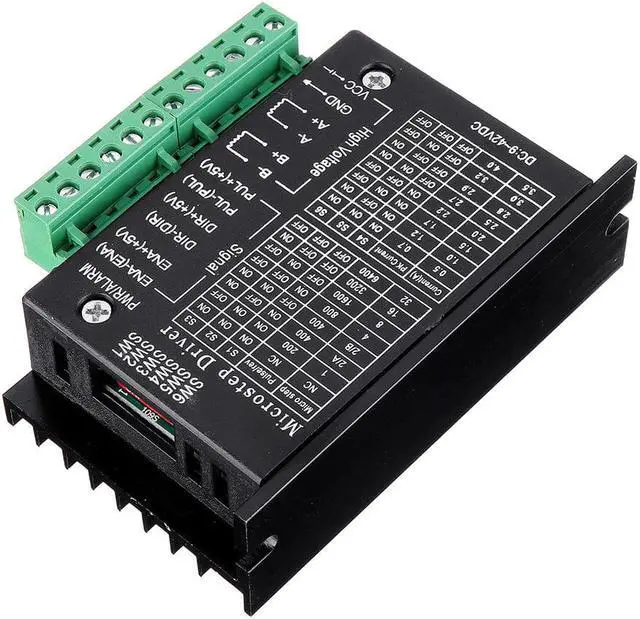

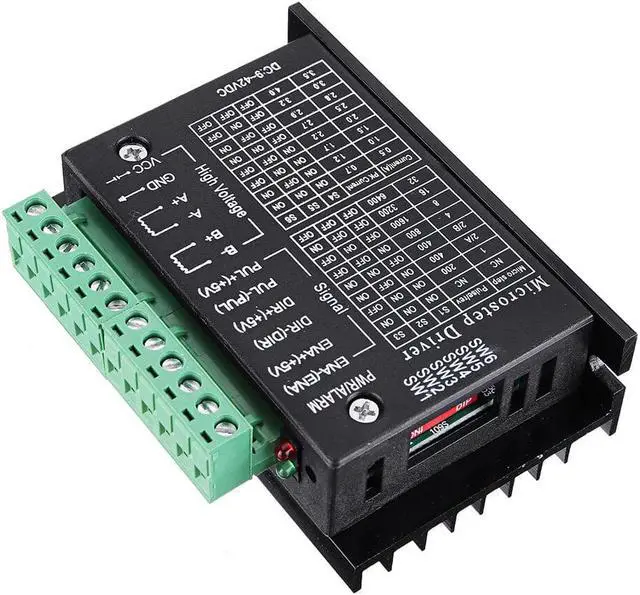

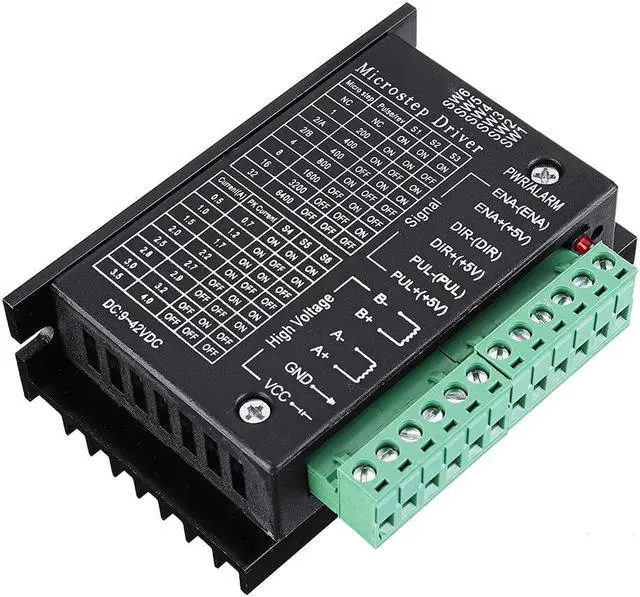

TB6600 Upgraded Stepper Motor Driver Controller for 4A 9~40V TTL 32 Micro-Step 2 or 4 Phase of 42/57 Stepper Motor 3D Printer CNC Part

Descriptions:

1. This is a updated version TB6600 4A two-phase stepper motor driver. Positive and negative control can be achieved.

2.

Select the 7-step subdivision control (1, 2/A, 2/B, 4, 8, 16, 32) through the 3-digit DIP switch.

4. Suitable for driving 57, 42 two-phase, four-phase

stepping motors.

5.

Achieve low vibration, low noise, high speed effect drive motor

Features:

-

H-bridge bipolar constant phase flow driven;

-

Eight output current optional, the maximum output current: 4.0A;

-

6 subdivision modes available,up to 32 segmentse;

-

The input signal high-speed optical isolation;

-

Offline hold function;

-

Semi-enclosed chassis can adapt to more hard environment;

-

Provide energy-efficient semiautomatic current lock function;

-

Built-in temperature protection and overcurrent protection.

Specifications:

-

Input voltage DC9-40V

-

Input current Recommended switching power supply 5A

-

Output current 0.5-4.0A

-

Maximum power 160W

-

Subdivision 1,2/A, 2/B, 4, 8, 16, 32

-

Temperature Operating temperature -10~45°C; storage temperature -40~70°C

-

Humidity, no condensation, no water drops

-

Gases are prohibited from flammable gases and conductive dust

Package Included:

1 x TB6600 upgraded stepper motor driver
