Touch Automatic Leveling Sensor Hotbed Precision Printing Sensor For 3D Printers

Description:

The Touch automatic leveling sensor is a device that uses the Hall effect to achieve leveling. The position of the point can be obtained by touching the point on the hot bed, and then during printing, the z-axis height can be adjusted to compensate, and printing can be achieved even when the platform is not flat.

Features:

Intelligent leveling, intelligent compensation of Z-axis height, making printing easier

Accurate measurement, small error, extremely high leveling accuracy

Injection molding probe, light and flexible

Patch positioning sensor, higher consistency

Brand new translucent white PC case, more beautiful

Specifications:

Voltage: 5V

Current: 15mA

Max Current(Peak): 300mA

Shell Material: PC

Shell Color: white translucent

Cable Length: short 200mm long 1000mm

Wiring:

3Pin:

Green: -, GND

Red: +5V

Orange: Signal Cable

2Pin:

Black: -, GND

White: Zmin

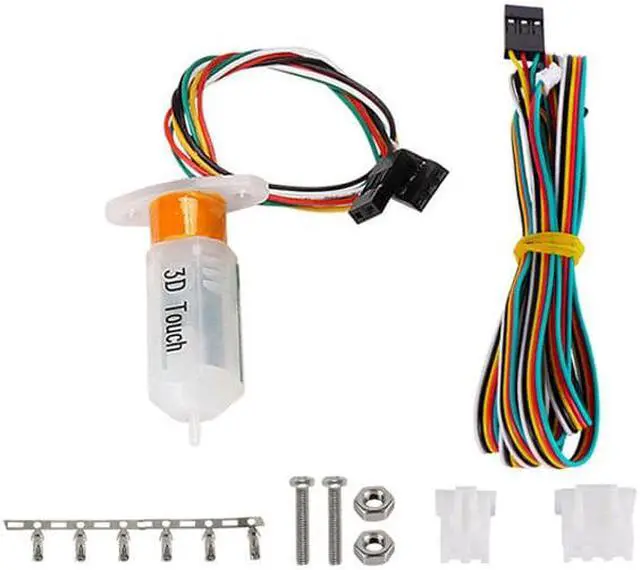

Package Included:

1* Leveling Sensor

1* 200mm Cable

1* 1000mm Cable

2* M3 nuts and screws

2* XH2.54mm Terminals

1* Coiling Terminal

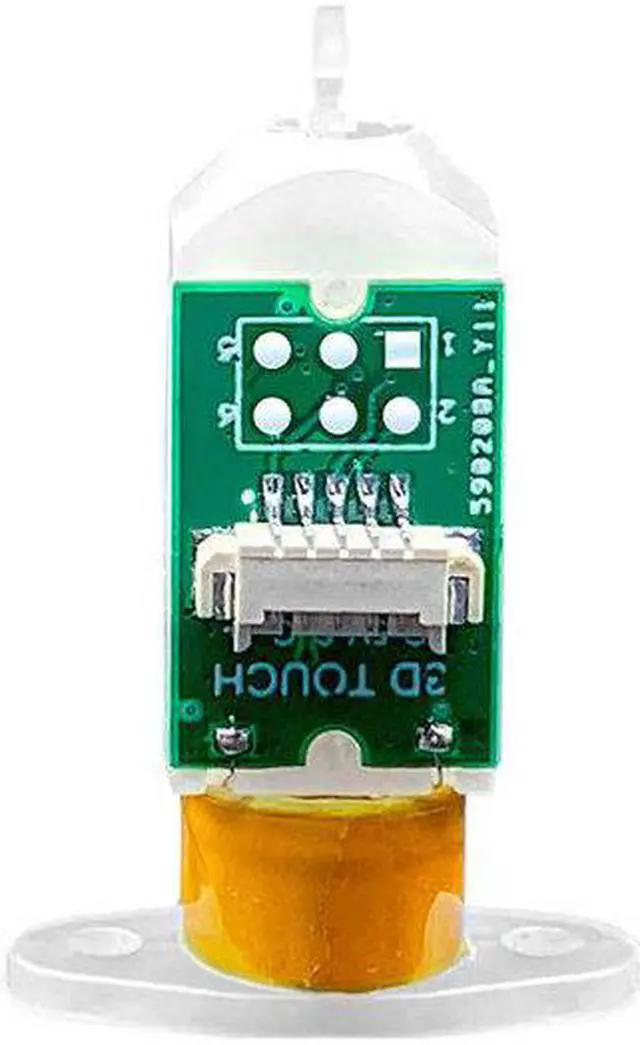

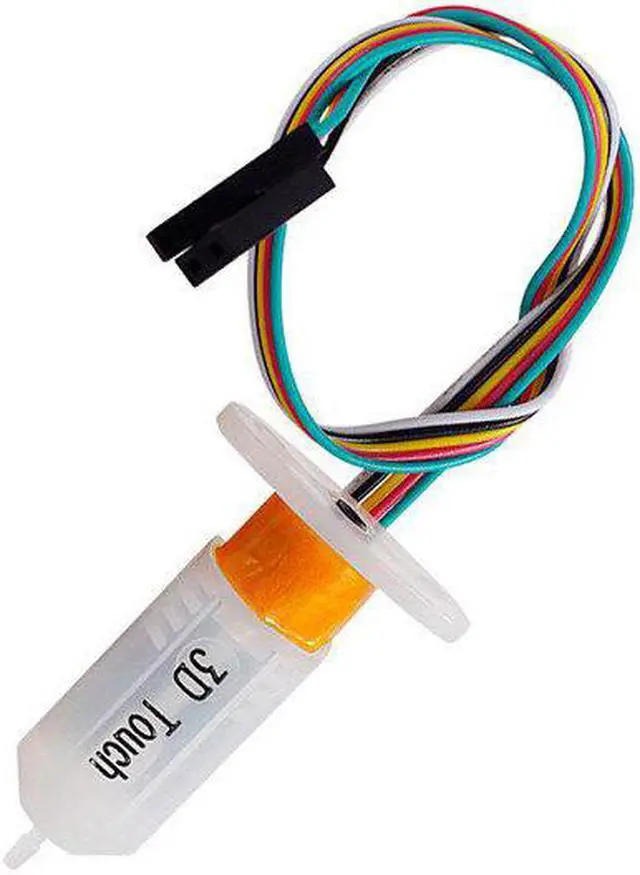

Details Picture:
