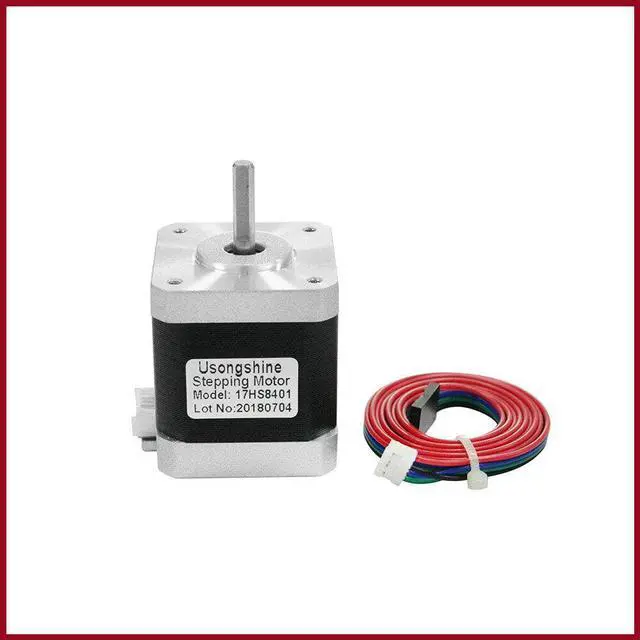

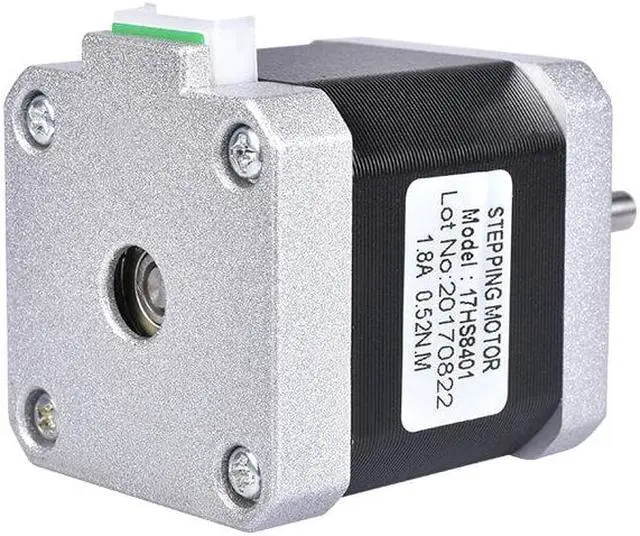

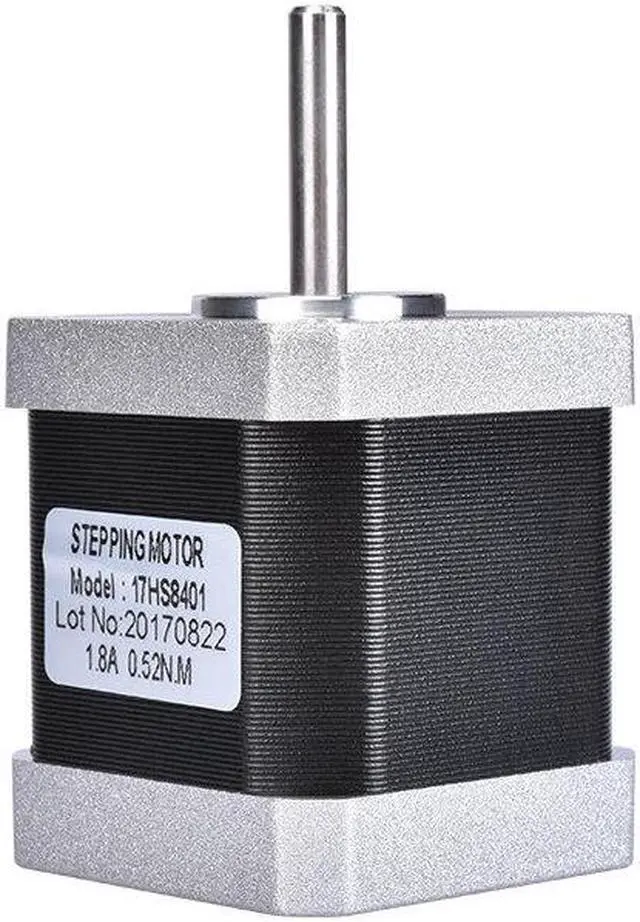

17HS8401 48mm Nema 17 Stepper Motor 42 Motor 1.8A 52N.cm 4-lead for 3D Printer CNC Laser Engraving

Specification:

Model

17HS8401

Phase

2

Step Angle

1.8°

Motor Size

42 x 48mm

Shaft

"D" shaft 21 x 5mm

Outlet way

"4" plug line

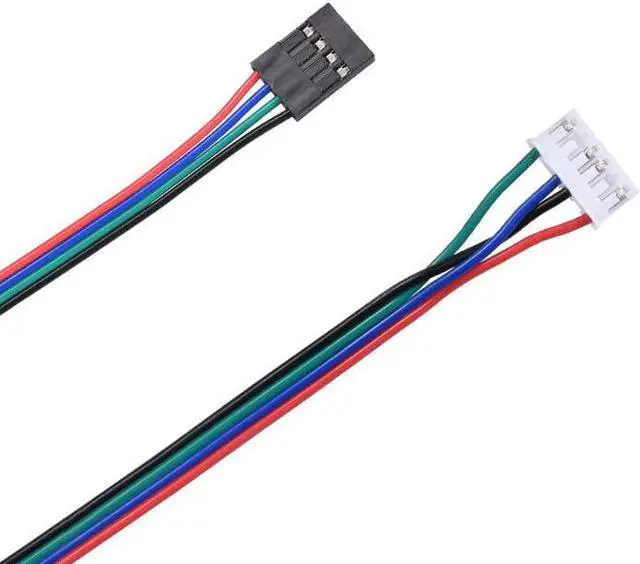

Motor leads

Dupont line(1M)

Adapter drive

Two-phase step drive

Scope

3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,

Packaging Machinery, Stage Lighting, Laser engraving, Automation

Equipment,  Non-standard Equipment, Placement machine ect.

Electrical Specifications:

Model No.

Step Angle

Motor Length

Rated

Current

Resistance

/Phase

Inductance

/Phase

Holding Torque

Couple

Relaxing

Inertia Of

Rotor

Lead

( °)

(L)mm

(A)

()

(mH)

(N.cm)

(N.cm)

(G. cm²)

(No.)

17HS8401

1.8

48

1.8

1.8

3.2

52

2.6

68

4

General Specification:

Precision angle step

±5% (full step, no charge)

Resistance accuracy

±10%

Precision inductance

±20%

Temperature rise

80deg Max (rated current, 2 phase on)

Ambient temperature

( - 20°)-(+ 50°)

Insulation resistance

100M Min, 500VDC

Insultion Force

500VAC for a minute

Features:

1. Low noise.

2. Low heat.

3. Smooth operation.

4. Good acceleration performance.

Package Included:

1 X 17HS8401 Motor
