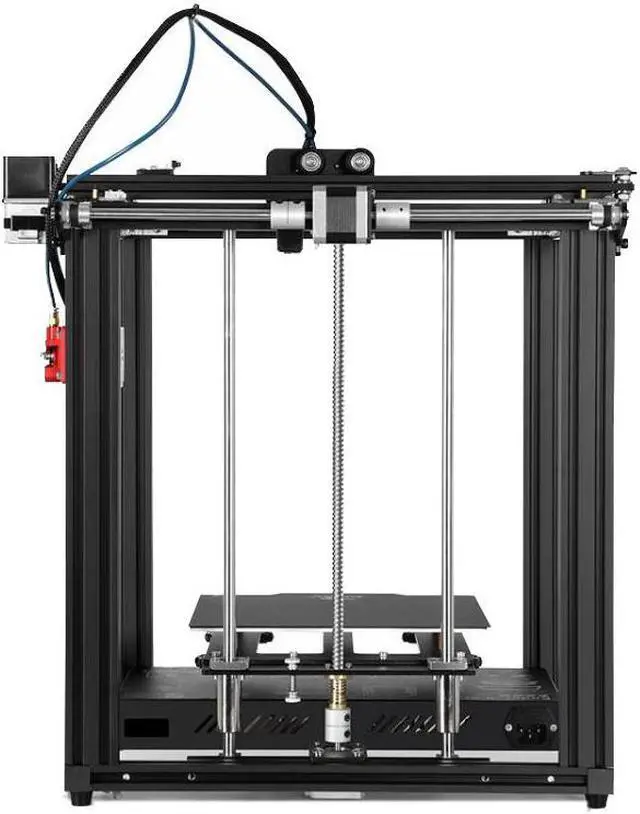

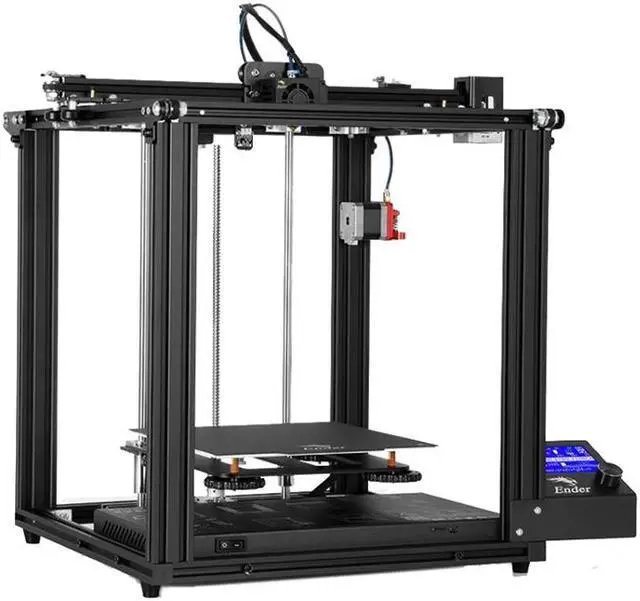

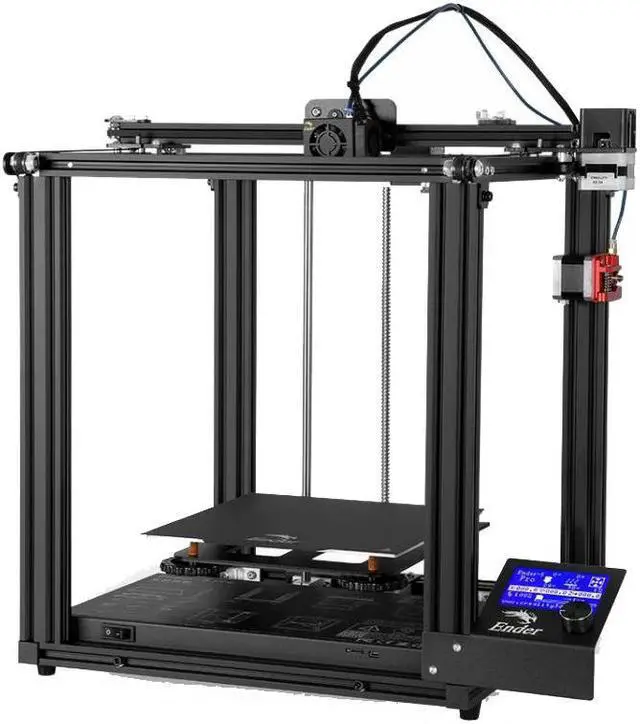

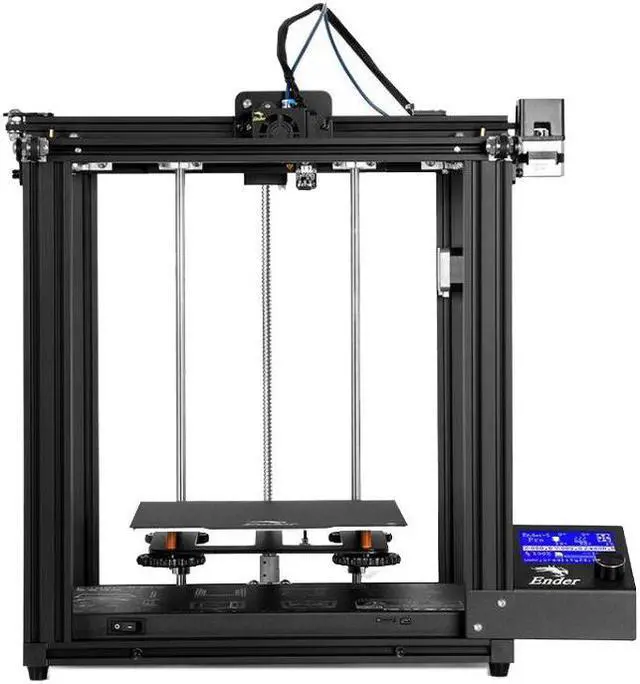

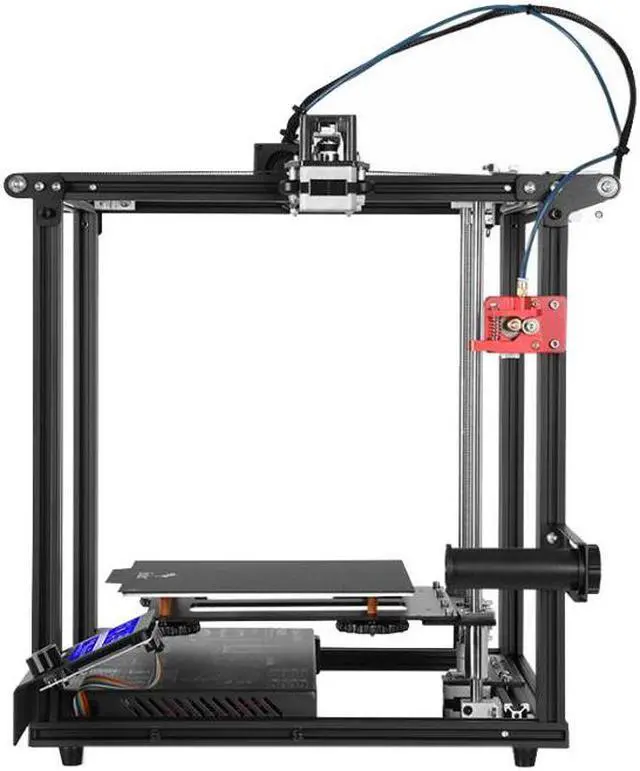

Ender-5 Pro 3D Printer Silent Board Pre-installed 220*220*300mm Print Size with Removable Platform/Dual Y-Axis/Modular Design

Warm Tips

The package will not contain U disk/ card.

And the motherboard currently equipped with Ender-5 pro is still V1.1.5.

Download File:

* Ender-5Pro:

V1.1.5/V4.2.2 Mainboard Firmware/BL Touch Firmware Download

1. Assembling video

2. What should I do if the Ender-5 does not print and the pipe is blocked? Cleaning nozzle throat tutorial

3. Installation manual

4. Ender-5 Pro_ data_English_V.2.1

5. card file

About Ender 5 Pro 3D Printer upgraded features:

Upgraded Mainboard

One attribute that is unique to the Ender 5 Pro 3D Printer is the new V1.15 silent Mainboard with TMC2208 drivers, allowing for quieter and more precise printing performance. This motherboard also installed Marlin 1.1.8 and Bootloader, and enabled the hot track protection function to provide additional protection when the printer reaches abnormally high temperatures.

Metal Extruder Frame

Another new addition to the Ender 5 Pro 3D Printer is a highly durable metal extruder frame. This feature provides stronger pressure while pushing filament through the 3D Printer's nozzle, which the manufacturer claims will bolster the overall printing performance. This upgraded metal extruder kit comes equipped with an adjustable bolt so that users can tweak the pressure of the extruder gear to best fit whichever filament is selected.

New and Improved Filament Tubing
