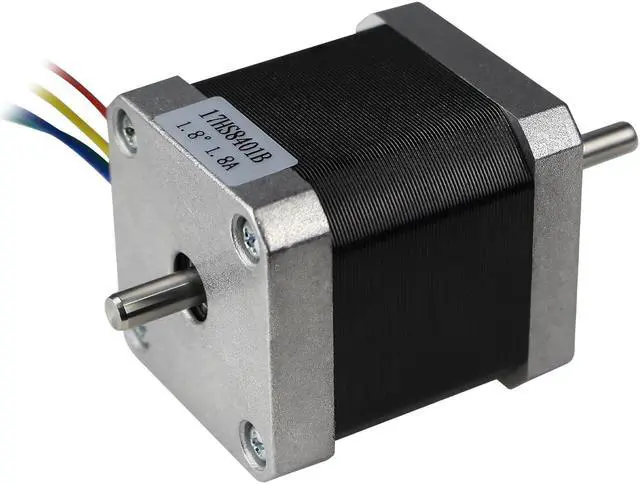

CNCTOPBAOS Nema17 Stepper Motor 78oz.in 48mm Length 1.8A Dual Shaft for 3D Printer/Milling/CNC Router Machine 17HS8401B
- Model: 17HS8401B; Phase: 2 Phase; Type: Hybrid; Step Angle: 1.8degree; Current: 1.8A; Holding torque: 78oz-in 52N.cm; 4 Lead Wires; Motor Size: 42x42x48 mm 1.65"x1.65"x1.89"; Weight: 0.9 LB
- Advanced Manufacturing Technology: Advanced winding technology is used, and the copper wire is evenly arranged, which is not easily deformed during long-term operation
- Materials: The motor coil is made of pure copper coil, with low heat generation and extended service life. The rotor surface is coated with imported epoxy resin adhesive, making the motor magnetic field more stable,and prevent shaft jamming during operation.The body shell adopts a high hardness motor steel shell, which is sturdy and durable, with frosted metal side walls to increase friction
- Shaft not not same on both sides: Motor front shaft is 5mm diameter shaft and 24mm lenth; Motor back shaft is 5mm diameter and 10mm length
- Applications: Semiconductor Equipment, Milling Machine, Engraver Machine , CNC Rou
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: 17HS8401B;
Phase: 2 Phase;
Type: Hybrid;
Step Angle: 1.8 degree;
Current: 1.8A;
Holding torque: 78oz-in 52N. cm; 4 Lead Wires;

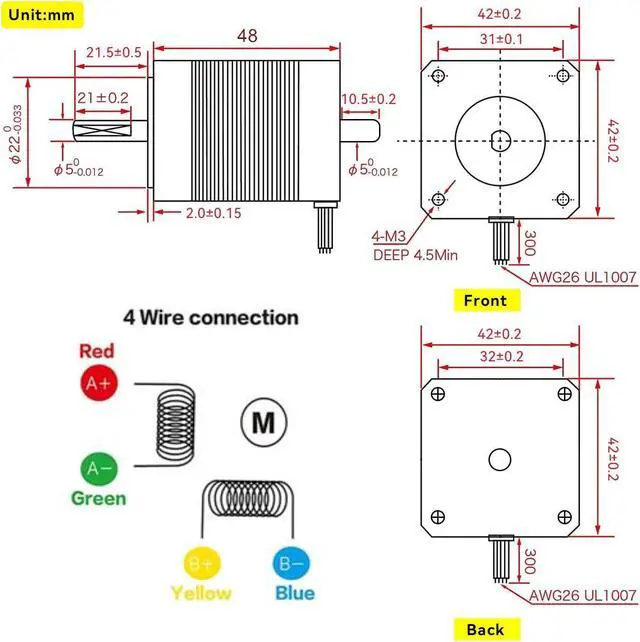

Motor Size: 42x42x48 mm 1.65 " x 1.65 " x 1.89 ";
Weight: 0.9 LB
Advanced Manufacturing Technology: Advanced winding technology is used, and the copper wire is evenly arranged, which is not easily deformed during long-term operation

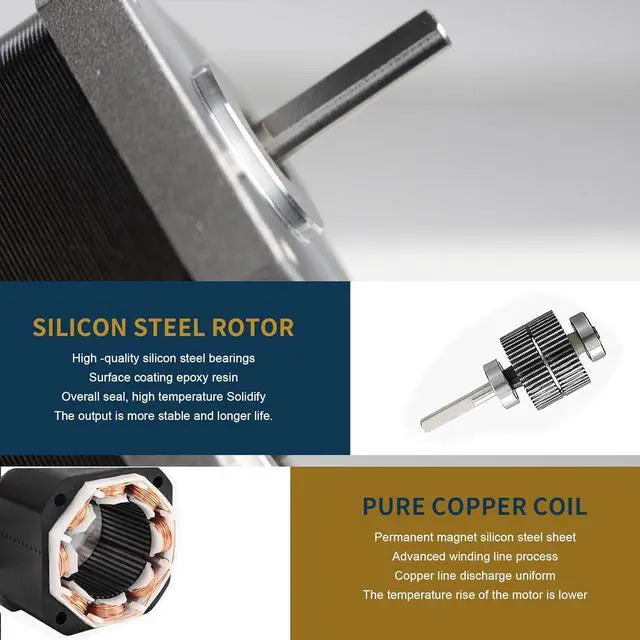

Materials: The motor coil is made of pure copper coil, with low heat generation and extended service life. The rotor surface is coated with imported epoxy resin adhesive, making the motor magnetic field more stable, and prevent shaft jamming during operation. The body shell adopts a high hardness motor steel shell, which is sturdy and durable, with frosted metal side walls to increase friction
Shaft not not same on both sides: Motor front shaft is 5mm diameter shaft and 24mm lenth; Motor back shaft is 5mm diameter and 10mm length
Applications: Semiconductor Equipment, Milling Machine, Engraver Machine, CNC Routers, 3D printers, industrial equipment and automation devices etc
Phase: 2 Phase;
Type: Hybrid;
Step Angle: 1.8 degree;
Current: 1.8A;
Holding torque: 78oz-in 52N. cm; 4 Lead Wires;
Motor Size: 42x42x48 mm 1.65 " x 1.65 " x 1.89 ";
Weight: 0.9 LB
Advanced Manufacturing Technology: Advanced winding technology is used, and the copper wire is evenly arranged, which is not easily deformed during long-term operation
Materials: The motor coil is made of pure copper coil, with low heat generation and extended service life. The rotor surface is coated with imported epoxy resin adhesive, making the motor magnetic field more stable, and prevent shaft jamming during operation. The body shell adopts a high hardness motor steel shell, which is sturdy and durable, with frosted metal side walls to increase friction
Shaft not not same on both sides: Motor front shaft is 5mm diameter shaft and 24mm lenth; Motor back shaft is 5mm diameter and 10mm length
Applications: Semiconductor Equipment, Milling Machine, Engraver Machine, CNC Routers, 3D printers, industrial equipment and automation devices etc
