Adafruit LCD Shield Kit & 16x2 Character Display

Key Features:

• Perfect for when you want to build a stand-alone project with its own user interface
• 4 directional buttons plus select button allows basic control
• Uses ONLY 2 pins!
• Comes as a kit - some soldering required

This new Adafruit shield makes it easy to use a 16x2 Character LCD. The Adafruit LCD Shield Kit with 16x2 character display is a shield that solves the problem most LCDs have. They use too many pins. This shield lets you control a 16x2 Character LCD, up to 3 backlight pins AND 5 keypad pins using only the two I2C pins on the Arduino! The best part is you don't really lose those two pins either, since you can stick i2c-based sensors, RTCs, etc and have them share the I2C bus. This is a super slick way to add a display without all the wiring hassle.

The shield is designed for 'classic' Arduinos such as the Uno, Duemilanove, Diecimilla, etc. It uses the I2C pins at Analog 4 and Analog
5. It will also work perfectly with Arduino Mega R3's which have the extra SDA/SCL I2C pins broken out. Earlier Mega's have the I2C pins in a different location and will require you to solder two wires from the I2C pins on the shield and plug them into the different I2C locations at Digital 20 & 21.

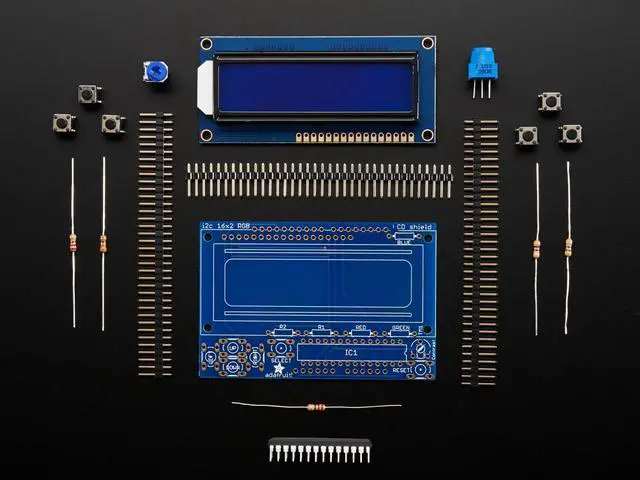

Item Specifics
1 - PCB
1 - 16x2 Character LCD display
3 - sticks male header
6 - 6mm buttons
4 - resistors
1 - i2c Port Expander chip
1 - 10k trim potentiometer
Dimensions: 2.1" x 3.2"
This board/chip uses I2C 7-bit address 0x20
Mounting hole size is 2.5 mm
Some soldering required
