Adafruit NeoPixel FeatherWing - 4x8 RGB LED Add-on For All Feather Boards

Key Features

• 4x8 RGB LED add-on for all Adafruit feather boards
• 32 configurable RGB LEDs with each pixel individually addressed
• Only one pin required to control all LEDs
• A level-up shifter converts the 3.3V logic of the Feather to the power line voltage

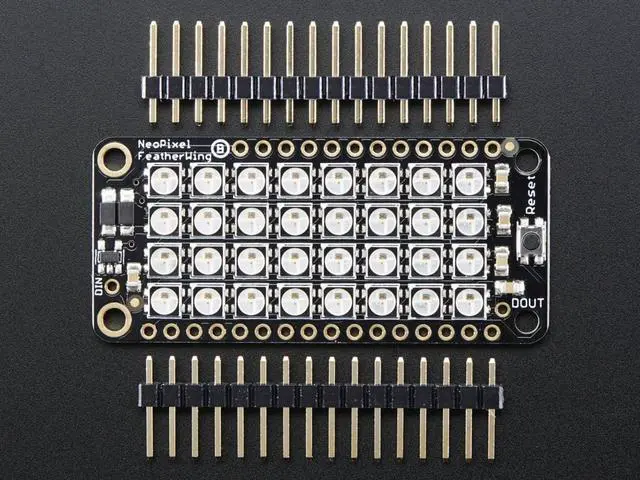

This is the NeoPixel FeatherWing, a 4x8 RGB LED Add-on For All Feather Boards! Using Feather Stacking Headers or Feather Female Headers you can connect a FeatherWing on top or bottom of your Feather board and make your Feather board strut like a peacock at a rave.

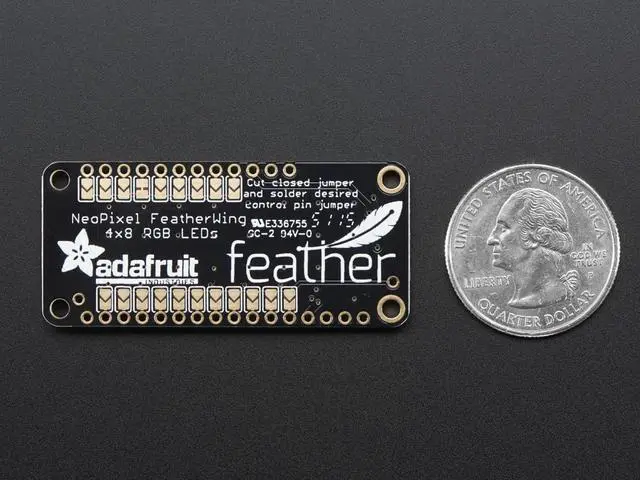

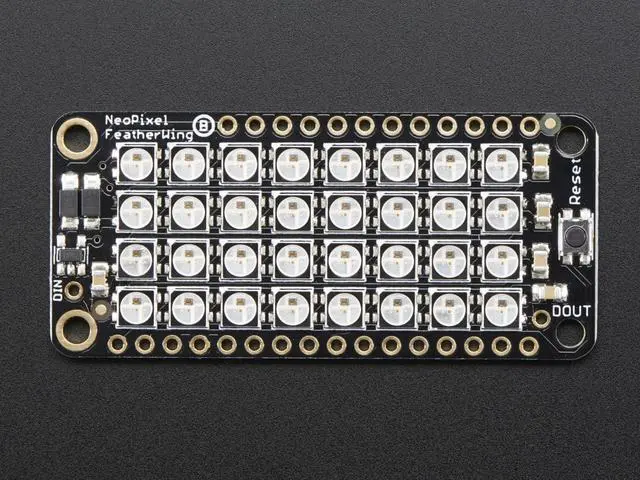

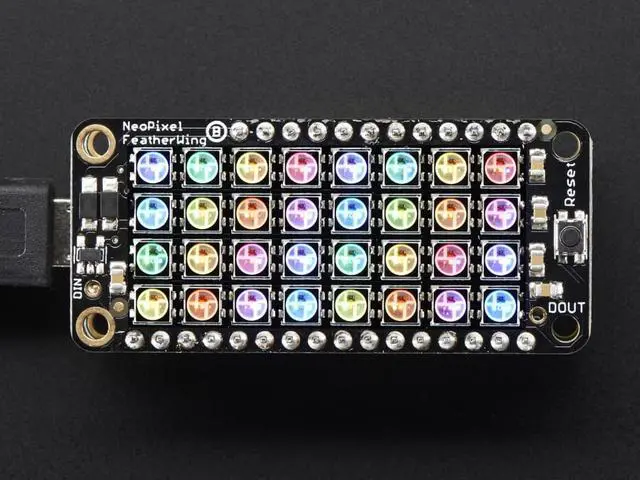

Put on your sunglasses before staring into these 32 configurable eye-blistering RGB LEDs. Arranged in a 4x8 matrix, each pixel is individually addressable. Only one pin is required to control all the LEDs. On the bottom it has jumpers for the DIN line to any of the I/O pins on a Feather. You can cut the default jumper trace and use any pin you like.

To make it easy to start, the LEDs are by default powered from either the USB power line or Battery power line, whichever is higher. Two Schottky diodes are used to switch between the two. This power arrangement is able to handle 1 Amp of constant current draw and maybe 2A peak, so not a good way to make a flashlight. It's better for colorful effects.

Item Specifics
Size: 50.8mm x 22.9mm x 2.7mm / 2" x 0.9" x 0.1"
Weight: 5.2g
Not recommended for ESP32 Feather due to a NeoPixel timing issue that makes it hard to control more than 30 pixels
