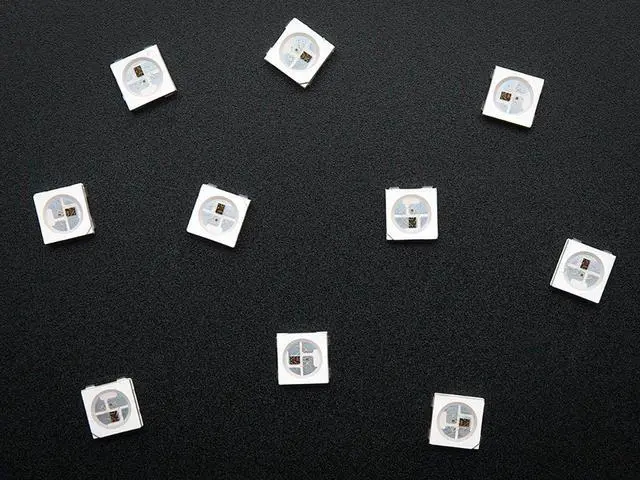

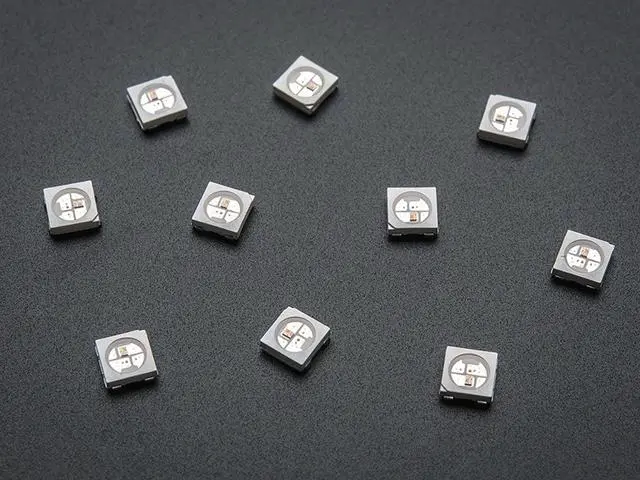

Adafruit NeoPixel 5050 RGB LED with Integrated Driver Chip - 10 pack

Key Features

• 4 pin LED chip version
• LEDs are 'chainable' by connecting the output of one chip into the input of another
• Requires a real-time microcontroller

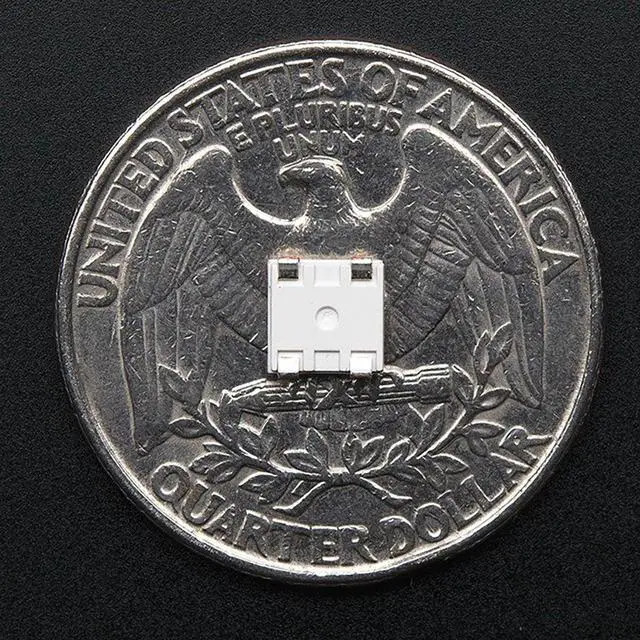

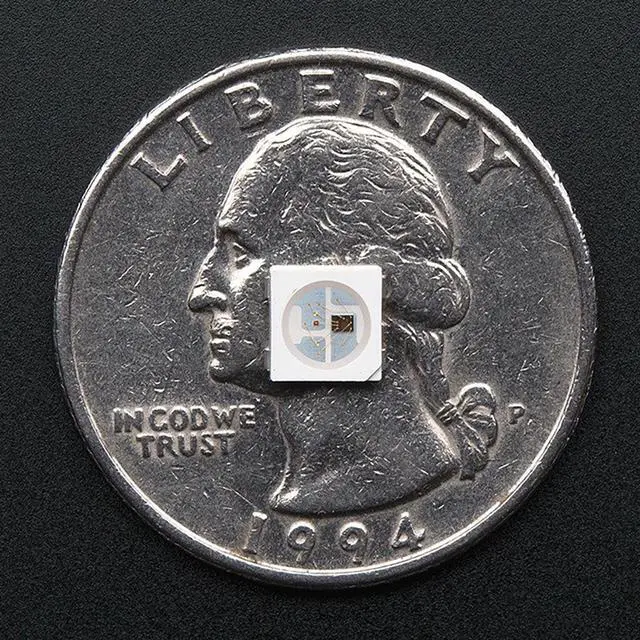

• Tiny 5050 (5mm x 5mm) RGB LED
• No external choke resistors are required

Make your own smart LED arrangement with the same integrated LED that is used in our NeoPixel strip and pixels. This tiny 5050 (5mm x 5mm) RGB LED is fairly easy to solder and is the most compact way possible to integrate multiple bright LEDs to a design. The driver chip is inside the LED and has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making your design minimal. Power the whole thing with 5VDC and you're ready to rock.

This is the 4 pin LED chip version, not 6. It is code compatible and the same over-all shape and functionality but not the same pinout so you cannot use these to replace an 'S chip.KEY_TAB

The LEDs are 'chainable' by connecting the output of one chip into the input of another - see the datasheet for diagrams and pinouts. To allow the entire chip to be integrated into a 6-pin package, there is a single data line with a very timing-specific protocol. Since the protocol is very sensitive to timing, it requires a real-time microcontroller such as an AVR, Arduino, PIC, mbed, etc. It cannot be used with a Linux-based microcomputer or interpreted microcontroller such as the netduino or Basic Stamp.KEY_TAB

Item Specifics
Weight: 1.12g
These raw LEDs are cut from a reel and/or might be loose.
They may not suitable for pick & place + reflow.
