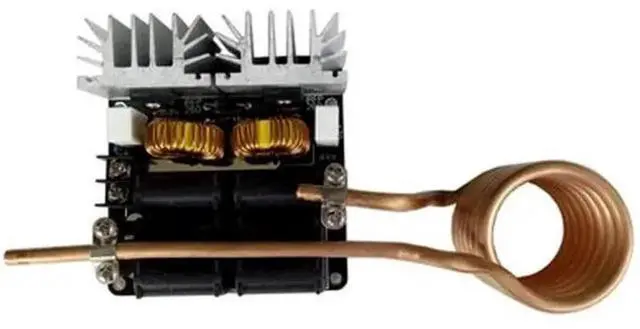

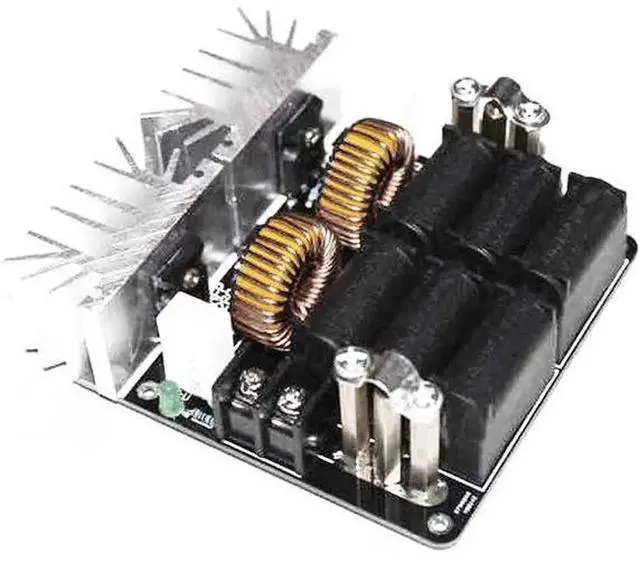

1000W ZVS Low Voltage High Frequency Induction Heating Board Module 12-48V with Coil
- 1000W ZVS Low Voltage High Frequency Induction Heating Board Module 12-48V with Coil
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
About this item
- The induction heating circuit uses 12-48V low-voltage DC power supply, the maximum input current is 20A, the short-term maximum power is 1000W, and the long-term working power is 500-800W.
- It can be used for DIY players to do heat treatment such as quenching and annealing for small parts (The diameter of the heating iron tube should not exceed 10mm).
- Three M4 copper columns in parallel; Brass connector; Large heatsink; 8.5mm thickness of Substrate.
- This circuit can directly heat iron, carbon steel, graphite, titanium alloy; Work with crucible can melt gold, silver, copper, aluminum.
- When the circuit is working, need to use fan to cool it down, and the copper tube must be cooled by water.
